20 Rittal Blue e+ fan-and-filter unit assembly and operating instructions
EN
Cut-out/drilling dimensions
11 Cut-out/drilling dimensions

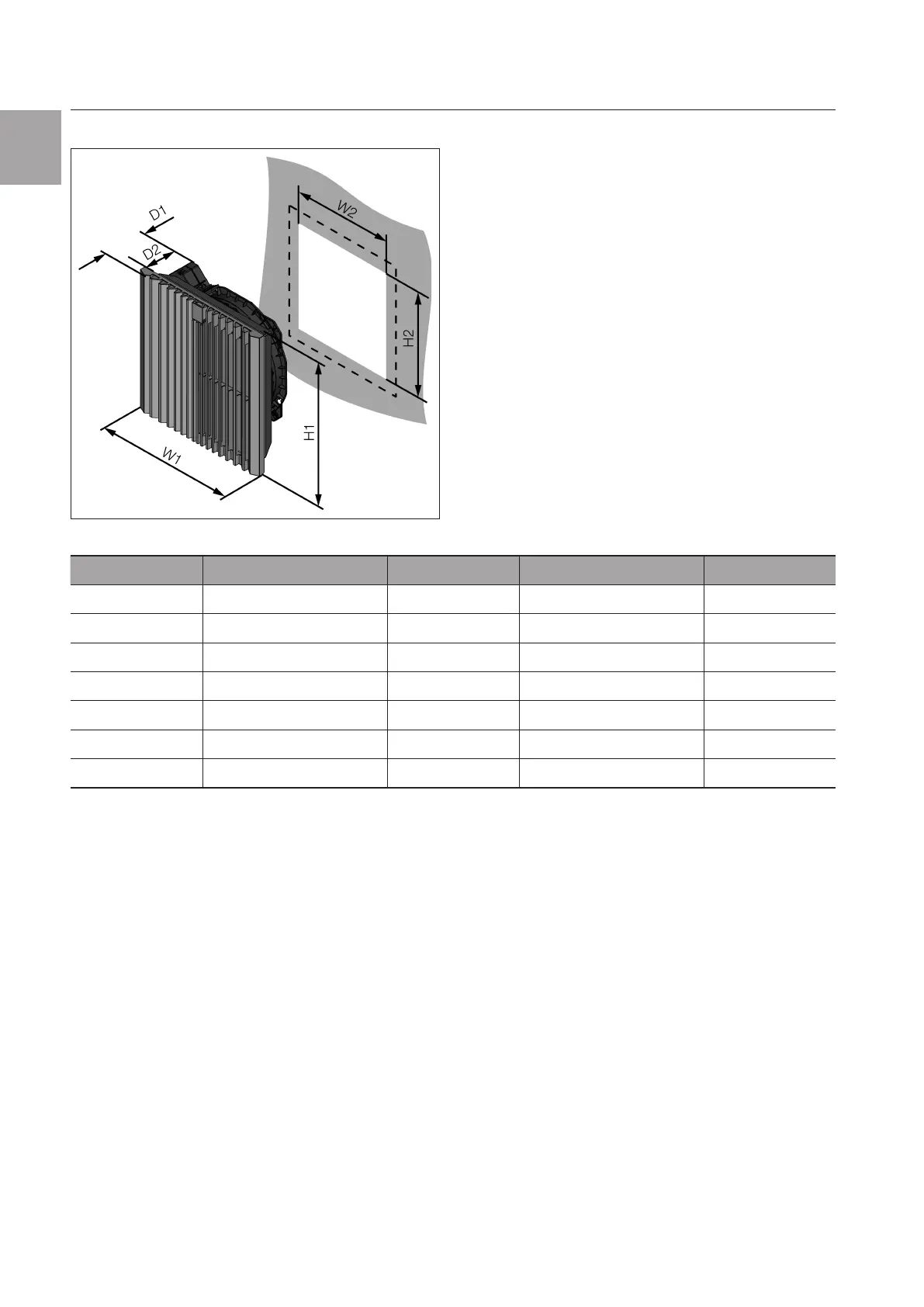

Fig.20: Cut-out dimensions
Model No. W1 x H1 mm D1 mm W2 x H2 mm D2 mm
3237.xxx 116.5 x 116.5 64.5 92 x 92 46
3238.xxx 148.5 x 148.5 82.5 124 x 124 64
3239.xxx 204 x 204 105 177 x 177 84
3240.xxx 255 x 255 129 224 x 224 108
3241.xxx 255 x 255 129 224 x 224 108
3243.xxx 323 x 323 144.5 292 x 292 124
3244.xxx 323 x 323 156 292 x 292 136
Tab. 10: Cut-out dimensions
