Rittal roof-mounted Blue e+ cooling unit/VX25 Blue e+ integration solution 17
3 Product description
EN
3.1.2 Components
Roof-mounted cooling unit Blue e+

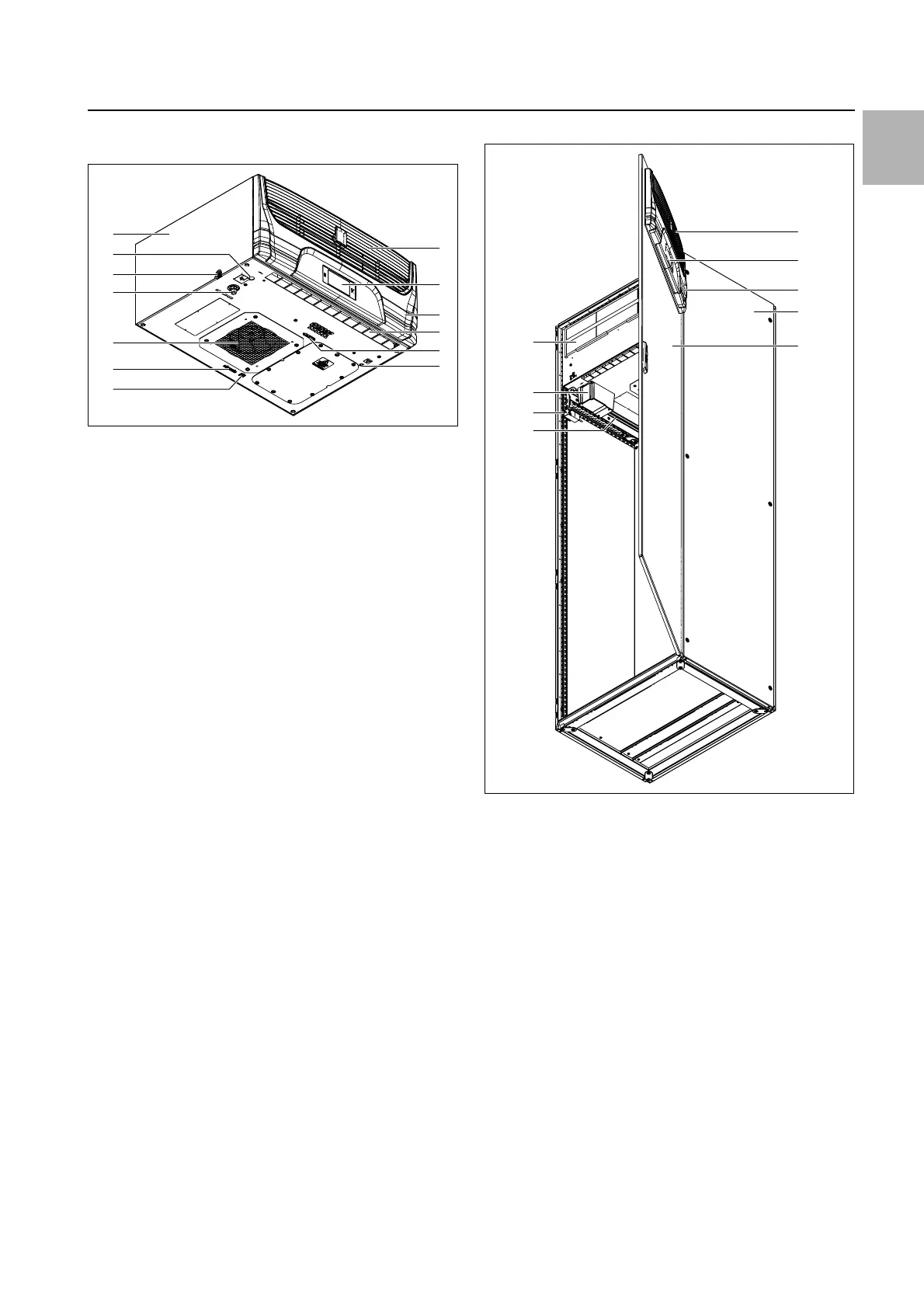

Fig. 2: Main components of root-mounted cooling unit
Key
1 Louvred grille
2Display
3 Infill panel
4 Air outlet opening (internal circuit)
5 Connection for mains connector (X1)
6 Connection point for potential equalisation
7 Connection for IoT interface (3124.300) (X3)
8 Connection for signal connector (X2)
9 Air inlet with evaporator fan (internal circuit)
10 Condensate water discharge below (closed with a bung)
11 Condensate water discharge at the side
12 Electrical condensate water evaporation connection
point (3355.720 accessory)
13 Housing
VX25 Blue e+ integration solution
Fig. 3: Main components of integration solution
Key
1 Louvred grille
2Display
3 Infill panel
4 VX25 enclosure
5 VX25 enclosure front door
6 Cooling unit support rails
7 Door limit switch
8 Electrical condensate water evaporation
9 Blue e+ cooling module
3.1.3 Control
Rittal enclosure cooling units are fitted with a controller
for setting the functions of the cooling unit.
Operation using this controller is described in section 7
"Operation".
3.1.4 Safety devices
– In the refrigerant circuit, the cooling units have a type-
tested pressure monitor (to EN 12263) which switches
off the cooling unit if the maximum admissible pres-
sure is exceeded. Once the pressure drops back be-
