Rittal roof-mounted Blue e+ cooling unit/VX25 Blue e+ integration solution 21
5 Installation
EN

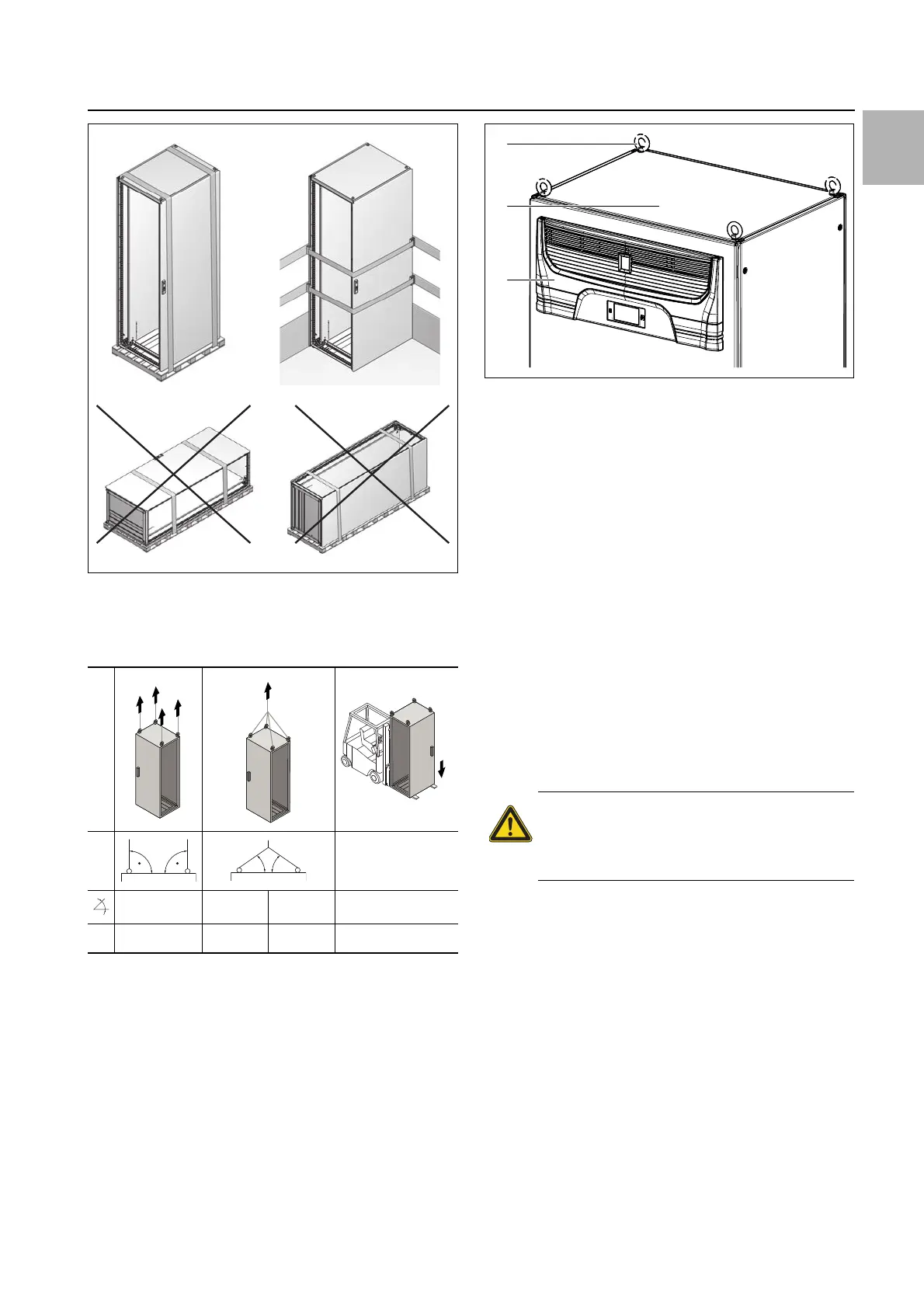

Fig. 5: Permitted and prohibited transport positions of the in-
tegration solution
Also observe the following details when lifting the inte-
gration solution.
The integration solution is delivered on a pallet.
Transport the integration solution still on the pallet us-
ing a floor conveyor, preferably a fork lift, to near the
final installation location.
Replace the four fastening screws of the roof plate
with the appropriate eyebolts with M12 thread.
Fig. 6: Eyebolts at the top of the enclosure
Key
1 Eyebolts (4x)
2Enclosure
3 Cooling module
Before transporting with a crane, ensure that the lifting
gear and the crane have sufficient load capacity to
transport the integration solution safely.
Never allow anyone to stand beneath a suspended
load, even for a short time, during transportation by
crane.
Protect the lifting gear on the crane hook from load de-
flection, because the load's centre of gravity may be
off-centre.
Place the integration solution at its final installation lo-
cation.
5 Installation
5.1 Safety instructions
90° 45° 60°
F 13,600 N 4,800 N 6,400 N Max. 15,000 N
Tab. 3: Brackets and payloads
F
Warning!
Please note the maximum weights that
may be lifted by individuals. It may be
necessary to use lifting gear.
