4 Transport and handling
EN
20 Rittal roof-mounted Blue e+ cooling unit/VX25 Blue e+ integration solution
 Check the supply contents for completeness (see sec-
tion 3.3 "Supply includes").
4.3 Transport
4.3.1 Roof-mounted cooling unit Blue e+
The cooling unit weighs 38 kg. The components in the
cooling unit chassis account for the bulk of the weight.
An M12 thread provided at the top of the chassis allows
a Rittal eyebolt (e.g. for an enclosure) to be screwed in.
The cooling unit is readily transported with the aid of lift-
ing gear and an indoor crane.

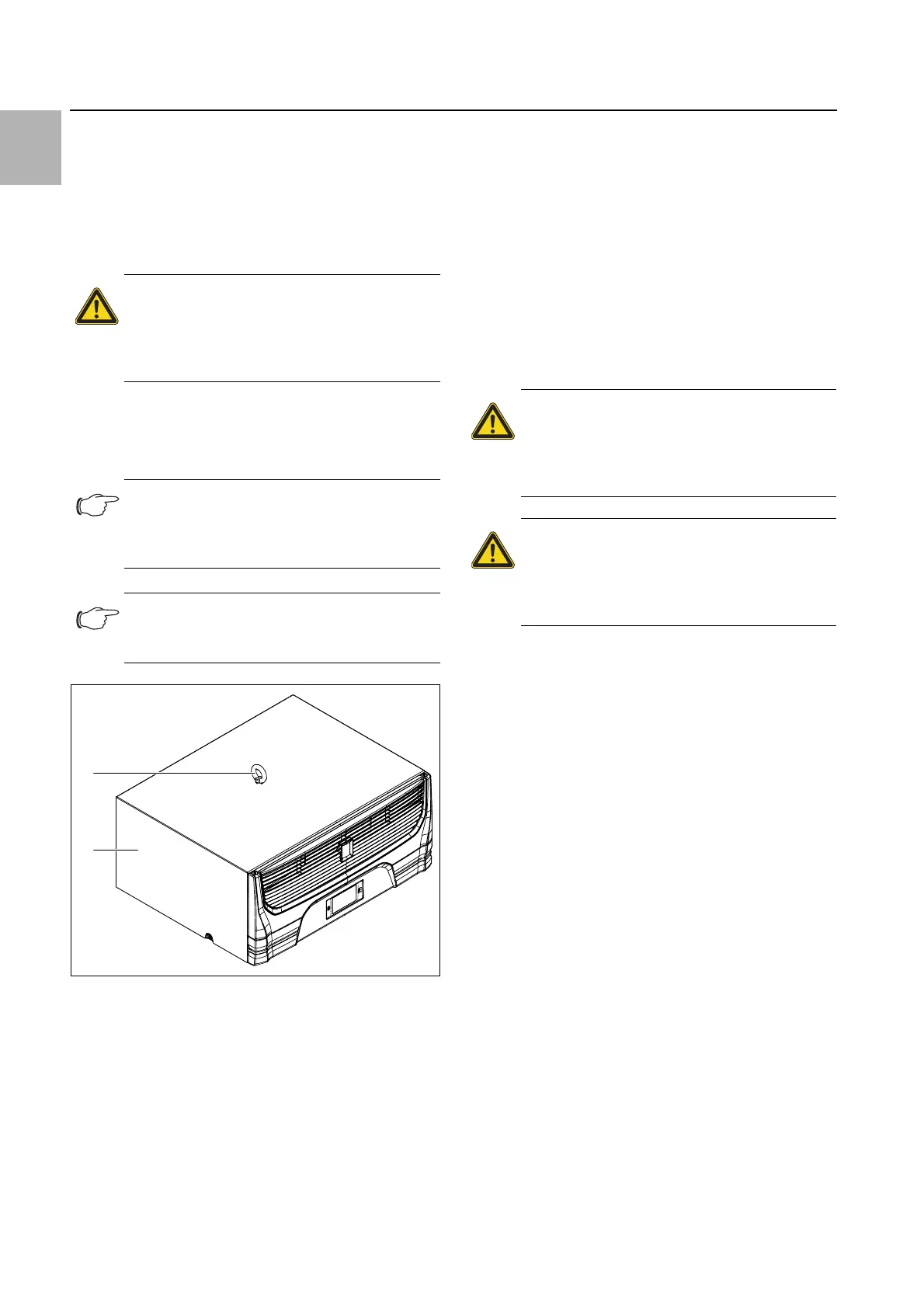

Fig. 4: Eyebolt on top of the chassis
Key
1Eyebolt
2 Cooling unit

Before transporting by crane, please ensure that the
lifting gear and crane have sufficient load capacity to
transport the cooling unit safely.
 Never allow anyone to stand beneath a suspended
load, even for a short time, during transportation by
crane.
 Protect the lifting gear on the crane hook from load de-
flection, because the load's centre of gravity may be
off-centre.
 First position the cooling unit close to the installation
site and protect from accidentally being knocked over.
 First position the cooling unit close to the installation
site.
4.3.2 Integration solution
The integration solution unit weighs 180 kg. The cooling
module in the upper area of the enclosure is the major
factor for the overall weight. The centre of gravity of the
integration solution is also located there, provided no
equipment has been installed in the enclosure.
The integration solution must be secured against tipping
during transport, assembly and configuration. If a base/
plinth system is deployed, during transport, also ensure
when raising and lowering that the load is always applied
at the base/plinth corner pieces and never at the base/
plinth trim panels. The VX 8618.410 shipping brace
must be used when parts heavier than 10 kg are mount-
ed in the door!
Warning!
Please note the maximum weights that
may be lifted by individuals. Lift the cool-
ing unit by two persons or, if necessary,
use lifting gear.
Note:
An eyebolt with M12 thread may be ordered
as an accessory from Rittal (see section 13
"Accessories").
Note:
The roof-mounted cooling unit may be trans-
ported only in a horizontal position.
1
2
Warning!
Risk of tipping caused by displacement
of the centre of gravity. Fasten the lifting
gear to the crane hook to prevent the
load from moving.
Warning!
Please note the maximum weights that
may be lifted by individuals. Always use
lifting gear for lifting and transporting
the integration solution.
