Rittal Blue e+ - Page 43

Rittal roof-mounted Blue e+ cooling unit/VX25 Blue e+ integration solution 43
11 List of spare parts
EN

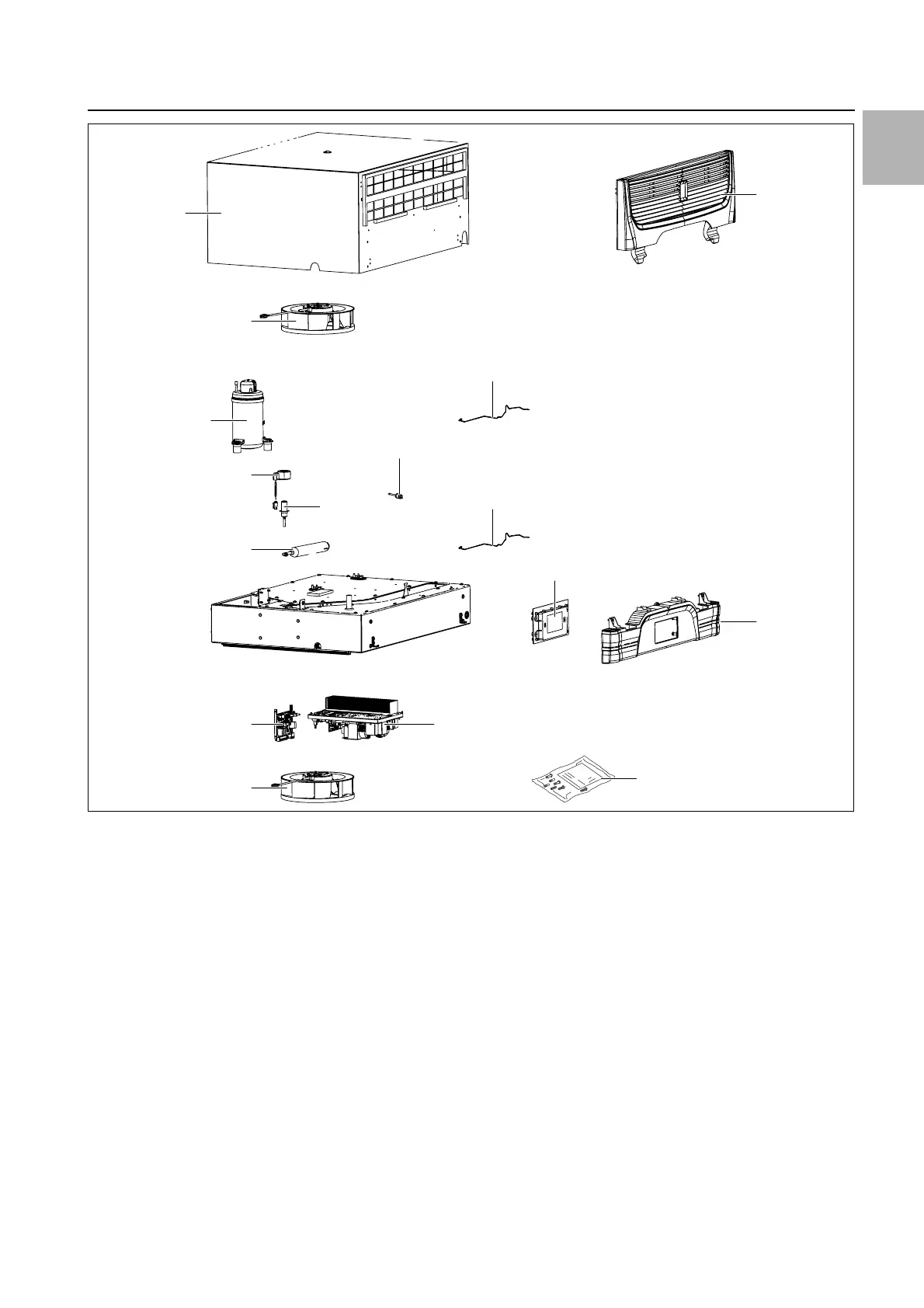

Fig. 28: Spare parts
Key
1 Compressor
5Condenser fan
10 Evaporator coil fan
15 Shipping bag as accessories bag (only for 3185730)
20 Expansion valve
21 Coil for expansion valve
25 Filter dryer
30 PSA
H
pressure-operated switch as pressostat
40 I/O-board
41 Inverter
45 Louvred grille
50 Infill panel
55 Display/controller
70 Temperature sensor kit
75 Cover
90 Evaporator coil
100 Condenser
101 Condensate water evaporator
102 Display cable
75
21
5
25
40
10
1
45
50
20
15
41
55
102
70
30
