Rittal Liquid Cooling Package 17
3 Device description
EN
– Use of replacement parts which are not authorised
by Rittal GmbH & Co. KG.
– Failure to observe the required water quality.
– Use of a coolant other than water.
– Expelling the cold air into an air duct system.
– Use in an industrial environment.
– Non-stationary use, e.g. on moving or vibrating ma-
chines.
3.5 Supply scope of a Liquid Cooling
Package
The Liquid Cooling Package supply includes:
Tab. 2: Supply scope of a Liquid Cooling Package
3.6 Unit-specific instructions
3.6.1 Creation of redundancy in the LCP Rack
Cooling redundancies are easily achieved via the pre-
viously described baying possibilities. Separation of
the server enclosure from the Liquid Cooling Package
makes it possible to achieve differing levels of redun-
dancy.

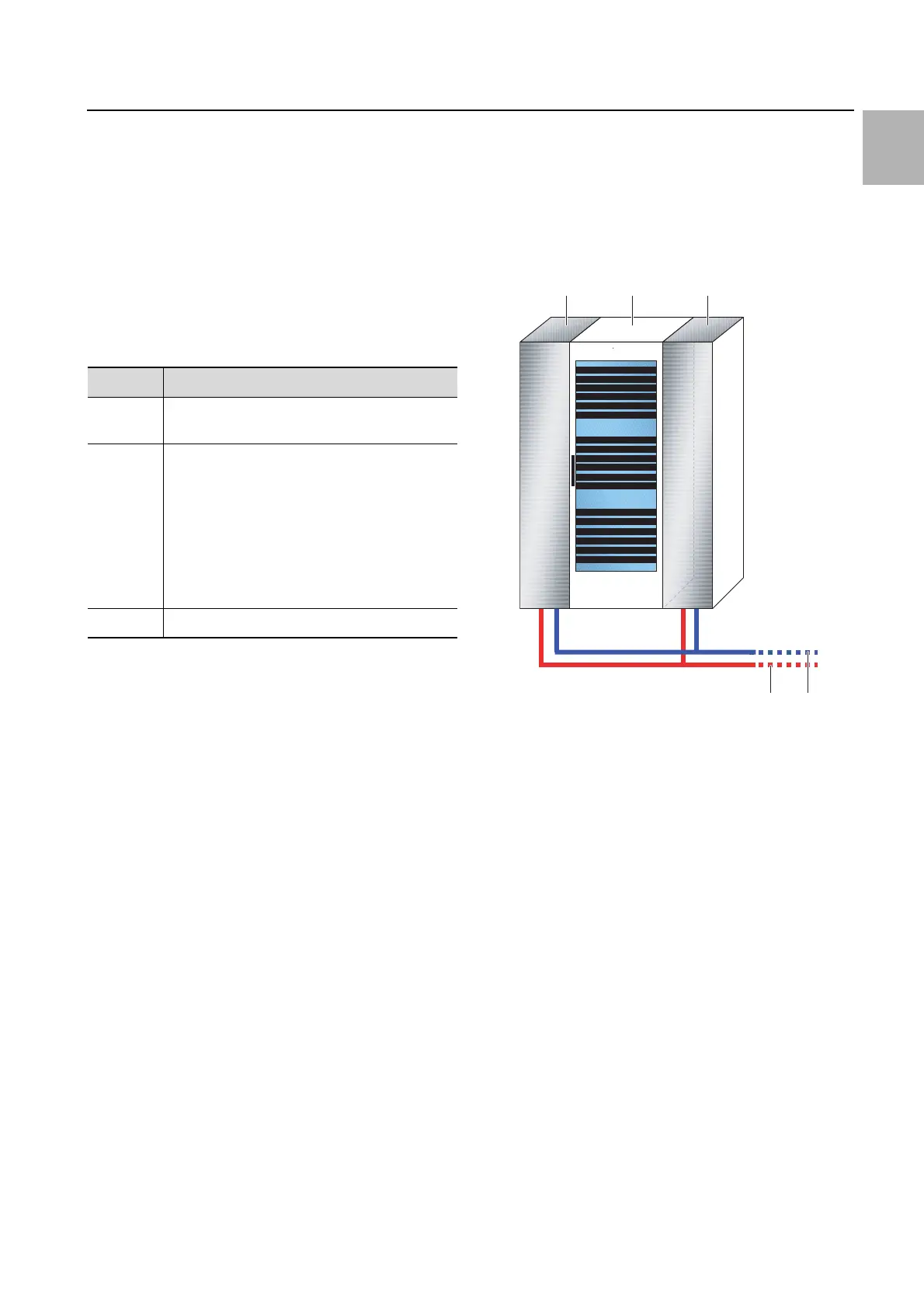

Fig. 17: Redundant or double cooling with two LCP Racks
Key
1LCPRack
2 Server enclosure
3 Cold water system inlet
4 Cold water system return
Two server enclosures may be cooled with 3 LCP
Racks. Depending on the cooling output, the device
bayed in the middle, between the server enclosures,
forms the redundancy for the respective left and right
server enclosure.
Qty. Parts
1 Liquid Cooling Package, ready for connec-
tion
Accessories:
1 Condensate hose
1Vent hose
2 Sealing strip
2 Cable ties and spreading anchors (strain re-
lief for connection cables)
1 Assembly instructions
34
211
