16 Further technical information
EN
78 Rittal Liquid Cooling Package

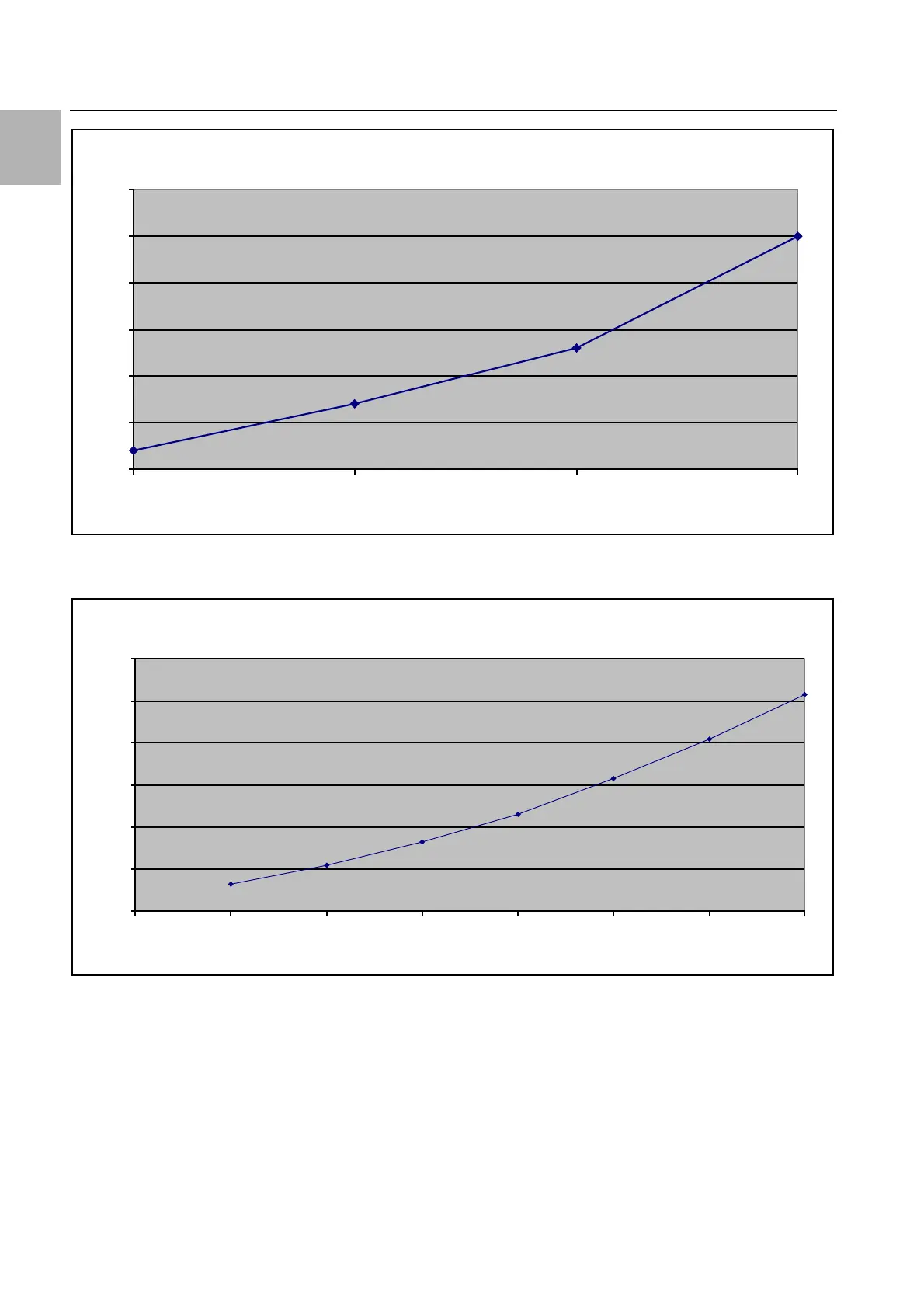

Fig. 84: Cooling output of the LCP Rack/Inline in the "60 kW" version with six fans
16.2.2 Pressure loss
Fig. 85: Pressure loss of the Liquid Cooling Package in the "30 kW" version
LCP Rack/Inline CW (3311.268/568) with 6 fans (15
ºC
water inlet)
30
35
40
45
50
55
60
80 (4.8) 100 (6) 120 (7.2) 140 (8.4)
Flow rate [l/min; (m³/h)]
Cooling output [kW]
Device pressure loss LCP Rack/Inline CW, 30 kW (3311.138/148/238/538/548)
0
0.2
0.4
0.6
0.8
1
1.2
0 20 (1.2) 30 (1.8) 40 (2.4) 50 (3) 60 (3.6) 70 (4.2) 80 (4.8)
Water flow rate [l/min; (m³/h)]
Pressure loss [bar]
