7. Working life

DeutschEnglishFrancaisEspanolItaliano

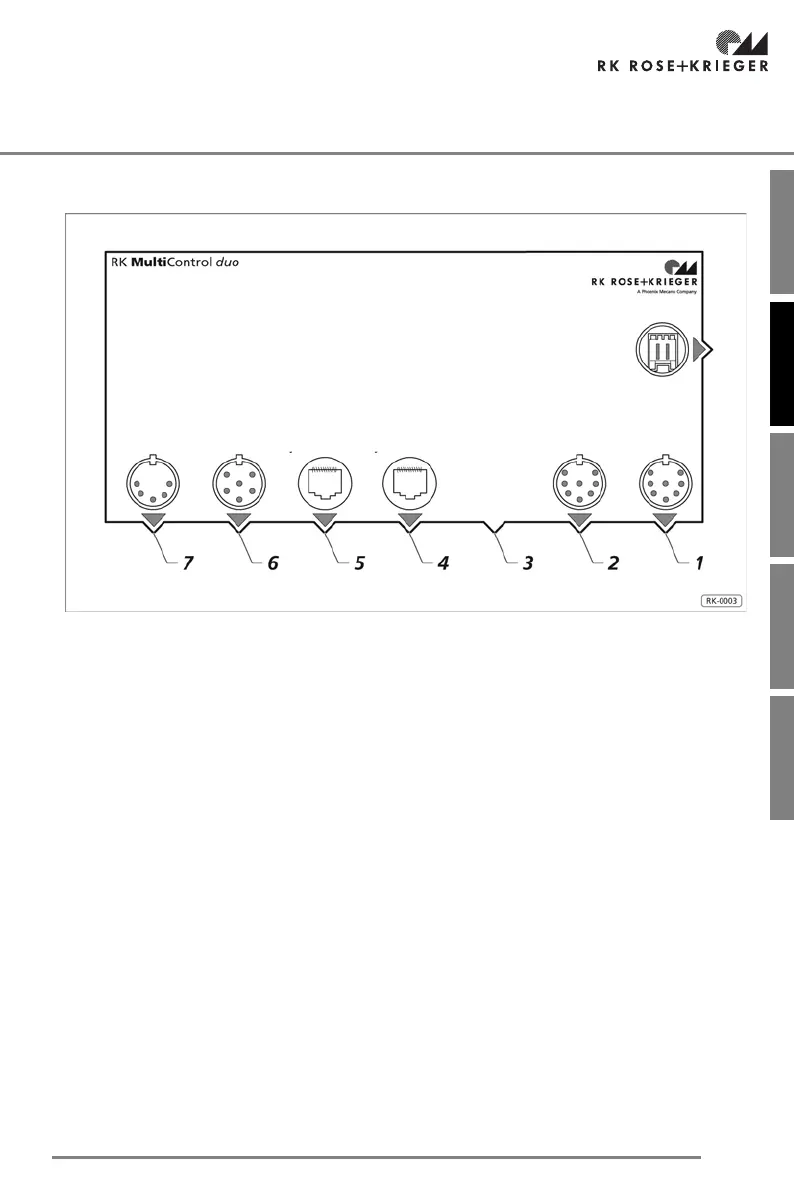

7.2.2 Pin assignment of the RKMultiControl duo

1 Socket for the first drive

2 Socket for the second drive

3spare

4 Connection socket for lead or plug

5 Connection socket for lead or plug

6 Socket for a serial hand switch (6-pin DIN plug to DIN 45322)

(6-key hand switch or base station for the 8-key wireless hand switch)

7 Socket for a parallel hand switch (5-pin DIN plug to DIN 41524)

(2-key hand switch)

parallel hand

switch

serial hand

switch

Synchro inter-

face

Synchro inter-

face

Drive 2 Drive 1

Battery socket

(optional)
