7. Working life
54

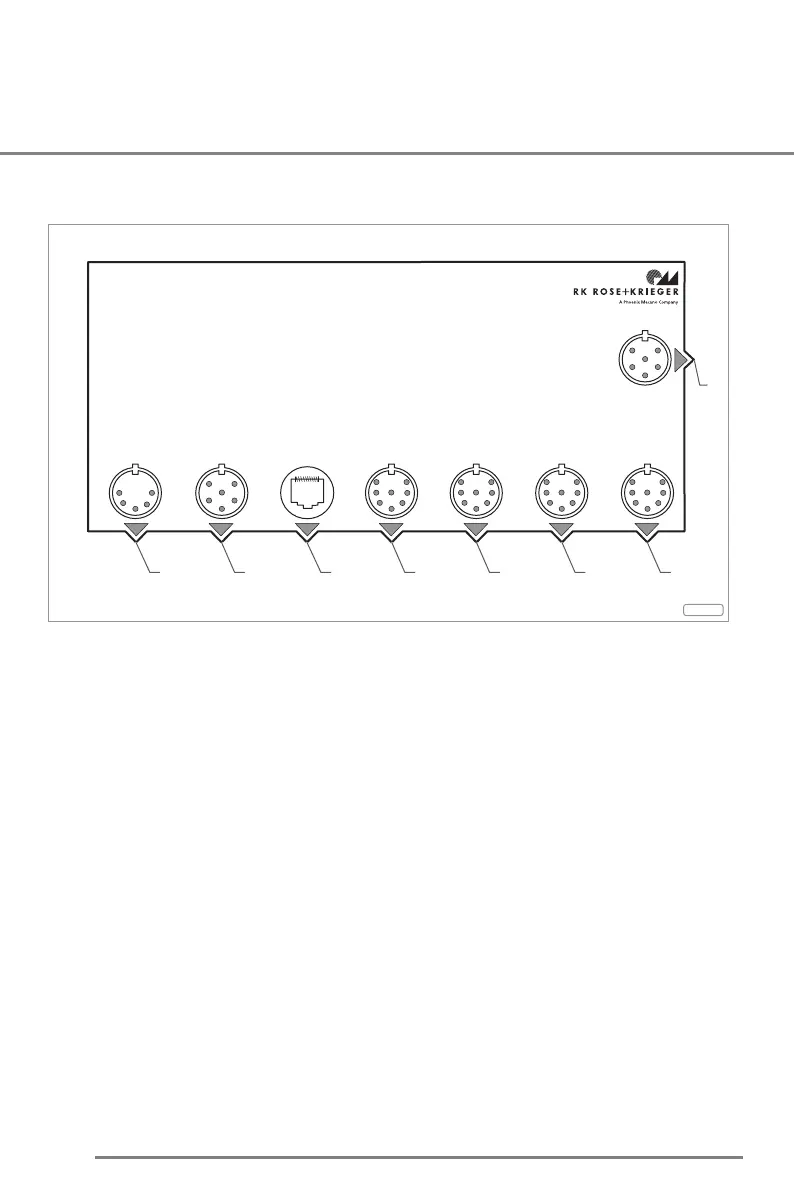

7.2.3 Pin assignment for the RKMultiControl quadro
RK-0096
RK Multi Control quadro
1 5 6 7 2 3 4
8
parallel hand
switch
serial hand
switch
Synchro inter-
face
Drive 2 Drive 1
Special function
Drive 3Drive 4
1 Socket for the first drive
2 Socket for the second drive
3 Socket for the third drive
4 Socket for the fourth drive
5 Connection socket for lead
6 Socket for a serial hand switch (6-pin DIN plug to DIN 45322)
(6-key hand switch or base station for the 8-key wireless hand switch)
7 Socket for a parallel hand switch (5-pin DIN plug to DIN 41524)
(2-key hand switch)
8 Socket for a special function (6-pin DIN plug according to DIN 45322)
