IMCB04-E10 1
1. TRANSFER TO MODE
Initialization is to set parameters relating to instrument specifications (input type, input range, alarm
type, etc.) and those relating to instrument characteristics (setting limiter, alarm differential gap, etc.).
1.1 Go to Initialization Mode
The section in each image of the controller shows the digits which are not high-lighted.
1. Turn on the power to this controller. The instrument goes to the PV/SV display after confirming
input type symbol and input range.
2. Press the SET key for two seconds to go to the Parameter Setting Mode from the PV/SV display.
For details on parameter setting mode, see the CB100/CB400/CB500/CB700/CB900
Instruction Manual (IMCB25-E).

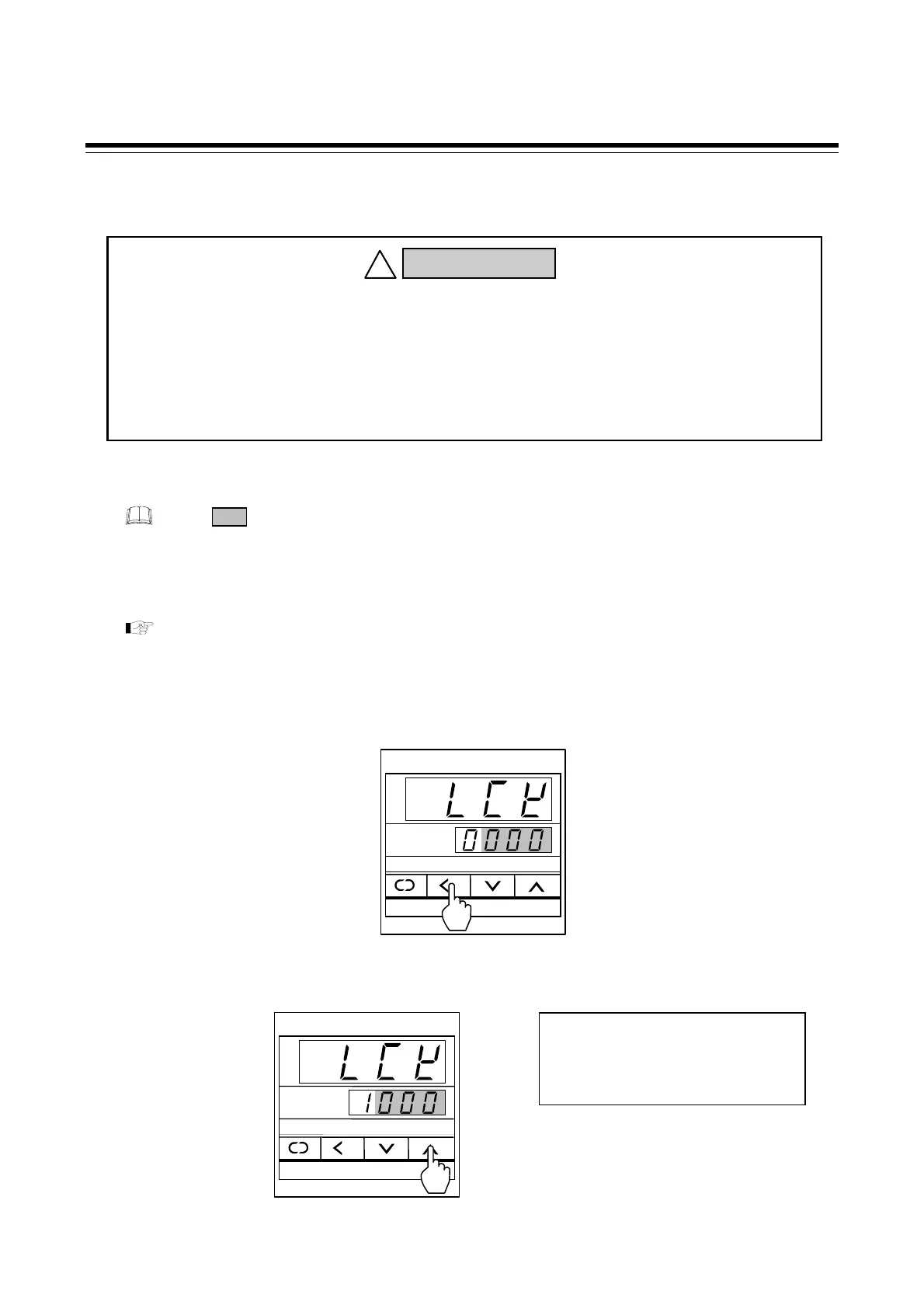

3. Press the SET key until “LCK” (Set Data Lock display) will be displayed.
4. The high-lighted digit indicates which digit can be set. Press <R/S key to high-light the thousands
digit.
5. Press the UP key to change 0 to 1.
R/S
SET
PV
SV
OUT1 ALM1 ALM2OUT2 AT
Set data lock function display
Set value
0 : Initialization mode locked
1 : Initialization mode unlocked
R/S
SET
PV
SV
OUT1 ALM1 ALM2OUT2AT
Set data lock function display
Parameters in the Initialization mode should be set according to the application
before setting any parameter related to operation. Once the Parameters in the
Initialization mode are set correctly, those parameters are not necessary to be
changed for the same application under normal conditions. If they are changed
unnecessarily, it may result in malfunction or failure of the instrument. RKC will
not bear any responsibility for malfunction or failure as a result of improper
changes in the Initialization mode.
WARNING
!
To Next Page
