RKC INSTRUMENT CB100 Initial Setting Manual

2. SETTING
IMCB04-E10
5
2.2 Procedure for Setting Each Parameter
 Example of changing the setting

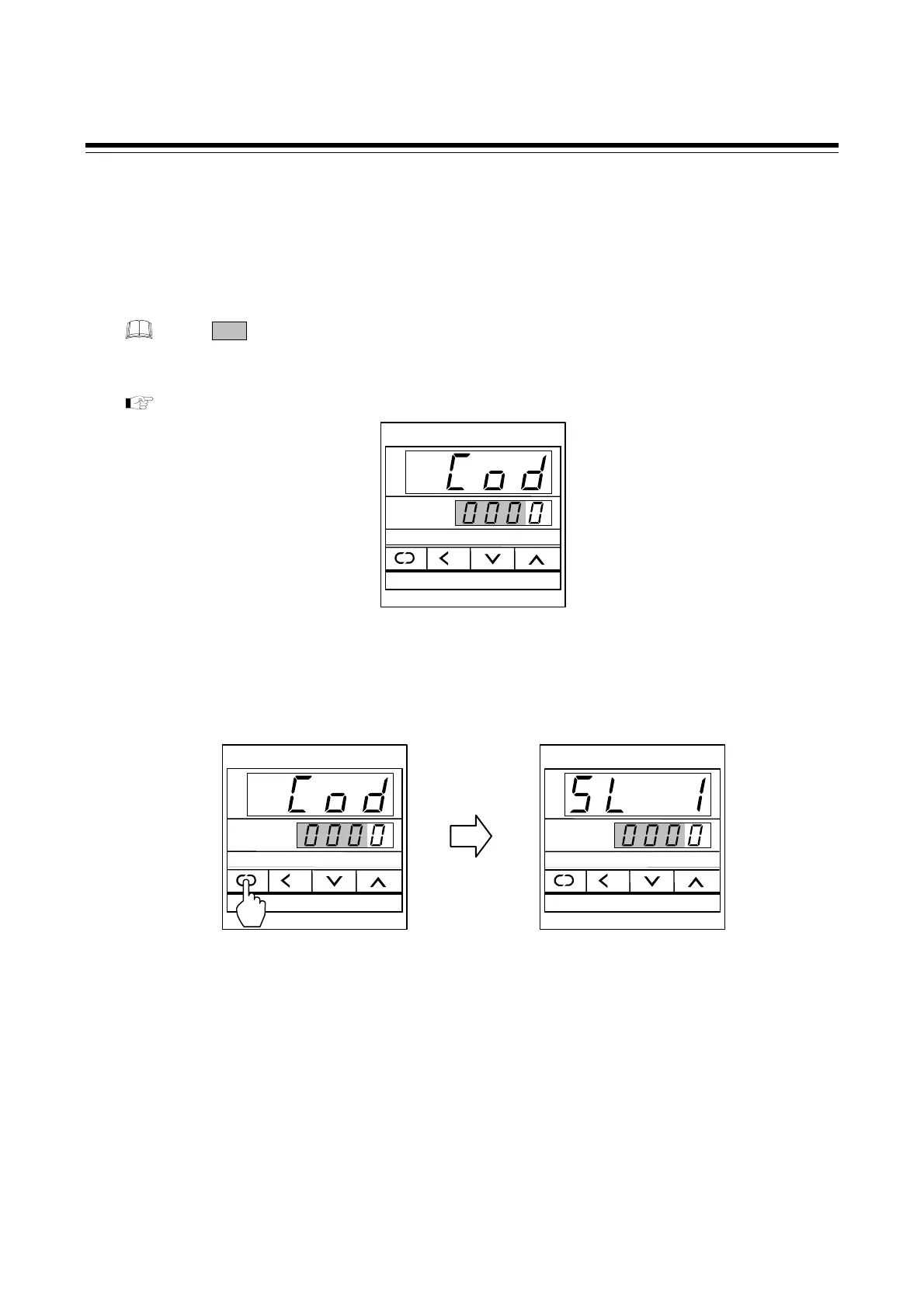

When the display unit shows SL1 (Input type selection) in initialize code 0, the following procedure is
for changing the input type from K to J.
The section in each image of the controller shows the digits which are not high-lighted.
1. Change the instrument to the initialize code selection display.
See 1.1 Transfer to Initialization Mode on page 1.
2. As SL1 belongs to the group of initialize code 0, do not change the initialize code (the units digit)
but press the SET key to change to SL1.
R/S
SET
PV
SV
OUT1 ALM1 ALM2OUT2AT
Initialize code selection display
Input type selection
R/S
SET
PV
SV
OUT1 ALM1 ALM2 OUT2AT
Initialize code selection display
R/S
SET
PV
SV
OUT1 ALM1 ALM2OUT2 AT
