Section 3 - A Frame Installation

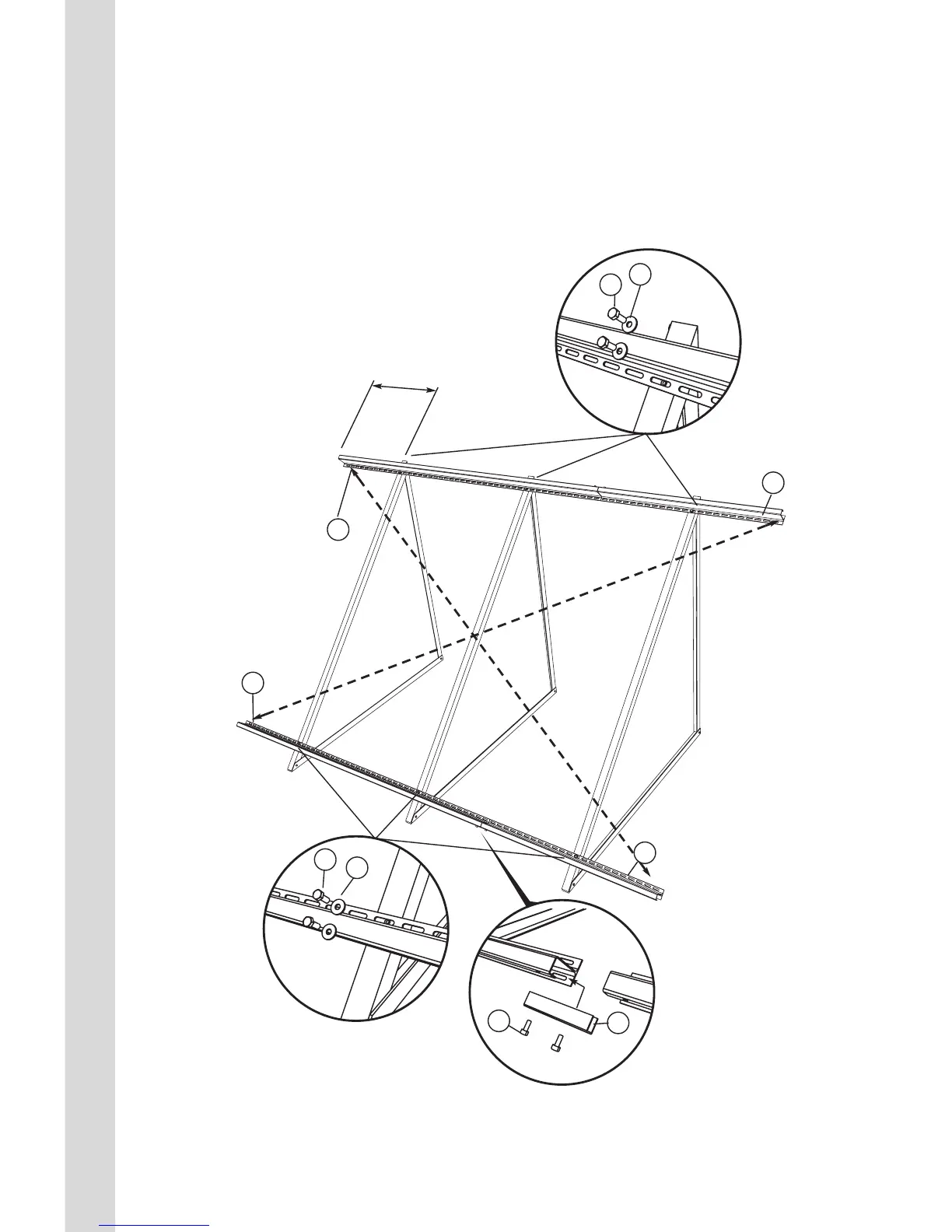

Mount the Z prole, the distance between the last triangle and the end of the Z rail must not be more
than 500mm. Pay attention that the triangles are aligned to each other. Use a string to check this,
the Z rails must be mounted without any tension. Check cross measurements (A=B). Mount frame
connectors if required.
