RNA ESR 3000 Series User Manual

Rhein-Nadel Automation GmbH 14
VT-BA-ESR-ESM3000-EN_2021.docx / 15 March 2021
Code C. 020, 096
Adjust maximum limitation
1. Adjust setpoint to ‘0’.
2. Set parameter ‘P.’ (maximum limit) to 10.
3. Adjust setpoint ‘A.’ to 100 %.
4. Increase ‘P.’ limitation from 10% until the maximum feed rate is reached.
5. Now you can use the complete setpoint range 0...100 %.
Sanftanlaufzeit
Sanftauslaufzeit
Betriebsmodus
P P
P
P
P
P
P
P
P
P
P
P
Schwingfrequenz [Hz]
Maximalbegrenzung 100...5 %
Förderleistung 0...100 %
F

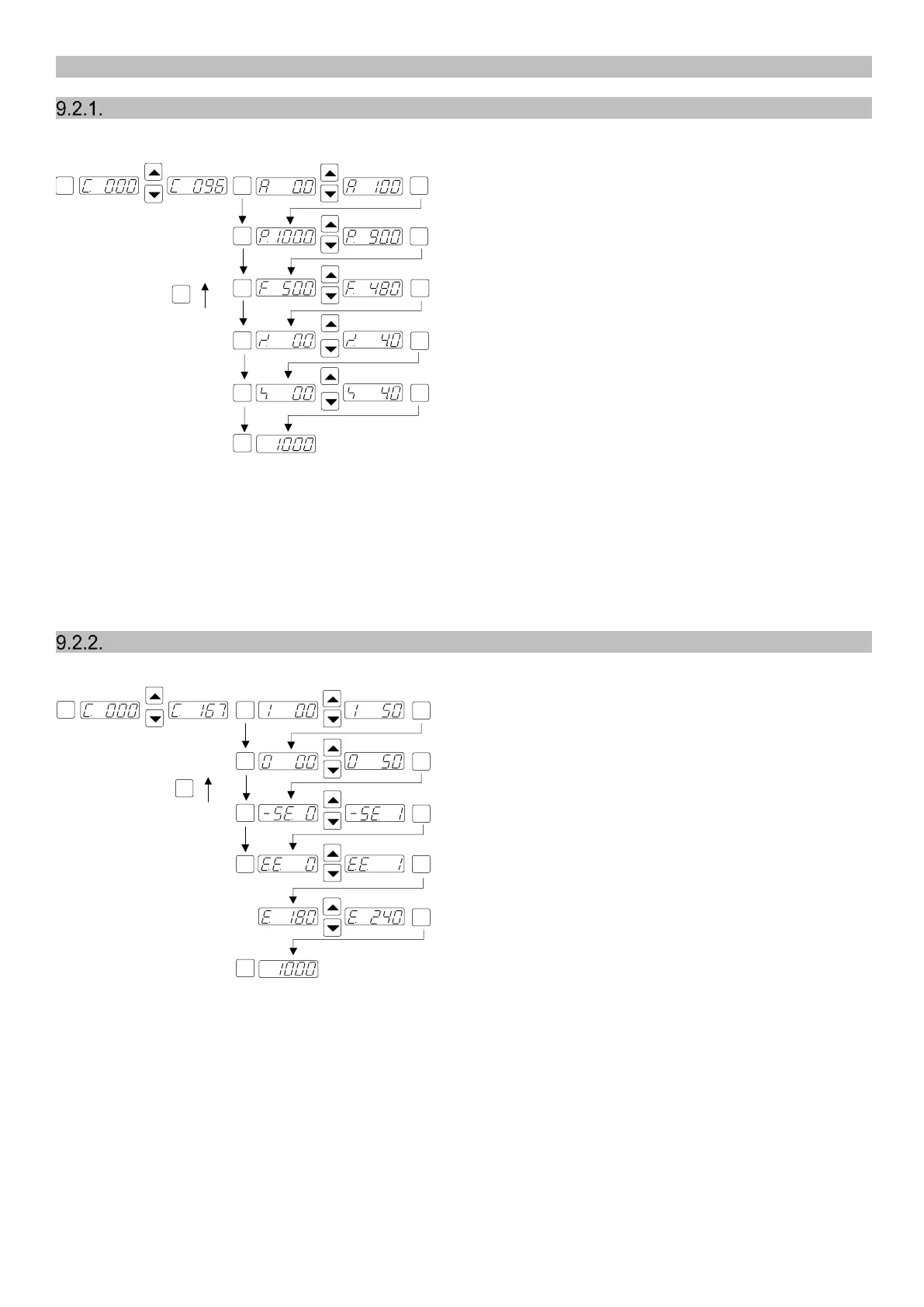

9.2. Adjustment to the feeder
Feeder settings
Level contro
Code C. 167, 007
Einschaltverzögerung
0...60 Sek.
Ausschaltverzögerung
0...60 Sek.
Betriebsmodus
Sensorfunktion invertieren
I = invertiert
P
P
P
P
P
P
P
P
F
0 = Störungszeit nicht aktiv
I = Störungszeit aktiv
E. = Sensor-Time-out Zeit [sek]
P P
P
Feed rate 0...100%
Maximum limitation 100...5 %
Vibrating frequency [Hz]
Soft start time
Soft stop time
Operating mode
ON delay
0...60 sec.
OFF delay
0....60 sec.
Invert sensor function
I = inverted
0 = fault time not active
I = fault time active
E = sensor timeout time (sec.)
Operating mode
