RNA ESR 3000 Series User Manual

Rhein-Nadel Automation GmbH 16
VT-BA-ESR-ESM3000-EN_2021.docx / 15 March 2021
Manual adjustment of the vibrating frequency
Be sure to adjust the output frequency with a low setpoint setting, as a high vibrating amplitude may occur
already at low output voltage when you hit the resonance frequency. To determine the resonance fre-
quency, an analog pointer-type r.m.s. current meter (moving iron measuring instrument) has to be con-
nected to the output line. The resonance frequency is reached at maximum vibrating amplitude and
minimum output current.
To obtain load-independent operation of the feeder, the set operating frequency must be 1 to 2 Hz
above or below the resonance frequency.
Code C. 040
Code C. 143
Code C. 210
Code C. 117
Betriebsmodus
P P
P
P
Aktueller Strom (nur Anzeige)
P
P
Aktuelle Frequenz (nur Anzeige)
Parameternummer 0...3 wählen
Betriebsmodus
P P
P
P
P
Parametersatz speichern
Werkseitige Einstellungen zurückladen
Betriebsmodus
Anwender-Parameter
zurückladen
P
P
P
P
P
P
Parameternummer 0...3 wählen
P
P
I= Menüs unsichtbar
P P
P
P
Betriebsmodus

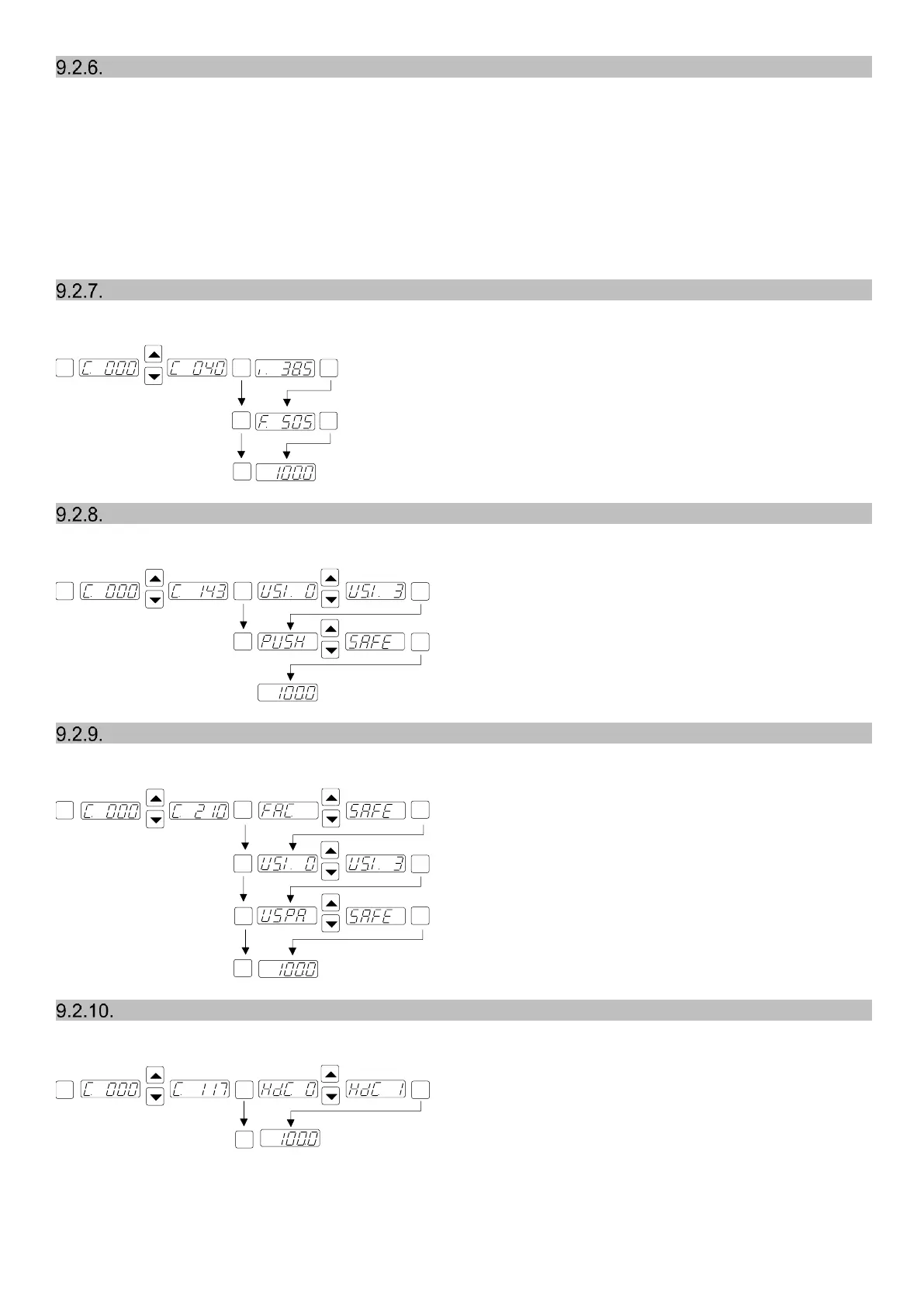

Determining the resonance frequency
Display the present frequency and current
Saving the set parameters (user)
Restore the factory (default setting) or user settings
Hide parameter set-up menus
Present current (only display)
Present frequency (only display)
Operating mode
Select parameter number 0...3
Save parameter set
Operating mode
Restore factory settings
Select parameter number 0...3
Restore user parameters
Operating mode
I= menus hidden
Operating mode
