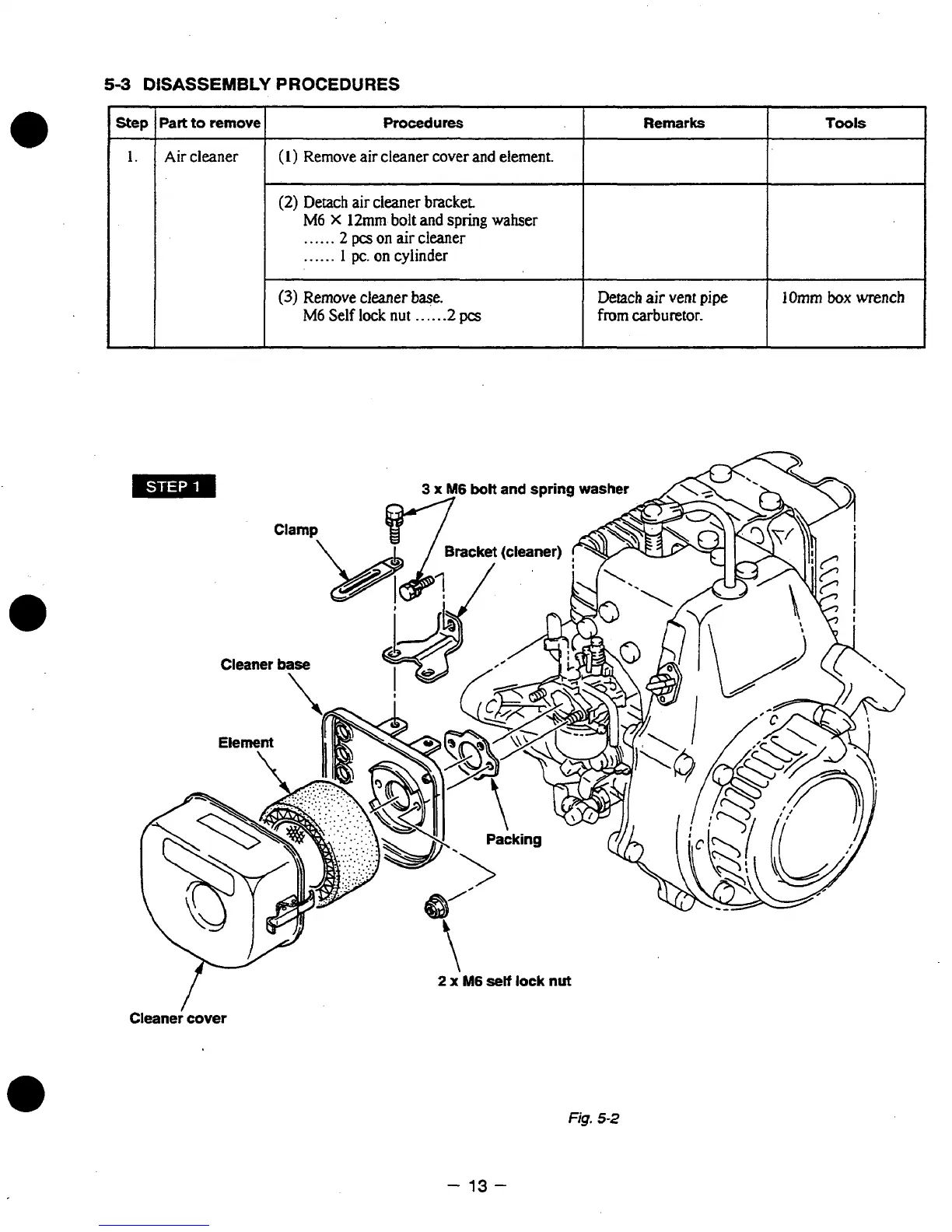

53 DISASSEMBLY PROCEDURES
Step
Tools Remarks Procedures
Part to remove
1 1. 1 Air cleaner 1 (1) Remove air cleaner cover and element. 1
I
(2) Detach air cleaner bracket
M6 X 12mm bolt and spring wahser
...... 2 pcs on air cleaner
...... 1 pc. on cylinder
I I
(3) Remove cleaner base.
lOmm box wrench
Detach air vent pipe
M6 Self lock nut ..... -2 pcs from carburetor.
I I
1
Cleaner cover
Fig. 5-2
- 13-
