8.
MAGNETO
EC12
engine is equipped with
a
pointless Solid State Ignition system. This is a circuit breaker type
ignition divice which utilizes the power transister as an element for controlling electric unit.
This
system' is free from start-up failure due to dirty,
burnt
or
oxidized point surfaces, low ignition
efficiency because
of
moisture, rough breaker point surface and incorrect timing resulting from worn
mechanical parts.
8-1
OPERATION
OF
ME
IGNITION
SYSTEM
This
system is referred
as
T.C.I.
(Transistor Controlled Ignition) system.

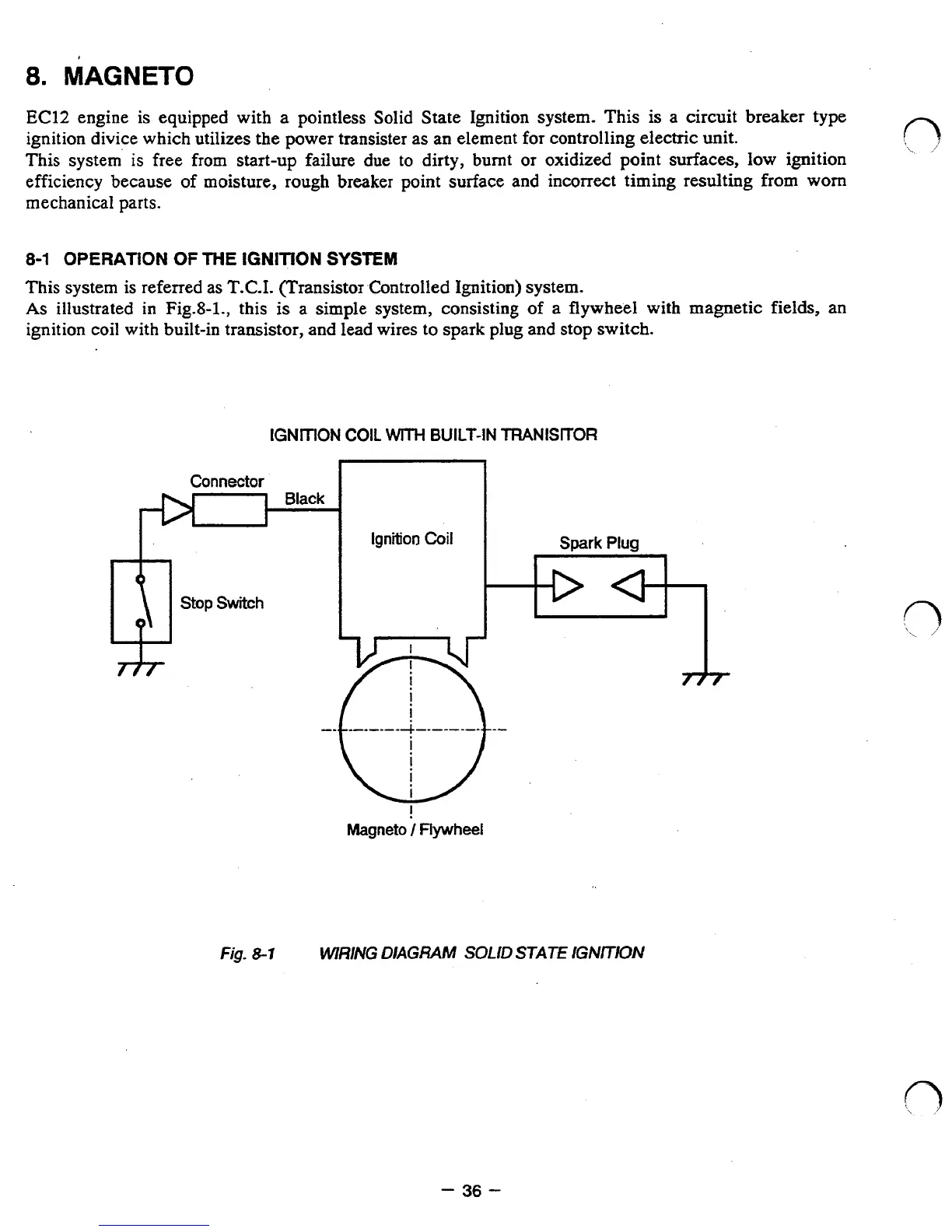

As
illustrated
in
Fig.S-l.,
this
is
a simple system, consisting
of
a flywheel with magnetic fields,
an
ignition coil with built-in transistor, and lead wires to spark
plug
and stop switch.
IGNITION
COIL
WITH
BUILT-IN TRANISITOR
Connector
Black
al
Stop
Switch
Ignition
Coil
1
Spark
Plug
k
TST
Magneto
;
Flywheel
Fig.
&I
WRING
DIAGRAM
SOLID
STATE
IGNITION
n
,.,
/
-
36
-
