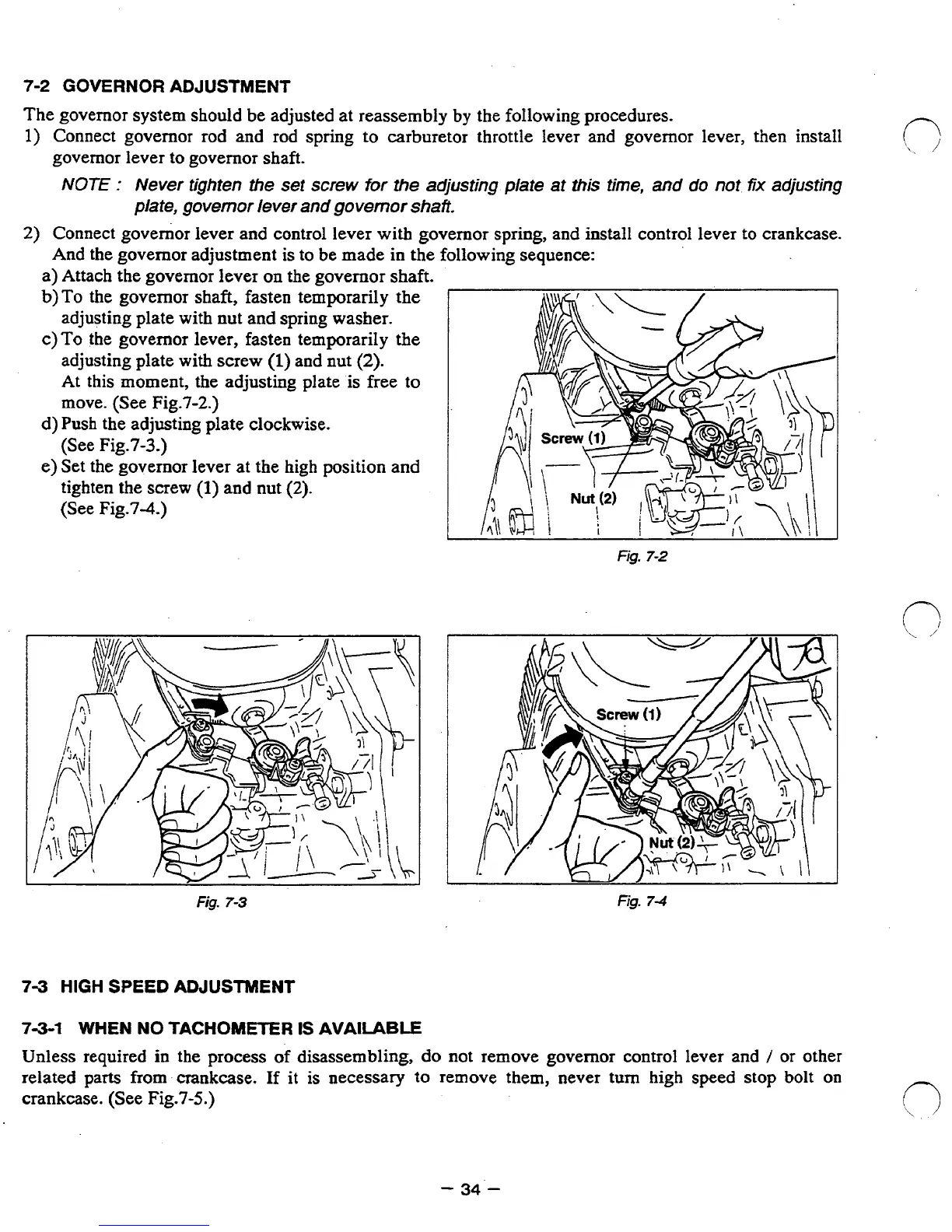

7-2
GOVERNOR ADJUSTMENT
The
governor system should be adjusted
at
reassembly
by
the following procedures.
1)
Connect governor rod and rod spring to carburetor throttle lever and governor lever, then install
NOTE
:
Never tighten
the
set screw for the adjusting plate
at
this
time,
and do
not
fix
adjusting
2)
Connect govemor lever and control lever
with
governor spring, and install control lever to crankcase.
governor lever to governor shaft.
plate, governor lever
and
governor
shaft.
And the governor adjustment
is
to be made in the following sequence:
a)
Attach the governor lever
on
the governor shaft.
b)To the governor shaft, fasten temporarily the
adjusting plate with nut and spring washer.
c)To
the governor lever, fasten temporarily
the
adjusting plate with screw
(1)
and nut
(2).
At
this
moment, the adjusting plate is free to
move. (See Fig.7-2.)
(See Fig.7-3.)
tighten the screw
(1)
and nut
(2).
(See Fig.7-4.)
d)
Push
the adjusting plate clockwise.
e)
Set the governor lever
at
the high position and
fig.
7-2
/
Fig.
7-4
7-3
HIGH
SPEED
ADJUSTMENT
7-3-1
WHEN
NO
TACHOMETER
IS
AVAILABLE
Unless required
in
the process
of
disassembling,
do
not remove governor control lever and
/
or
other
related parts from.
crankcase.
If it is necessary
to
remove them, never turn high speed stop bolt on
crankcase. (See
Fig.7-5.)
-
34
-
