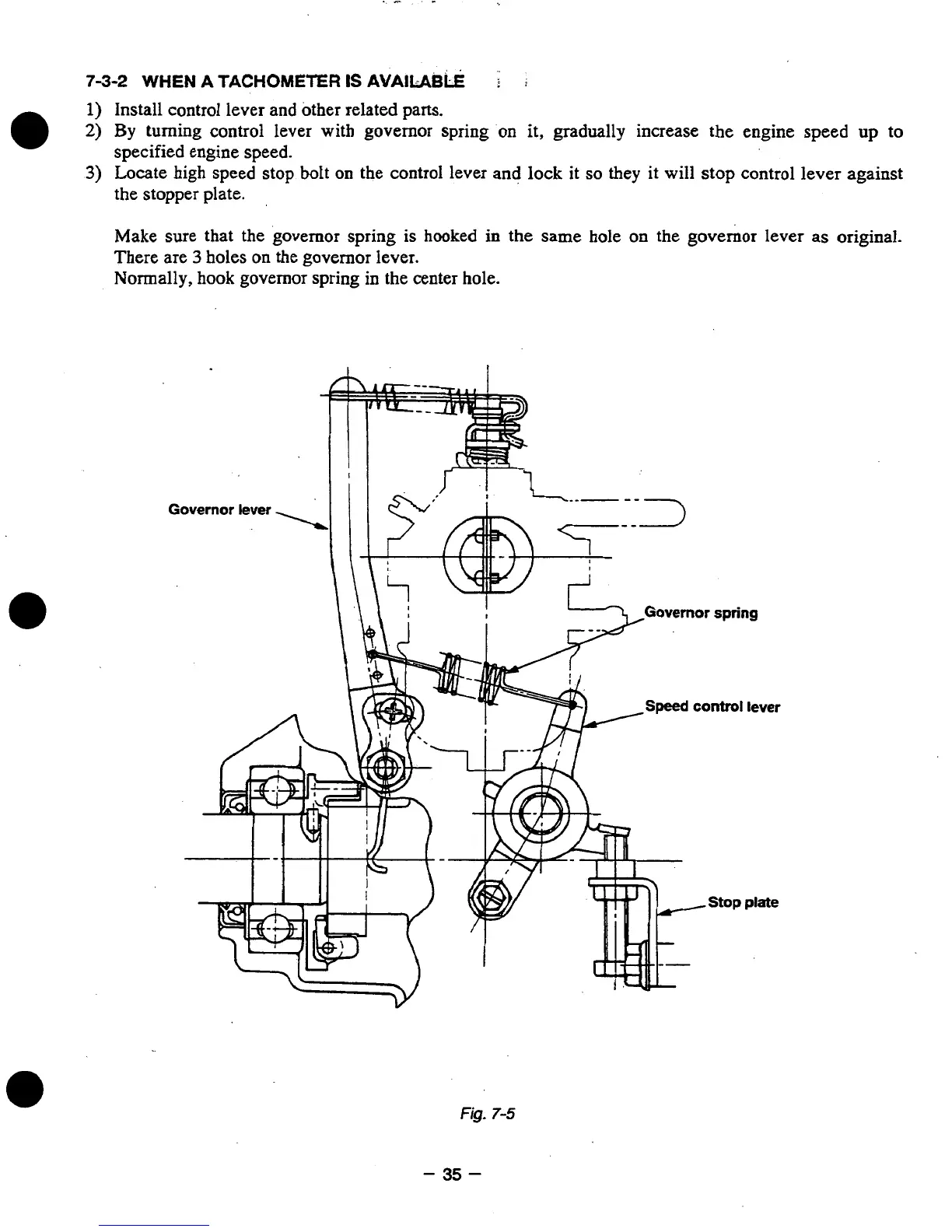

7-3-2
WHEN
A
TACHOMETER
IS AVAIL;;ABI;E
i
1)
Install control lever and other related parts.
2)
By
turning control lever with governor spring
on
it, gradually increase the engine speed up
to
3)
Locate high speed
stop
bolt
on
the control lever and lock it
so
they it will stop control lever against
specified engine speed.
the stopper plate.
Make sure that the governor spring
is
hooked
in
the same hole
on
the governor lever
as
original.
There are
3
holes
on
the governor lever.
Normally, hook governor spring in the center hole.
Governor
lever
"-
"
Speed
control
lever
Fig.
7-5
-
35
-
