Robin EC12 User Manual

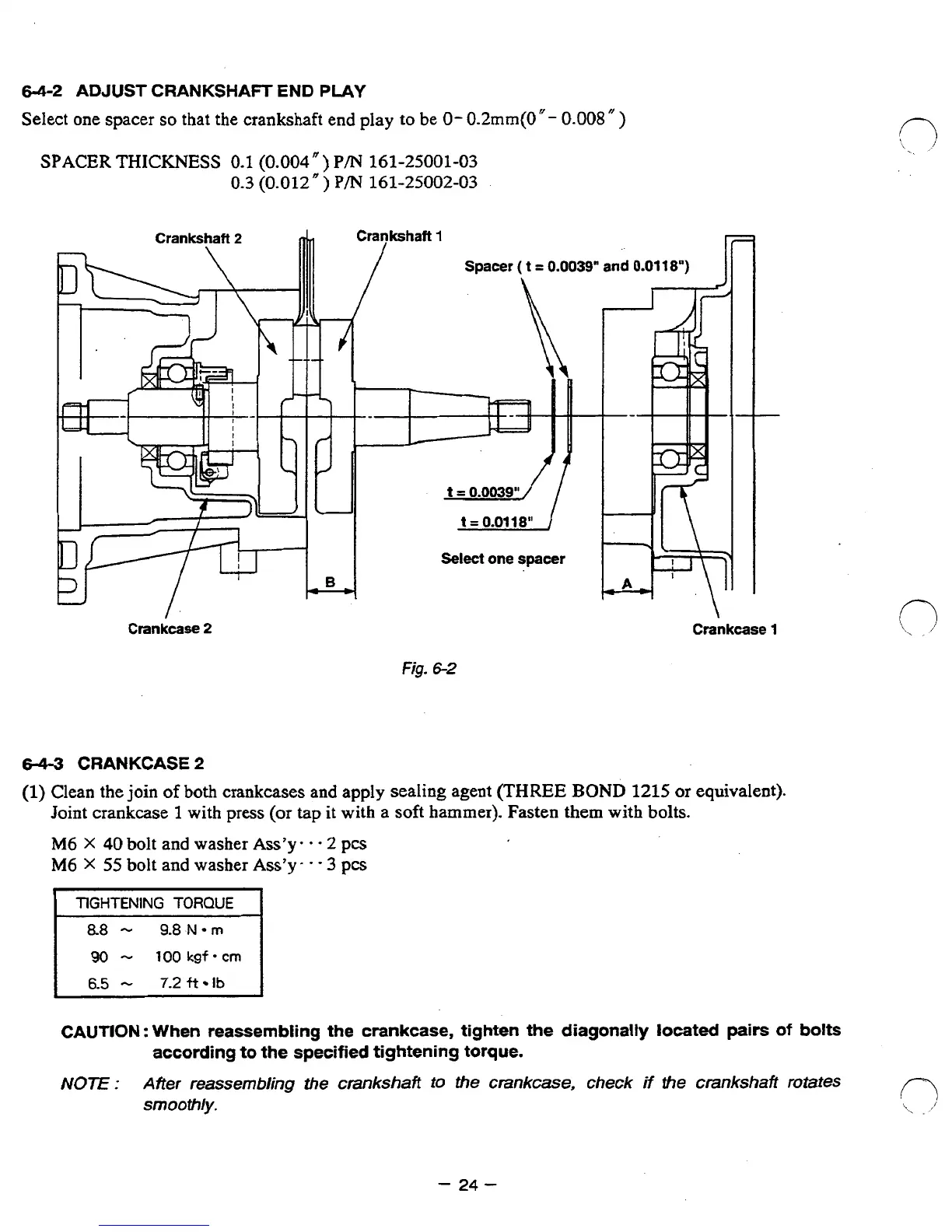

6-4-2 ADJUST CRANKSHAFT END PLAY
Select one spacer so that the crankshaft end play to be 0- 0.2mm(0”- 0.008 ’ )
SPACER THICKNESS 0.1 (0.004” ) P/N 161-25001-03
0.3 (0.012” ) P/N 161-25002-03
Crankcase 2 Crankcase 1
Fig. 6-2
6-44 CRANKCASE 2
(1) Clean the join of both crankcases and apply sealing agent (THREE BOND 1215 or equivalent).
Joint crankcase 1 with press (or tap it with a soft hammer). Fasten them with bolts.
M6 X 40 bolt and washer Ass’y. * * 2 pcs
M6 X 55 bolt and washer Ass’y- - - 3 pcs
88 -
9.8 N m
90 -
100 kgfocm
6.5 -
7.2 ft Ib
CAUTION :When reassembling the crankcase, tighten the diagonally located pairs of bolts
according to the specified tightening torque.
NOTE : After reassembling the crankshaft to the crankcase, check if the crankshaft rotates
smoothly. 0 ‘\ . ’
- 24 -
