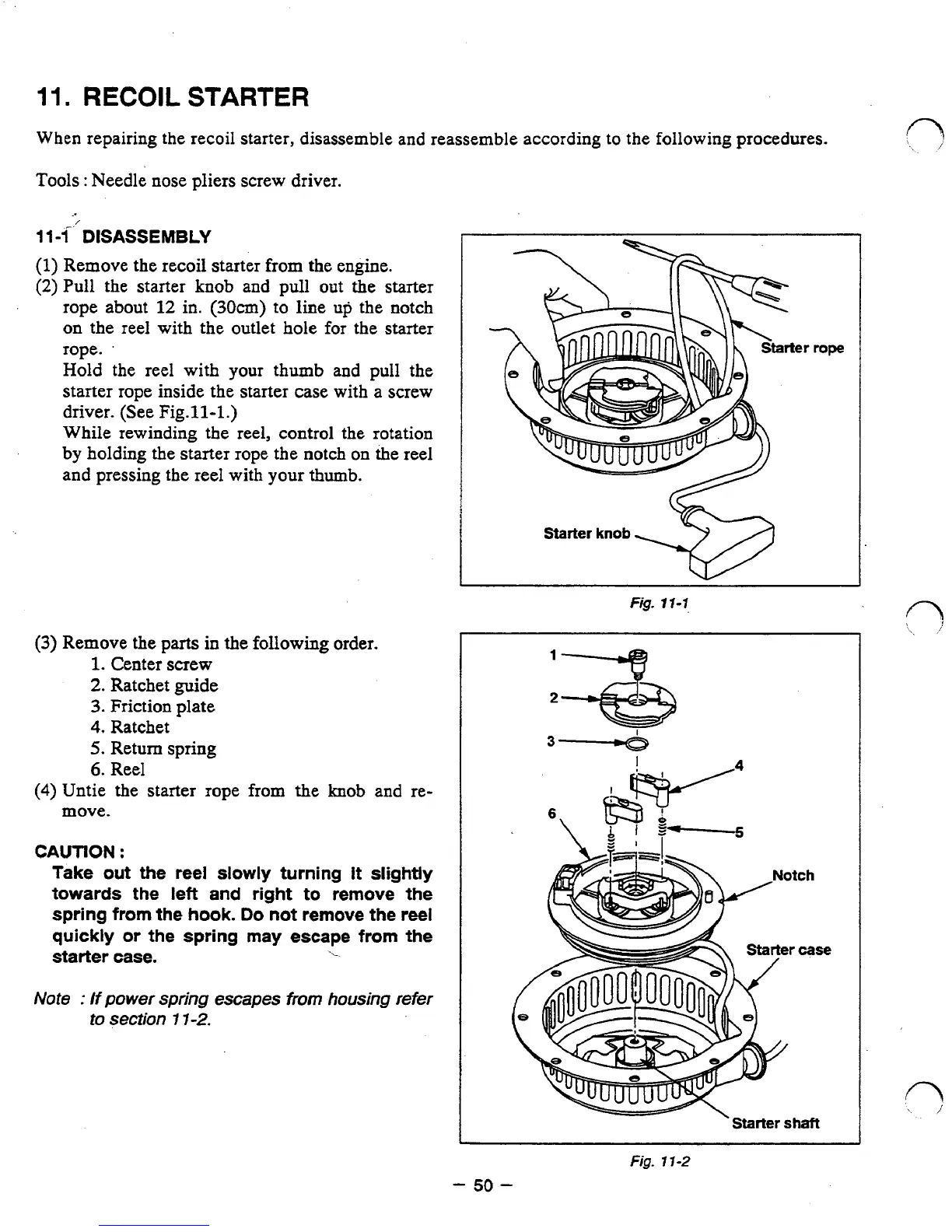

11
-
RECOIL
STARTER
When
repairing the recoil starter, disassemble and reassemble according
to
the following procedures.
Tools
:
Needle nose pliers screw driver.
I
1
-{,'DISASSEMBLY
(1) Remove the recoil starter
from
the engine.
(2) Pull the starter
knob
and
pull
out the starter
rope
about
12
in.
(30cm)
to
line
up
the notch
on
the reel with the outlet hole
for
the starter
rope.
.
Hold the reel with your thumb and pull the
starter rope inside the starter case with a screw
driver. (See Fig.11-1.)
While rewinding the reel, control the rotation
by
holding the starter rope the notch
on
the reel
and pressing the reel with your
thumb.
(3)
Remove the
parts in
the
following
order.
1.
Center
screw
2.
Ratchet guide
3.
Friction plate
4.
Ratchet
5.
Return spring
6.
Reel
(4)
Untie the starter rope from the
knob
and re-
move.
CAUTION
:
Take
out
the reel
slowly
turning it slightly
towards the
left
and
right
to
remove
the
spring
from
the
hook.
Do
not
remove
the reel
quickly
or
the
spring
may
escape
from
the
starter
case.
i
Note
:
If
power
spHng
escapes
from
housing
refer
to
section
1
1-2.
Fig.
11-1
1
2
I
3-
Fig.
1
1-2
-
50
-
