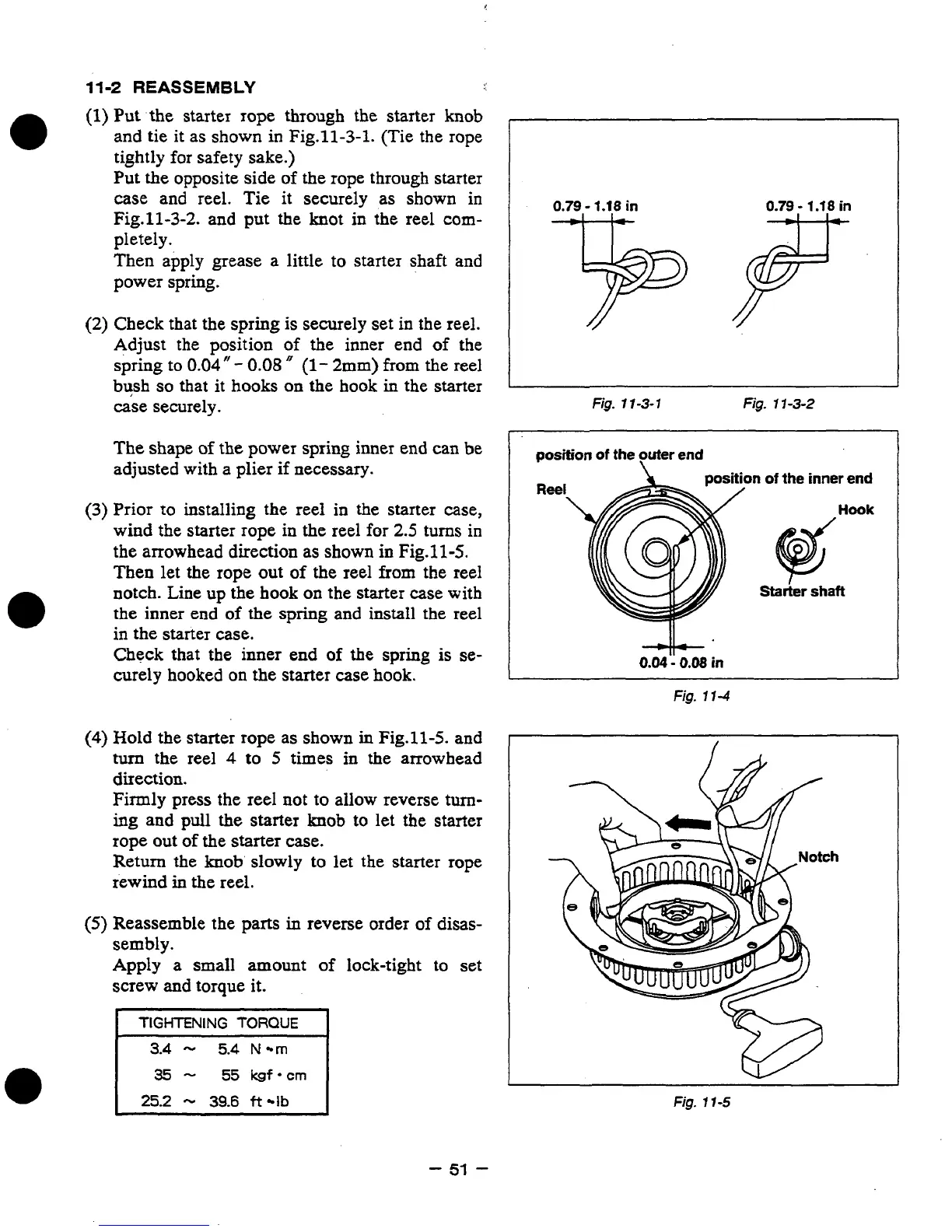

11-2
REASSEMBLY
(1)
Put
the starter rope through the starter
knob
and tie it as
shown
in
Fig.11-3-1. (Tie the rope
tightly for safety sake.)
Put
the opposite side of the rope through starter
case and reel. Tie it securely as shown
in
Fig.11-3-2.
and put the knot
in
the reel
com-
pletely.
Then apply grease a little to starter shaft and
power spring.
(2)
Check that the spring
is
securely
set
in
the reel.
Adjust the position
of
the inner end
of
the
spring to
0.04
”
-
0.08
(1-
2mm)
from
the reel
bush
so
that
it
hooks
on
the hook
in
the starter
case securely.
The
shape
of
the power
spring
inner end can
be
adjusted with a plier
if
necessary.
(3)
Prior
to
installing
the
reel
in
the
starter case,
wind
the
starter rope in the reel for
2.5
turns
in
the arrowhead direction as
shown
in Fig.11-5.
Then let the
rope
out
of
the reel
from
the
reel
notch. Line up the
hook
on
the
starter case with
the
inner end
of
the
spring
and instal the reel
in the starter case.
Check that the inner end
of
the
spring
is
se-
curely hooked
on
the starter case
hook.
I
0.79
-
1.18
in
0.79
-
1
.f
8
in
Fig.
1
1-3-
1
Fig.
1
1-3-2
1.
position
of
the
per
end
Reel
\
n
of
the
inner
end
7
4.
0.04
-
0.08
in
Fig.
1
1-4
(4)
Hold
the starter rope as shown
in
Fig.11-5.
and
I
turn the reel
4
to
5
times
in
the arrowhead
direction.
Firmly press
the
reel not to allow reverse turn-
ing
and pull
the
starter
knob
to let the starter
rope out
of
the starter case.
Return the
knob’
slowly to let the starter rope
rewind
in
the reel.
(5)
Reassemble the parts
in
reverse order
of
disas-
sembly.
Apply- a small amount
of
lock-tight to
set
screw and torque it.
I
TIGHTENING
TORQUE
I
3.4
-
5.4
N
m
55
kgf
*crn
25.2
-
39.6
ft
Ib
w
Fig.
1
1-5
-
51
-
