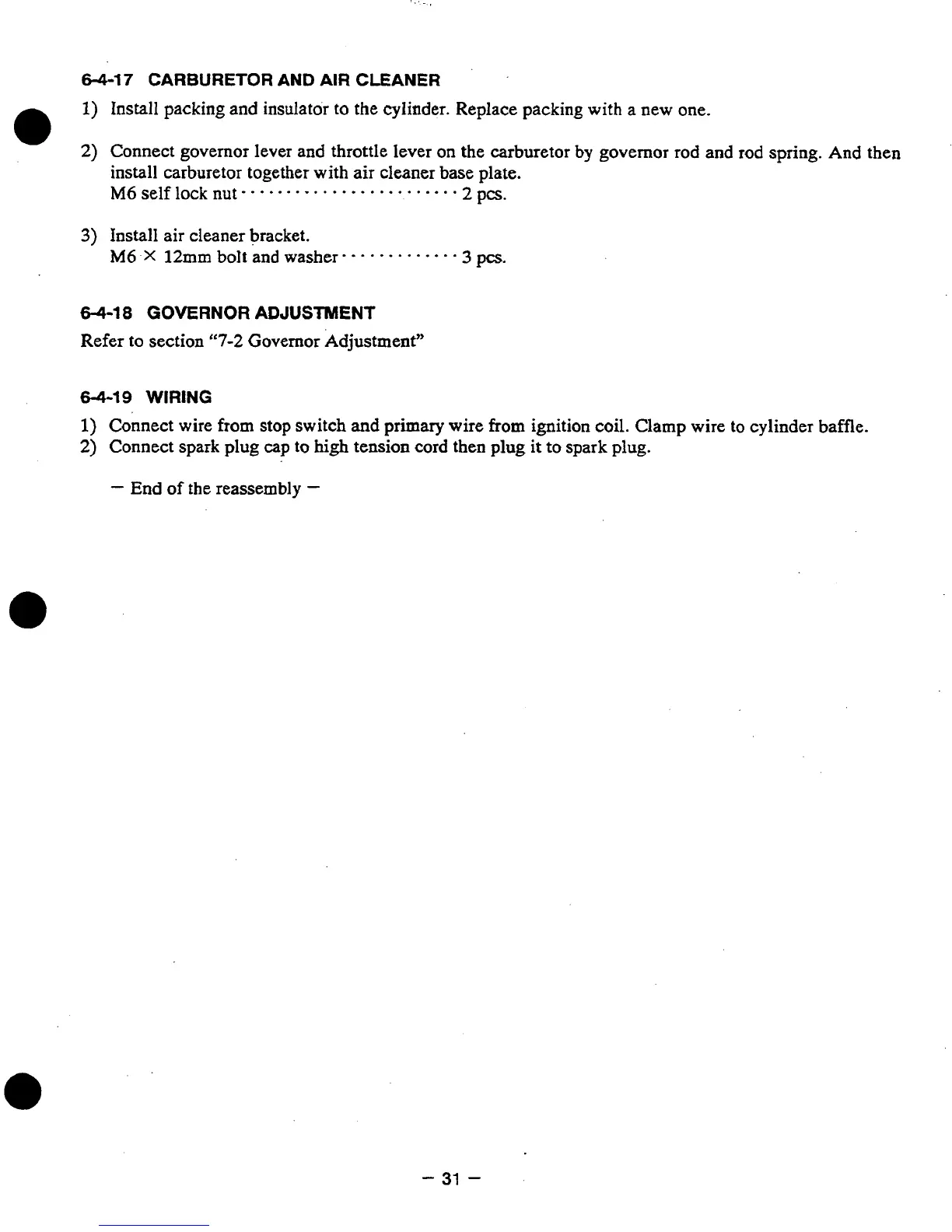

CARBURETOR
AND
AIR
CLEANER
1)
Install packing and insulator
to
the cylinder. Replace packing
with
a new one.
2)
Connect governor lever and throttle lever
on
the
carburetor by governor rod
and
rod spring. And then
install carburetor together with air cleaner base plate.
M6selflocknut
........................
2
pa.
3)
Install air cleaner bracket.
M6
X
12mmboltandwasher---.--..--...
3
pa.
6-4-18
GOVERNOR
ADJUSTMENT
Refer
to
section
“7-2
Governor Adjustment”
6-4-19
WIRING
1)
Connect wire from stop switch
and
primary
wire
from
ignition coil. Clamp wire to cylinder baffle.
2)
Connect spark plug cap
to
high
tension cord then plug it
to
spark plug.
-
End
of
the reassembly
-
-
