6416
SPEED
CONTROL
LEVER
AND
GOVERNOR
LEVER
1) Install governor lever
to
governor shaft with adjusting plate being temporary tightened.
M6nutandspringwasher-.-.----.--.-..-
1
PC.
M4
X
8mm
screw and spring washer
-
- -
-
1
PC.
2)
Install governor control lever, washer (fiber) and cover
to
the
crankcase
in
this sequence.
M6
X
8mmflangebolt
-.-....-..........
1
PC.
3)
Hook
governor
spring
to
the governor lever and speed control lever.
Governor lever
M4
screw
and spring washer
Speed
control
lever

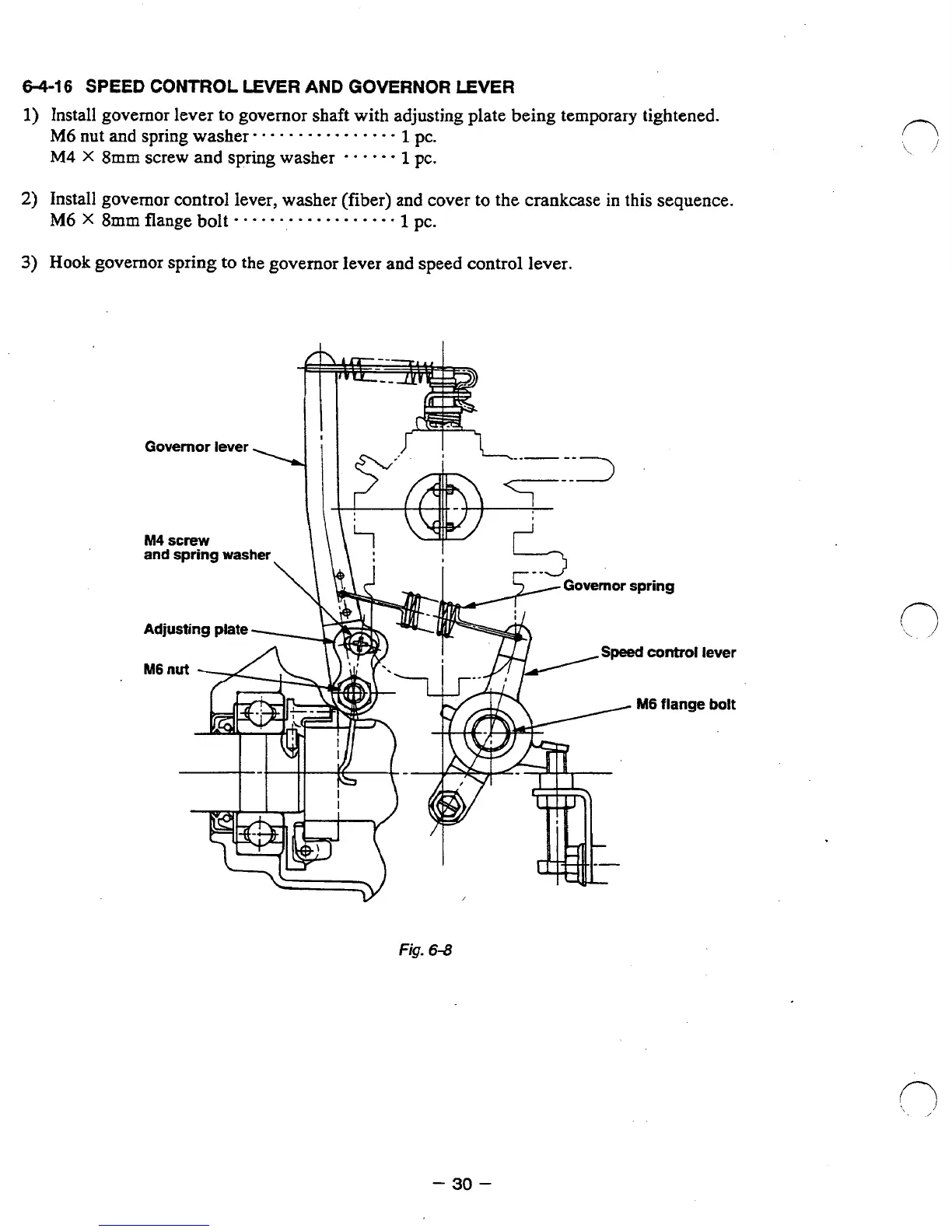

Fig.
6-8
-
30
-
