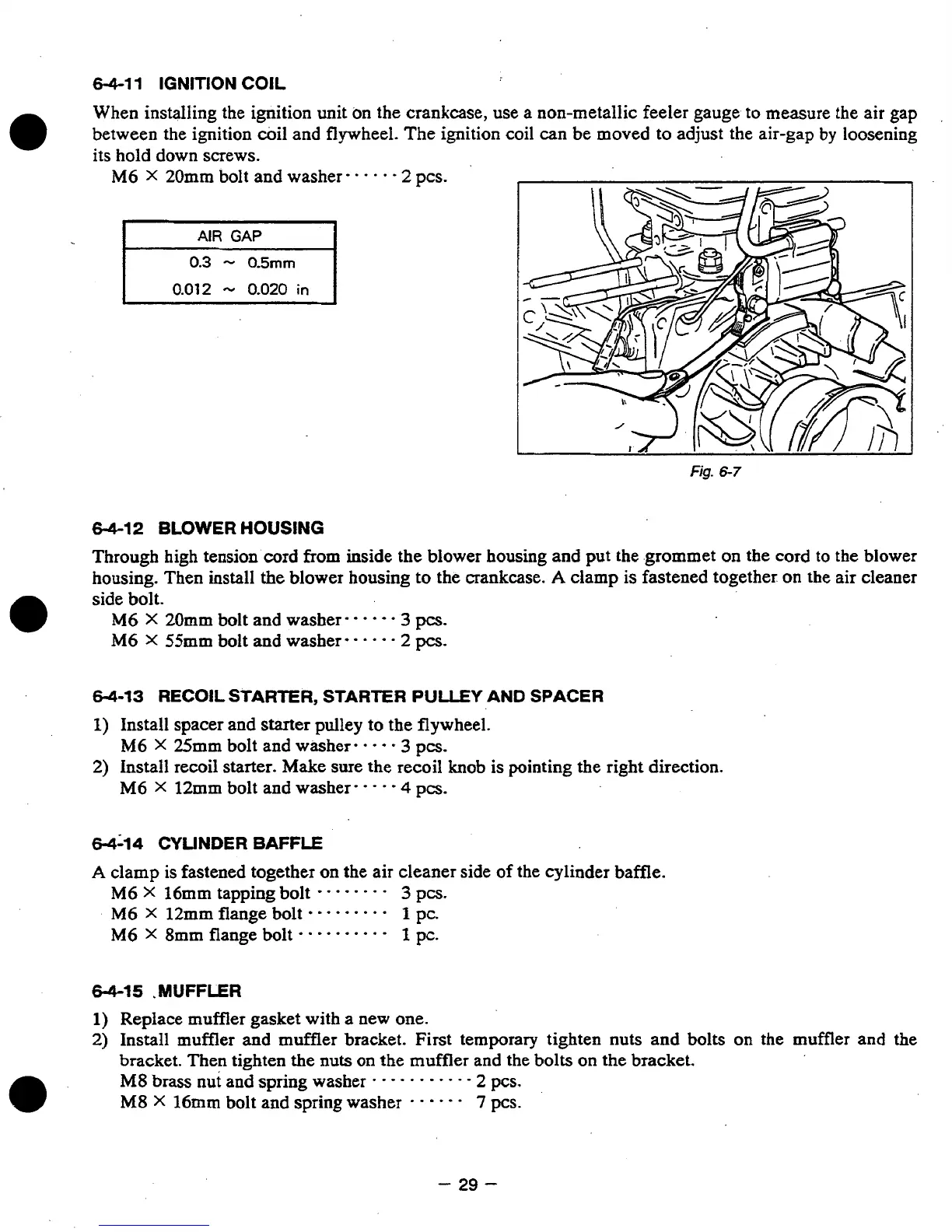

6-4-1
1
IGNITION
COIL
When installing the ignition unit
on
the crankcase, use
a
non-metallic feeler gauge to measure the air gap
,
its hold down screws.
between the ignition coil and flywheel. The ignition coil
can
be moved to adjust the air-gap
by
loosening
M6
X
20mm
bolt and washer
-
*
-
-
-
-
2
pcs.
1
AIR
GAP
0.3
-
0.5mm
0.012
-
0.020
in
Fig.
6-7
6412
BLOWER
HOUSING
Through high tension
cord
from
inside the blower housing and put the .grommet
on
the cord to
the
blower
housing. Then install the blower housing
to
the crankcase.
A
clamp is fastened together
on
the air cleaner
side bolt.
M6
X
20mm bolt and washer
-
-
*
*
-
-
3
pcs.
M6
X
55mm bolt and washer.
-
-
-
-
2
P-
64-13
RECOJL
STARTER,
STARTER
PULLEY
AND
SPACER
I)
Install spacer and starter pulley
to
the flywheel.
2)
Install recoil starter. Make sure the recoil
knob
is pointing the right direction.
M6
X
25mm
bolt
and washer
- -
3
pcs.
M6
X
12mm bolt and washer
- -
-
-
-
4
pa.
64114
CYLINDER
BAFFLE
A
clamp
is
fastened together on the air cleaner side
of
the cylinder baffle.
M6
X
16mm tapping bolt
-
-
*
-
-
- - -
3
pcs.
M6
X
12mm flange bolt
-
-
- -
- - - -
I
PC.
M6
X
8mm
flange bolt
-
-
- -
-
-
-
-
*
-
I
PC.
6415
.MUFFLER
1)
Replace muffler gasket with
a
new one.
2)
Install muffler and muffler bracket. First temporary tighten nuts
and
bolts
on
the muffler
and
the
bracket.
Then
tighten the
nuts
on
?he muffler and the
bolts
on the bracket.
M8
brass nut
and
spring
washer
-
-
-
-
-
-
-
-
-
-
2
pcs.
M8
X
16mm
bolt and spring washer
- -
-
-
-
-
7
pcs.
-
29
-
