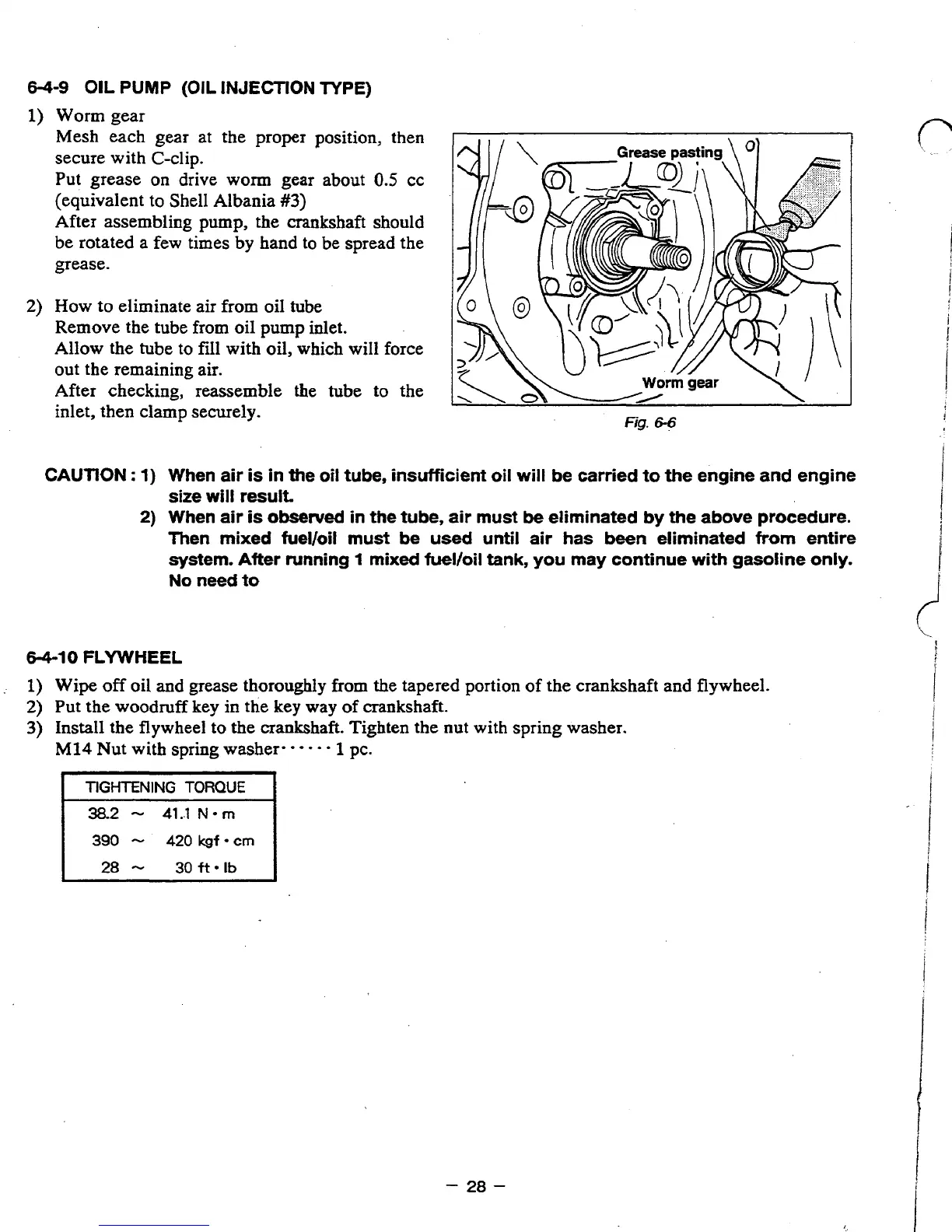

64-9
OIL
PUMP
(OIL
INJECTION
TYPE)
1)
Worm gear
Mesh each gear at the proper position,
then
secure with C-clip.
Put grease
on
drive
worm
gear about
0.5
cc
(equivalent to Shell Albania
#3)
After assembling pump,
the
crankshaft should
be rotated a few times by hand to be spread the
grease.
2)
How
to eliminate air from oil tube
Remove
the
tube
from
oil pump inlet.
Allow
the tube to
fill
with
oil, which will force
out the remaining air.
After checking, reassemble the tube to the
inlet, then clamp securely.
fig.
6-6
CAUTION
:
1)
When air is
in
the
oil
tube, insufficient oil will
be
carried to the engine
and
engine
size will result.
2)
When air
is
observed
in the
tube,
air must
be
eliminated by
the
above procedure.
Then
mixed fuel/oil must be used
until
air has been eliminated
from
entire
system. After running
1
mixed
fuel/oil
tank,
you
may continue with gasoline only.
No
need
to
6410
FLYWHEEL
.
1)
Wipe
off
oil
and
grease thoroughly from the tapered portion
of
the crankshaft and flywheel.
2)
Put the
woodruff
key in the key way
of
crankshaft.
3)
Install
the
flywheel to the crankshaft. Tighten the nut with spring washer.
M14
Nut with spring washer-
*
-
- -
1
PC.
I
TlGfiTENlNG
TORQUE
I
r'
I
-
28
-
