6-4
REASSEMBLY
PROCEDURES
6-4-1 CRANKCASE1
(1)
Before reassembling the crankcase, check bearing and
oil
seals.
(2)
Put crankcase
2
with mounting flange down on a firm stand
so
that crankshaft move freely when
it
is
(3)
Apply oil to the bearings of crankcase and ascertain that there
is
no
warp
on
the lip of oil seals.
(4)
Put governor plate
and
governor sleeve
on
the
bearing of crankcase
2.
Place the notch of governor plate to cylinder
(or
spark plug)
side.
(5)
Assuring that knock pin
on
crankshaft
and
notch
on
governor plate are aligned, assemble the
crankshaft with press (or
tap
it with a
soft
hammer) taking
care
not to damage the oil seal.
If
there
is
any
damage, replace them with
new
ones.
installed.
Governor
sleeve

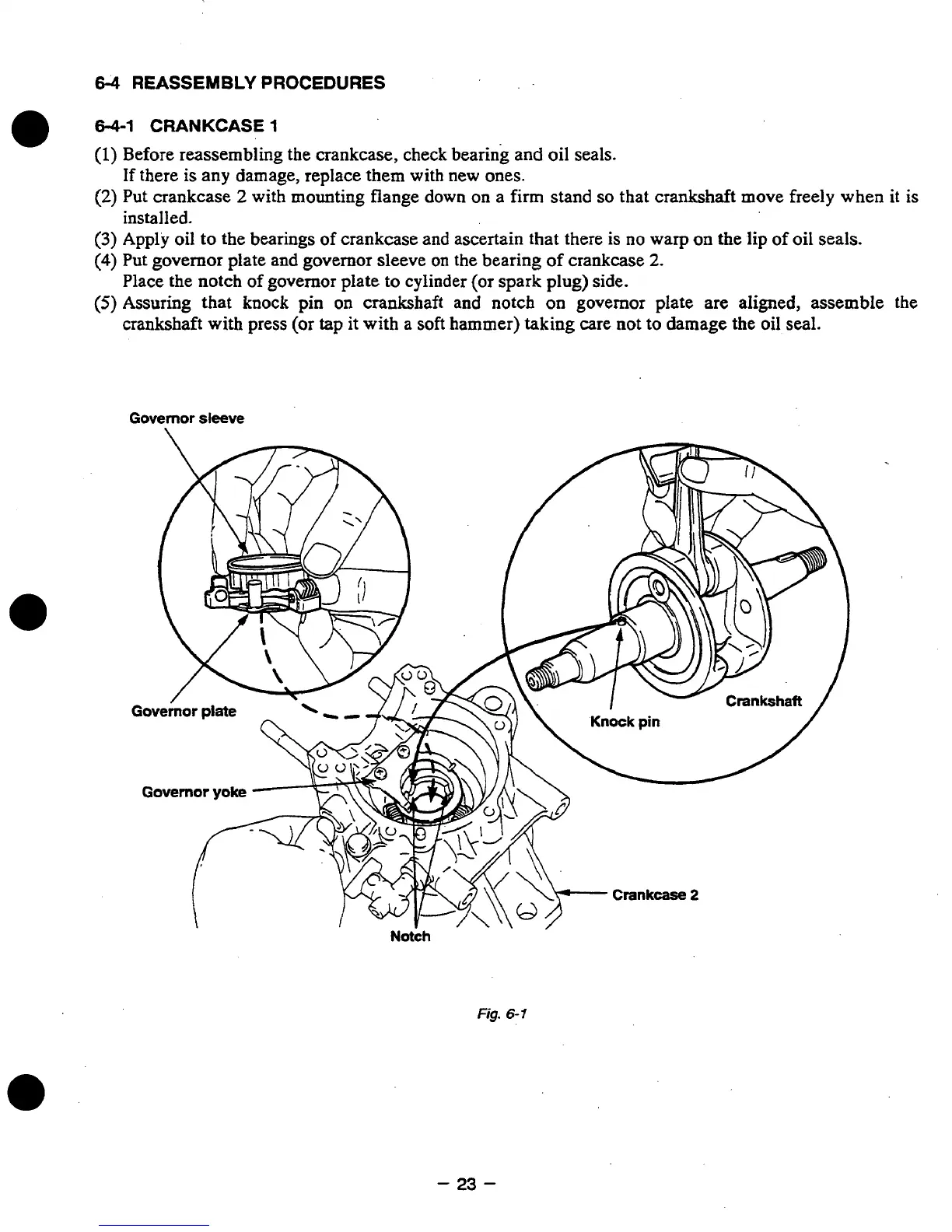

Fig.
6-1
-
23
-
To Next Page
