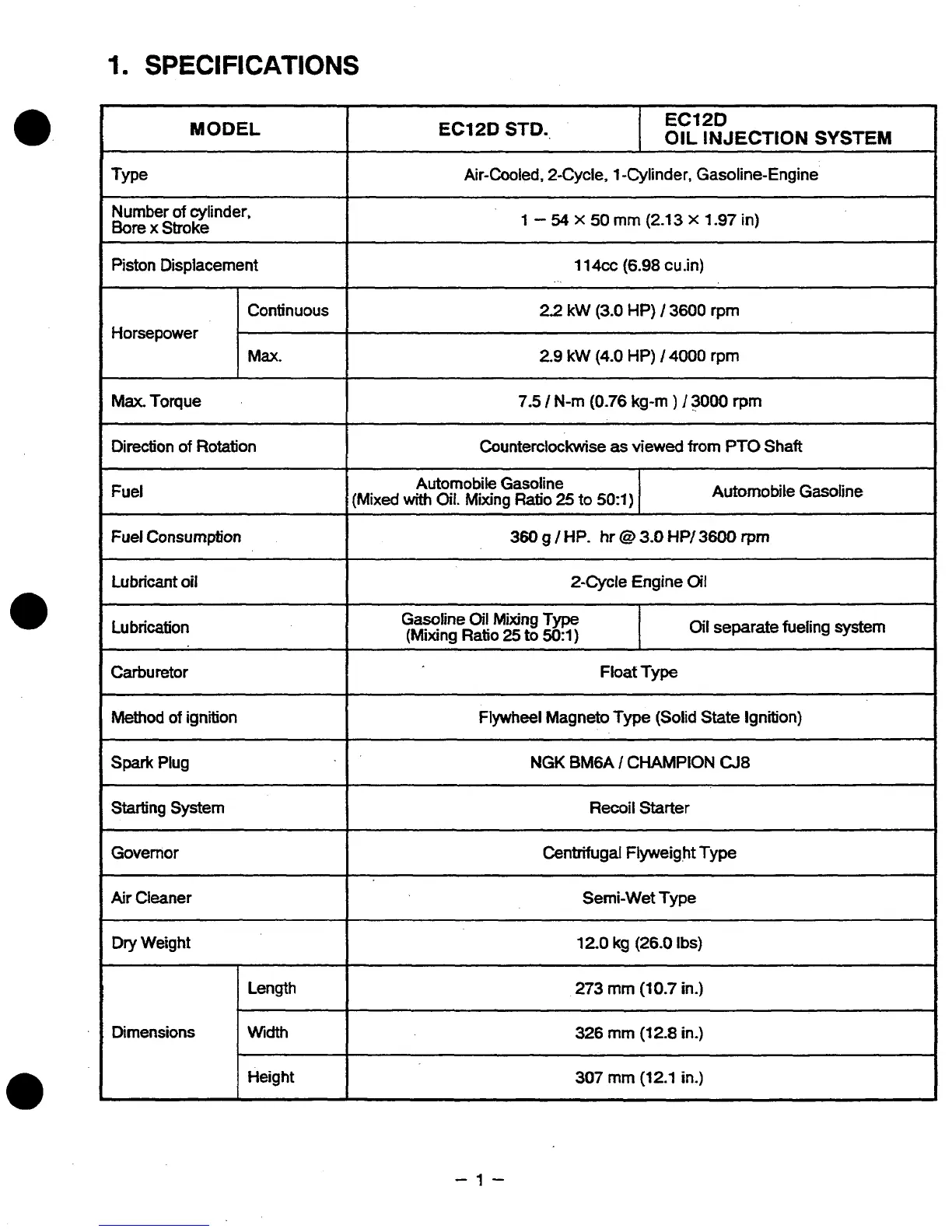

Robin EC12 User Manual

MODEL
Type
Number
of cylinder,
Bore x Stroke
Piston Displacement
Continuous
Horsepower
Max. Toque
Direction
of Rotation
Fuel
Fuel Consumption
Lubricant
oil
Lubrication
Carburetor
Method of ignition
spark Plug
Starting System
Governor
Air Cleaner
Dry Weight
Length
Dimensions Width
Height
ECIPD STD.,
EC12D
1 OIL INJECTION SYSTEM
Air-Cooled, 2-Cycle, 1 -Cylinder, Gasoline-Engine
1 - 54 x 50 mrn (2.13 x 1.97 in)
1 14cc (6.98 cu.in)
22 kW (3.0 HP) / 3600 rpm
. -.
2.9 kW (4.0 HP) I4000 rpm
7.5 I N-rn (0.76 kg-m ) I3000 rprn
Counterclockwise
as viewed from PTO Shaft
Automobile Gasoline
(Mixed
with Oil. Mixing Ratio 25 to 50:l) I
Automobile Gasoline
I
360 g / HP. hr 0 3.0 HP/ 3600 rprn
2-Cycle Engine Oil
Gasoline Oil Mixing Type
(Mixing
Ratio 25 to 50:l)
I O~I separate fueling system
Float Type
Flywheel Magneto
Type (Solid State Ignition)
NGK BMGA I CHAMPION CJ8
~ ~ ~
Recoil Starter
12.0 kg (26.0 Ibs)
273 mrn (10.7 in.)
326 rnrn (12.8 in.)
307 rnm (12.1 in.)
-1-
