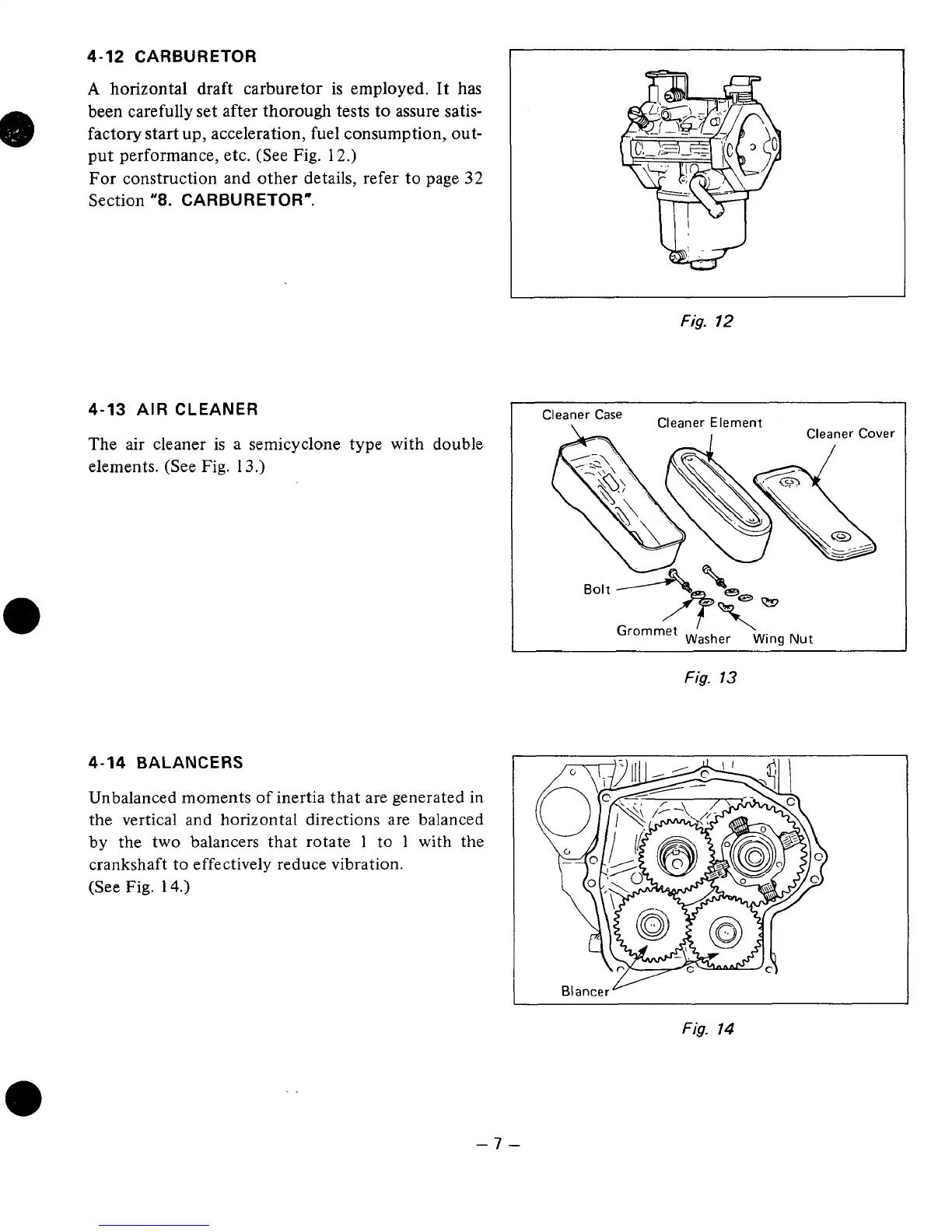

4-12
CARBURETOR
A
horizontal draft carburetor
is
employed. It has
been carefullyset after thorough tests
to
assure satis-
factory start up, acceleration, fuel consumption, out-
put performance, etc. (See Fig.
12.)
For construction and other details, refer to page
32
Section
"8.
CARBURETOR".
4-13
AIR CLEANER
The air cleaner is a semicyclone type with double
elements. (See
Fig.
13.)
4-14
BALANCERS
Unbalanced moments
of
inertia that are generated in
the vertical and horizontal directions are balanced
by the two balancers that rotate
1
to
1
with the
crankshaft to effectively reduce vibration.
(See
Fig.
14.)
Fig.
12
'leaner
Case
Cleaner Element
Cleaner Cover
~
Fig.
13
Fig.
14
-7-
