8. CARBURETOR

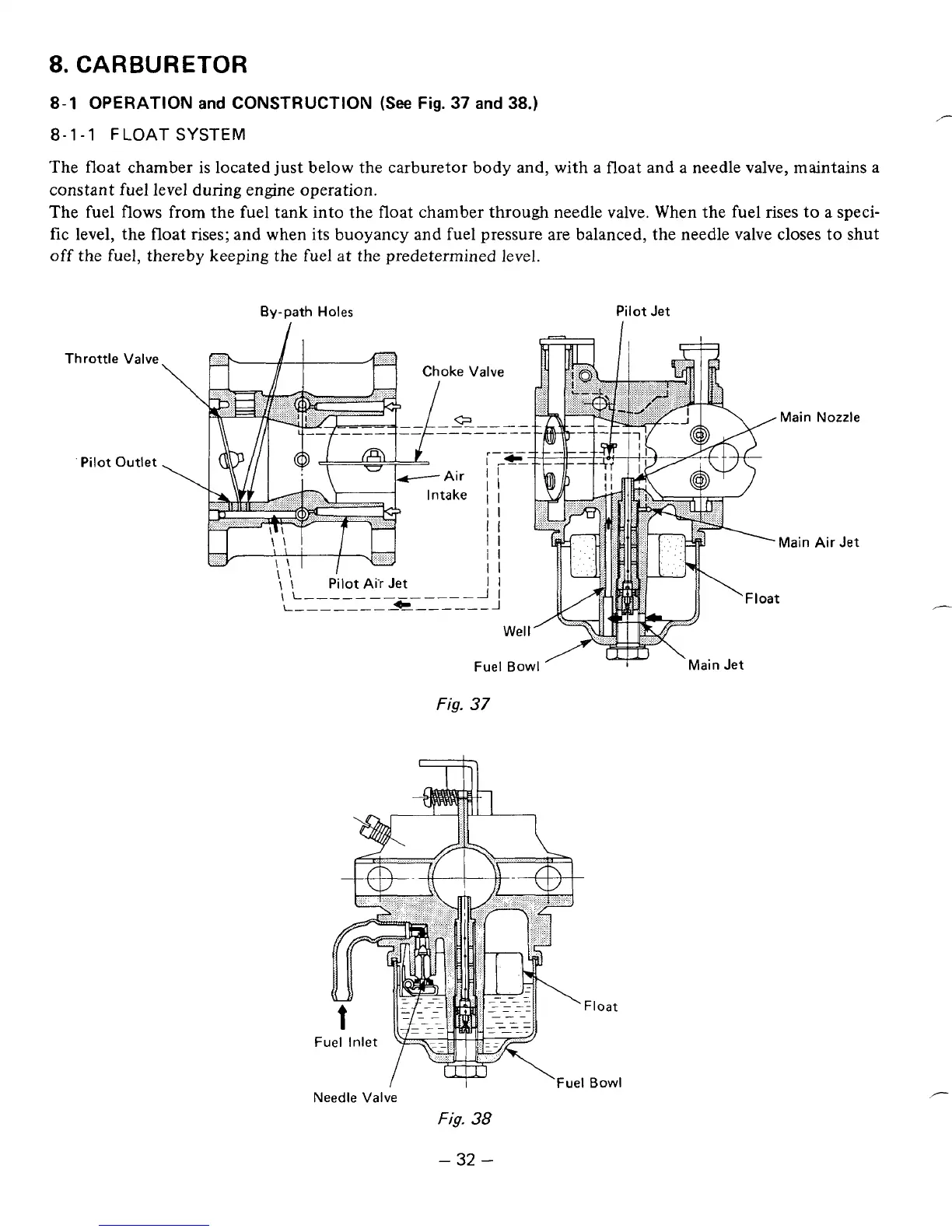

8-1 OPERATION and CONSTRUCTION (See Fig. 37 and 38.)
8- 1 - 1 FLOAT SYSTEM
The float chamber is located just below the carburetor body and, with a float and a needle valve, maintains a
constant fuel level
during engine operation.
The fuel flows from the fuel tank into the float chamber through needle valve. When the fuel rises to a speci-
fic level, the float rises; and when its buoyancy and fuel pressure are balanced, the needle valve closes to shut
off the fuel, thereby keeping the fuel at the predetermined level.
Throttle Valve
Pilot Outlet
Fig. 37
FI
Needle Valve
Fig. 38
I Nozzle
Air Jet
- 32 -
