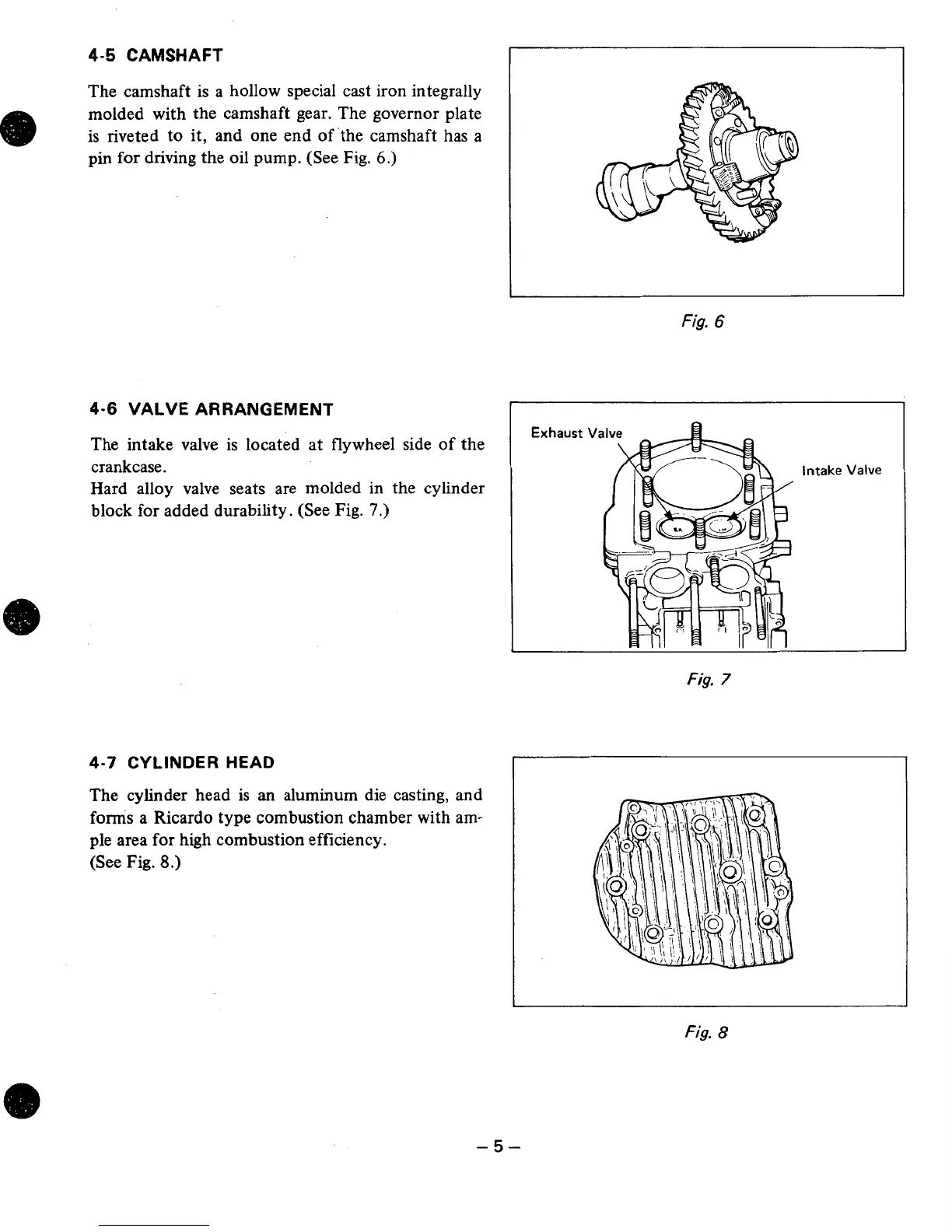

Robin EY45V - Camshaft; Valve Arrangement; Cylinder Head

The camshaft is a hollow special cast iron integrally
molded with the camshaft gear. The governor plate
is riveted to it, and one end of.the camshaft has a
pin
for driving the oil pump. (See Fig. 6 .)
4-6 VALVE ARRANGEMENT
The intake valve is located at flywheel side of the
crankcase.
Hard alloy valve seats are molded in the cylinder
block for added durability. (See
Fig. 7.)
4-7 CYLINDER HEAD
Fig. 6
Exhaust
intake Valve
Fig. 7
The cylinder head is an aluminum die casting, and
forms a Ricardo type combustion chamber with am-
ple area for high combustion efficiency.
Fig. 8
-5-
