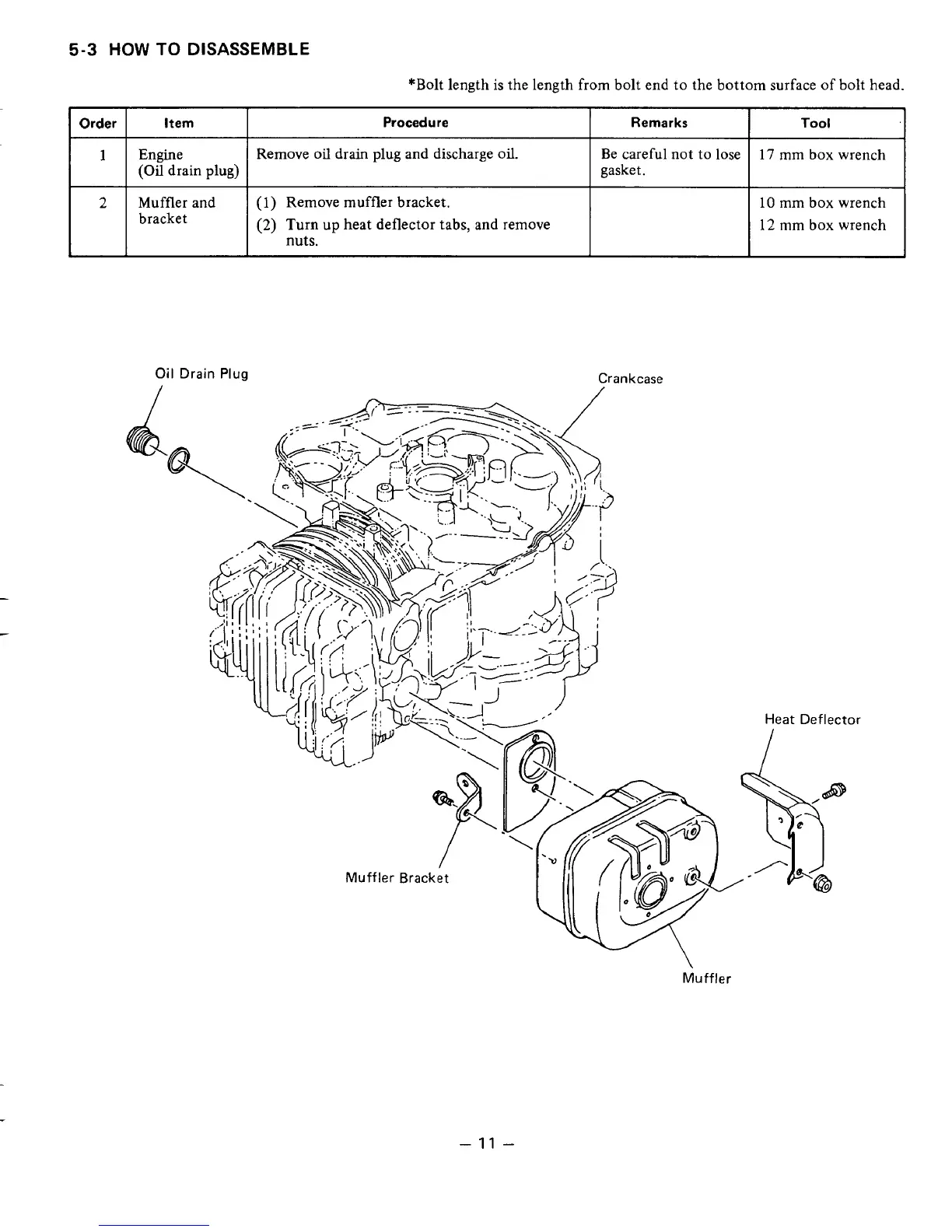

5-3
HOW
TO
DISASSEMBLE
E
Order
item
Engine
(Oil
drain plug)
Muffler and
bracket
*Bolt
length
is
the length from bolt end to the bottom surface of bolt head.
Procedure
Remove
oil
drain plug and discharge
oil.
(1)
Remove muffler bracket.
(2)
Turn
up heat deflector tabs,
and
remove
nuts.
Remarks
Tool
Be
careful
not
to
lose
gasket.
17
mm box wrench
10
mm box wrench
12
mm box wrench
Muffler
-
11
-
