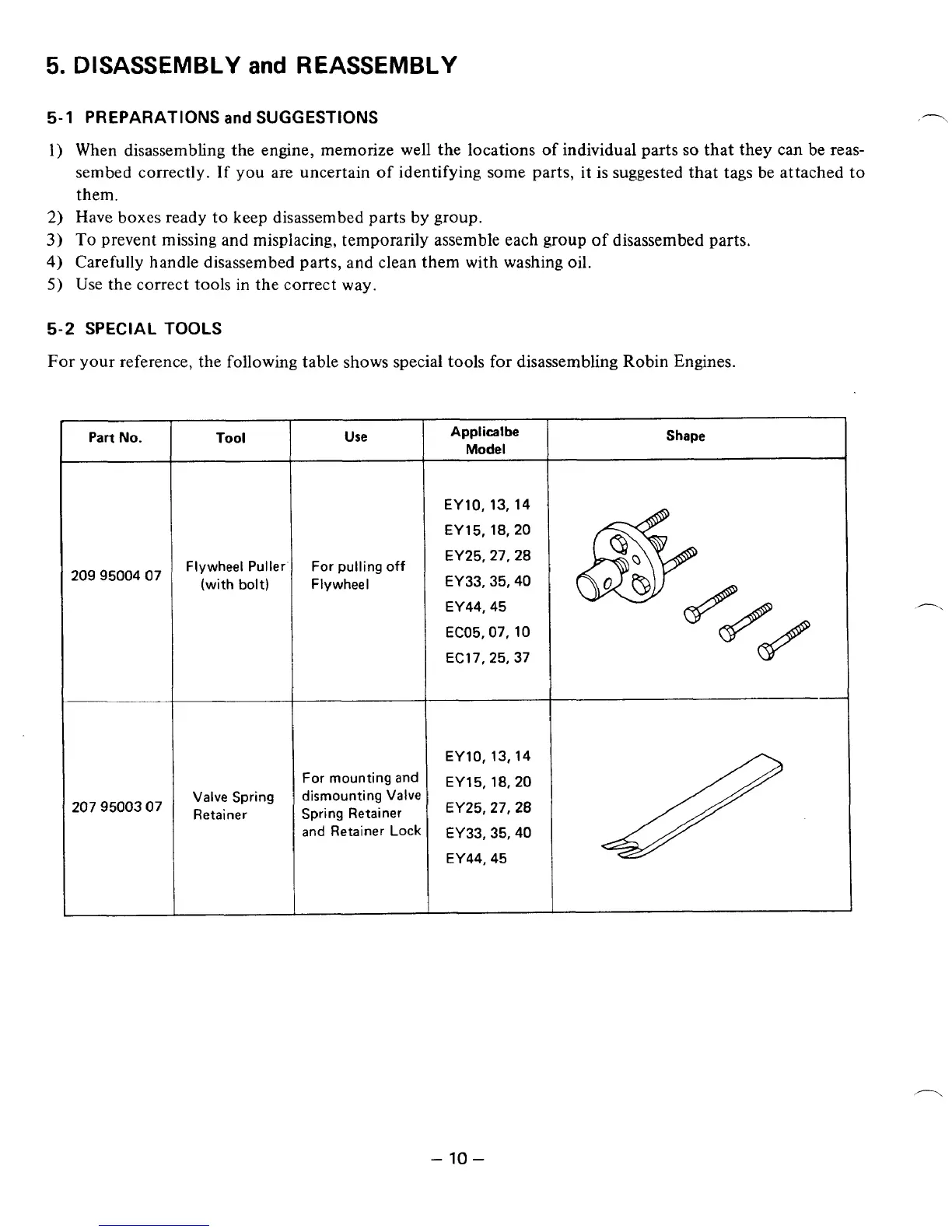

5.
DISASSEMBLY
and
REASSEMBLY
5-1
PREPARATIONS
and
SUGGESTIONS
1)
When disassembling the engine, memorize well the locations of individual parts
so
that they can be reas-
sembed correctly.
If
you are uncertain of identifying some parts,
it
is
suggested that tags be attached to
them.
2)
Have
boxes
ready to keep disassembed parts by group.
3)
To
prevent missing and misplacing, temporarily assemble each group
of
disassembed parts.
4)
Carefully handle disassembed parts, and clean them with washing oil.
5)
Use the correct tools in the correct way.
5-2
SPECIAL
TOOLS
For your reference, the following table shows special tools for disassembling Robin Engines.
Part
No.
209 95004
07
207
95003
07
Tool
Flywheel Puller
(with bolt)
Valve Spring
Retainer
Use
For
pulling
off
Flywheel
For mounting and
dismounting Valvc
Spring Retainer
and Retainer
Lock
Applicalbe
Model
EY10,13,14
EY15,18,20
EY25,27,28
EY33,35,40
EY44.45
EC05.07,lO
EC17,25,37
EY10, 13,14
EY15,18,20
EY25,27,28
EY33,35,40
EY44.45
Shape
-
10-
