３）Checkafterreassembly
 （１）PulltheSTARTERKNOBafewtimes:
 ①IftheSTARTERKNOBistooheavytopull,checktheassociatedpartswhether
   theyhavebeenreassembledasinstructed.
 ②IftheRATCHETfailstofunction,checkwhetherthepartssuchasthespring
   havebeenmissing.
（２）PulltheSTARTERKNOBtopullouttheSTARTERROPEtotheend:
 ①UnwindtheSTARTERROPE1to2turnsinthewayasshowninFig.6-1,sincetheSPIRAL,
   SPRINGmaybeover-stressediftheSTARTERROPEstillremainsintheropegroove.
 ②IftheSTARTERROPEisfoundweaktomoveback,ortheSTARTERKNOBdroopswhen 
   youletitgo,applygreaseovertherotatingandfrictionparts.Ifitdoesnotrecover,
   pulltheSTARTERKNOBsuchthattheSTARTERROPEispulledby1to2turns.(Inthis
   instance,makesureinthewaydescribedabovethattheSPIRALSPRINGisnot
   over-stressed.)
③IftheSPIRALSPRINGcomesawaywithasoundandtheSTARTERROPEwillnotbemoved
back,reassembletheRECOILSTARTERfromthebeginning. 
４）Othernotice
 （１）WhentheSPIRALSPRINGflyout:
        Makearinghavingasmallerdiameter
        thanthatoftheSPIRALSPRINGhousing
        byathinwire.HooktheSPIRALSPRING
        atitsouterendontheringtowind
        itasshowninFig.6-6,andfititinto
        theSPIRALSPRINGgroove.Pressthe
        SPIRALSPRINGwithyourfingerto
        preventitfromcomingawayandremove
        theringslowly.Theringcaneasilybe
        removedbypryingitwiththetipofa
        screwdriver.SeeFig.6-4forhowto
        fittheSPIRALSPRINGcorrectlyinto
        thegroove.
 （２）Atoff-seasonanddisassembly:
Applygrease(heat-resistanttypeispreferable)overtherotatingandfriction
partsattheendoftheseasonandatdisassembly.
 （３）WhentheSWINGARMdoesnotmovesmoothly:WhentheSWINGARMdoesnotmovesmoothly:
ApplygreaseovertheSWINGARMendandinthevicinityofplacealongwhich
theendslides.(ShellAlbaniaNo.3)
 

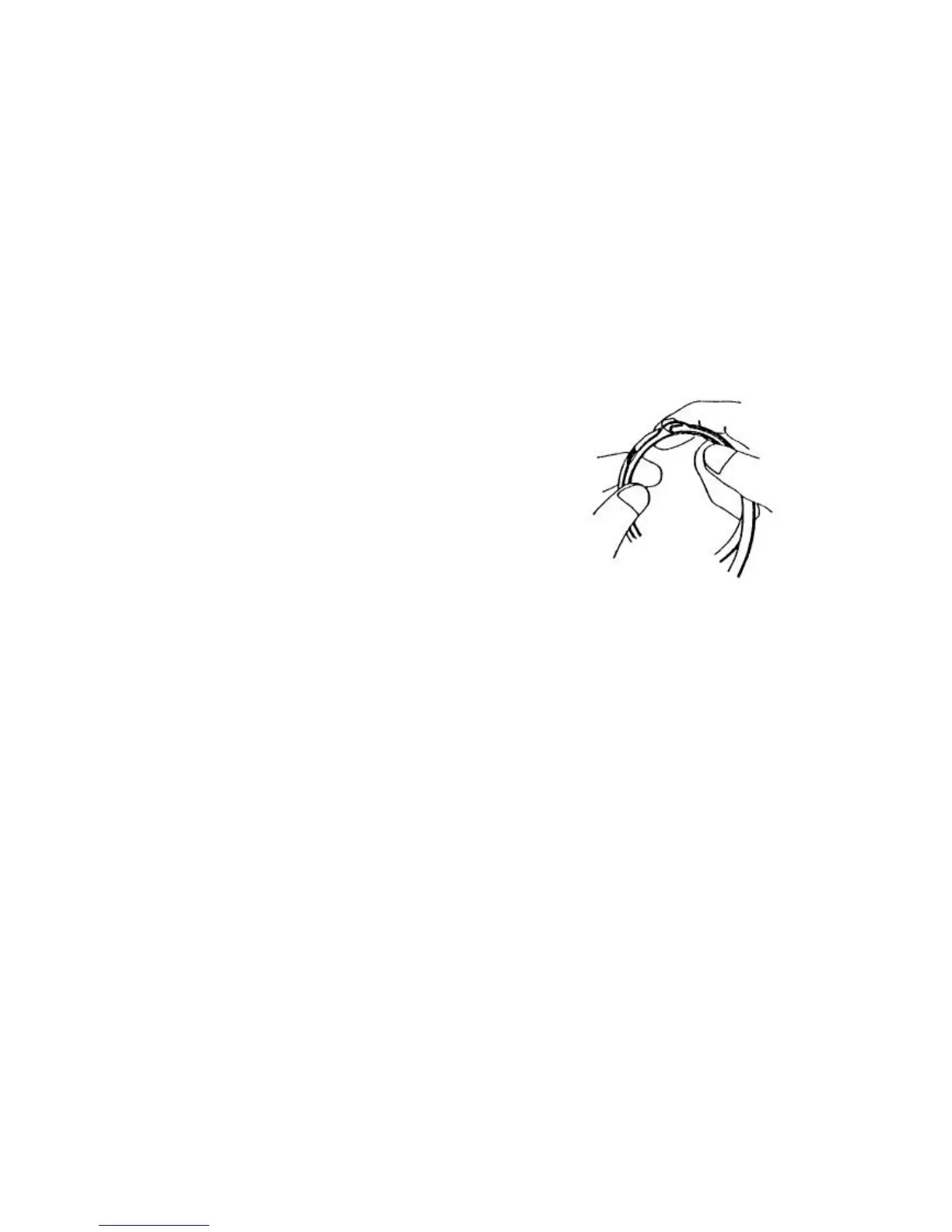

Fig.6-6
