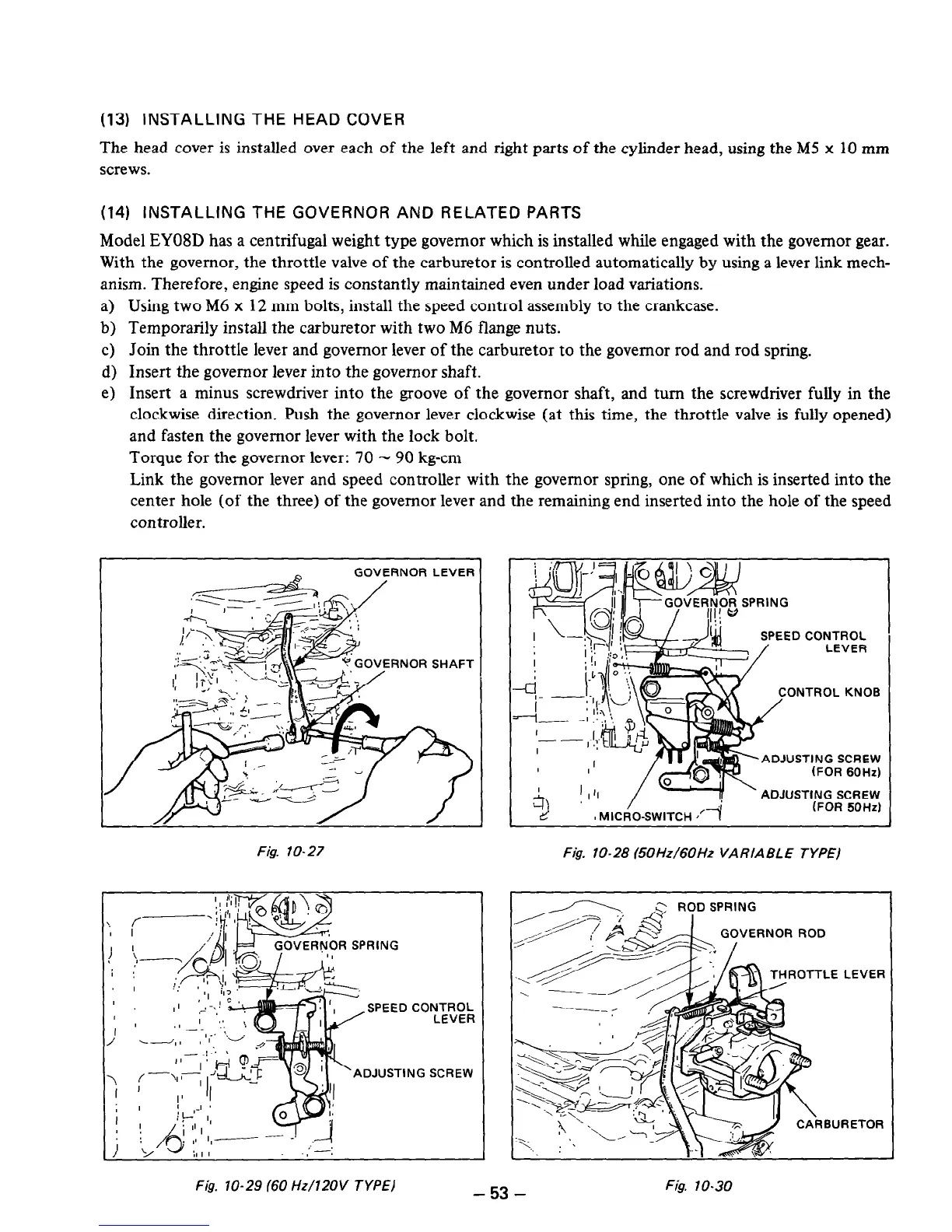

(13) INSTALLING THE HEAD COVER
The head cover is installed over each of the left and right parts of the cylinder head, using the M5 x 10 mm
screws.
(14) INSTALLING THE GOVERNOR AND RELATED PARTS
Model EY08D has a centrifugal weight type governor which is installed while engaged with the governor gear.
With the governor, the throttle valve of the carburetor is controlled automatically by using a lever link mech-
anism. Therefore, engine speed is constantly maintained even under load variations.
a) Using two M6 x 12 mm bolts, install the speed control assembly to the crankcase.
b) Temporarily install the carburetor with two M6 flange nuts.
c) Join the throttle lever and governor lever of the carburetor to the governor rod and rod spring.
d) Insert the governor lever into the governor shaft.
e) Insert a minus screwdriver into the groove of the governor shaft, and turn the screwdriver fully in the
clockwise direction, Push the governor lever clockwise (at this time, the throttle valve is fully opened)
and fasten the governor lever with the lock bolt.
Torque for the governor lever: 70 - 90 kg-cm
Link the governor lever and speed controller with the governor spring, one of which is inserted into the
center hole (of the three) of the governor lever and the remaining end inserted into the hole of the speed
controller.
CT
GOVERNOR LEVER 1
RNOR SHAFT
Fig. 70- 27
SPEED CONTROL SPEED CONTROL
LEVER LEVER
-
3
I ii,
i
7,
;OVERPJOR SPRING
I ”
ADJUSTING SCREW
FI@. lo-28 (5OHz/6OHz VARIABLE TYPE)
VERNOR ROD
HROTTLE LEVER
Fig. lo-29 (60 Hz/72OV TYPE)
- 53 -
