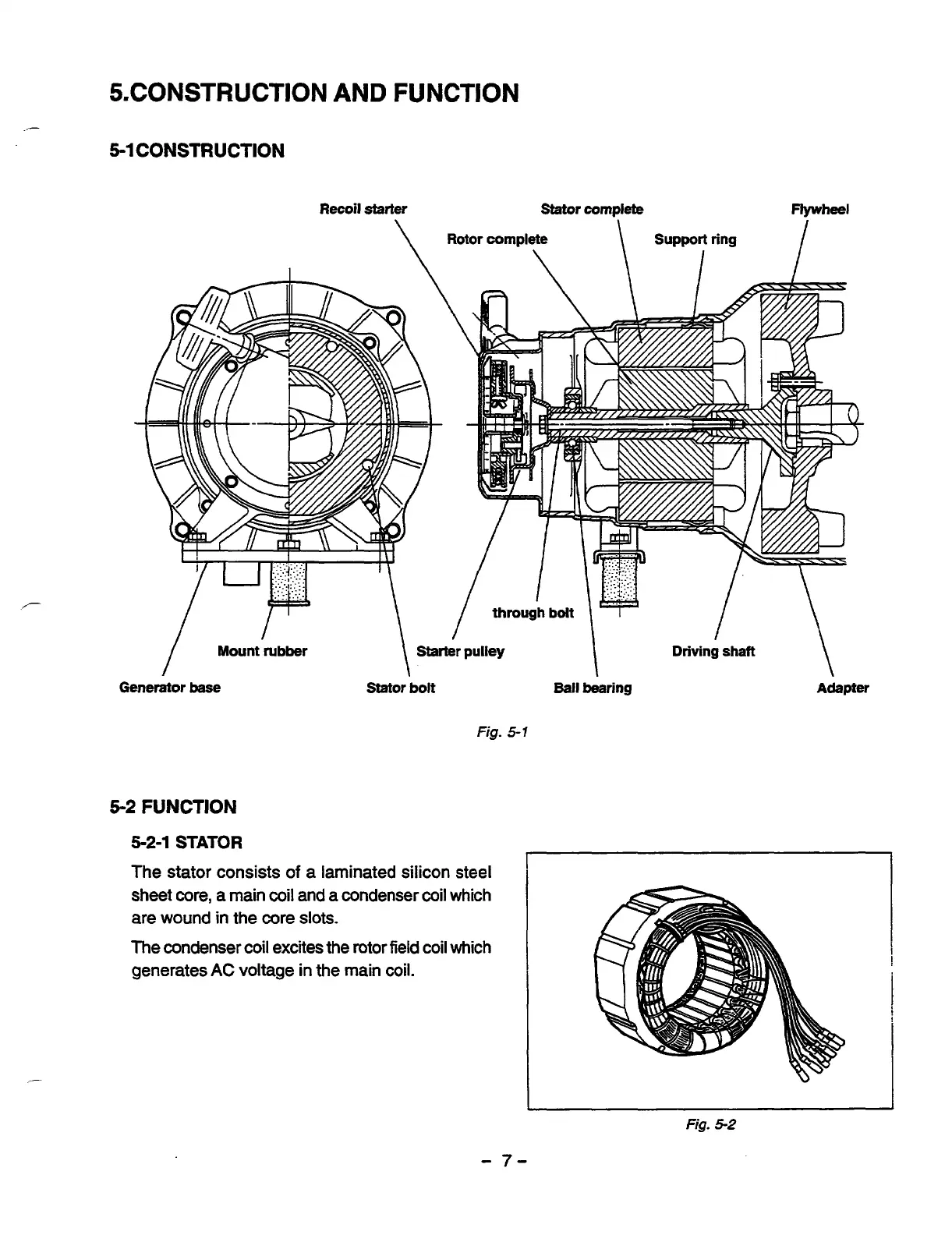

5CONSTRUCTION AND FUNCTION
!j-lCONSTRUCTlON
Mount rubber
\ Starter pu"ey
Driving shaft
\
Generator base Stator bolt Ball bearing Adapter
Fig. 5-1
5-2 FUNCTION
5-2-1 STATOR
The stator consists of a laminated silicon steel I
sheet core, a main coil and a condenser coil which
are wound in the core slots.
The condenser coil excites the rotor field coil which
generates
AC voltage in the main coil.
Fig. 5-2
- 7-
