I

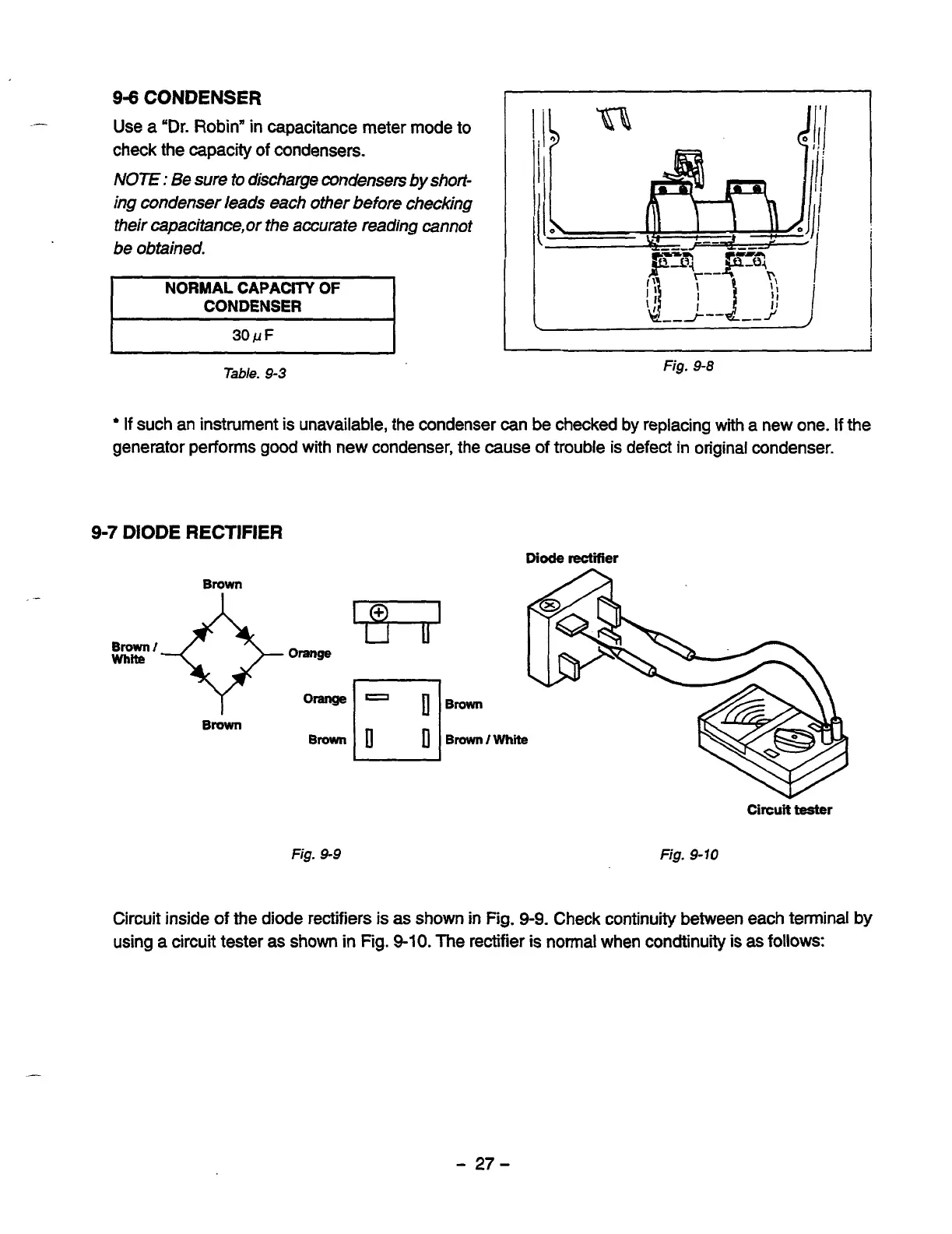

9dCONDENSER
Use a "Dr. Robin" in capacitance meter mode to
check the capacity of condensers.
NOTE
:
Be sure
to
discharge condensers
by
short-
ing
condenser leads each other before checking
their capacitance,
or
the accurate reading cannot
be obtained.
NORMAL
CAPACITY
OF
CONDENSER
Table.
9-3
I'
Fig.
9-8
If
such an instrument
is
unavailable, the condenser can be checked
by
replacing with a new one.
If
the
generator performs good with
new
condenser, the cause
of
trouble is defect in original condenser.
9-7
DIODE RECTIFIER
Diode
rectifier
Fig.
9-9
Circuit
tester
Fig.
9-70
Circuit inside of the diode rectifiers is
as
shown in Fig.
9-9.
Check continuity between each terminal by
using
a
circuit tester as
shown
in
Fig.
410.
The rectifier
is
normal when condtinuity is
as
follows:
-
27-
