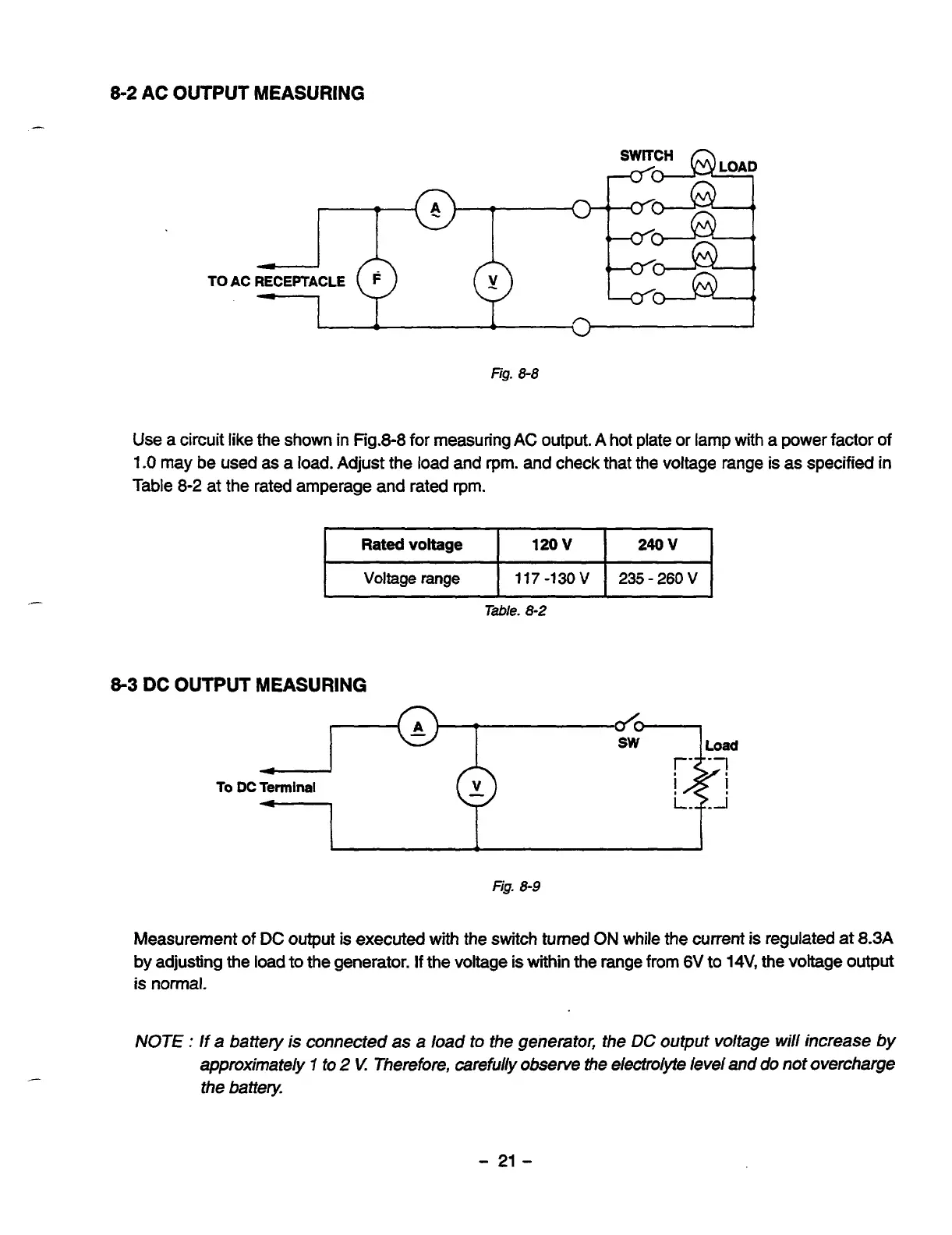

8-2
AC
OUTPUT MEASURING
I
d
TO
AC RECEPTACLE
I
c
1
1
n
U
I
Fig.
8-8
Use a circuit like the shown in Fig.8-8 for measuring
AC
output.
A
hot plate
or
lamp with a power factor of
1.0
may
be used
as
a load. Adjust the load and
rpm.
and check that the voltage range
is
as specified
in
Table 8-2 at the rated amperage and rated rpm.
Rated
voltage
235
-
260
V
117
-130
V
Voltage
range
240
v
120
v
Table.
8-2
8-3
DC
OUTPUT MEASURING
"
To DC
Terminal
Fig.
8-9
Measurement
of
DC
output
is executed
with
the switch turned
ON
while the current is regulated at
8.3A
by adjusting the load to
the
generator.
If
the voltage is within the range from
6V
to
14V,
the voltage
output
is normal.
NOTE
:
If
a battery
is
connected
as
a load to the generator, the
DC
output voltage
will
increase
by
approximately
7
to
2
V:
Therefore, careful& observe the electrolyte level
and
do not overcharge
the battery
-
21
-
