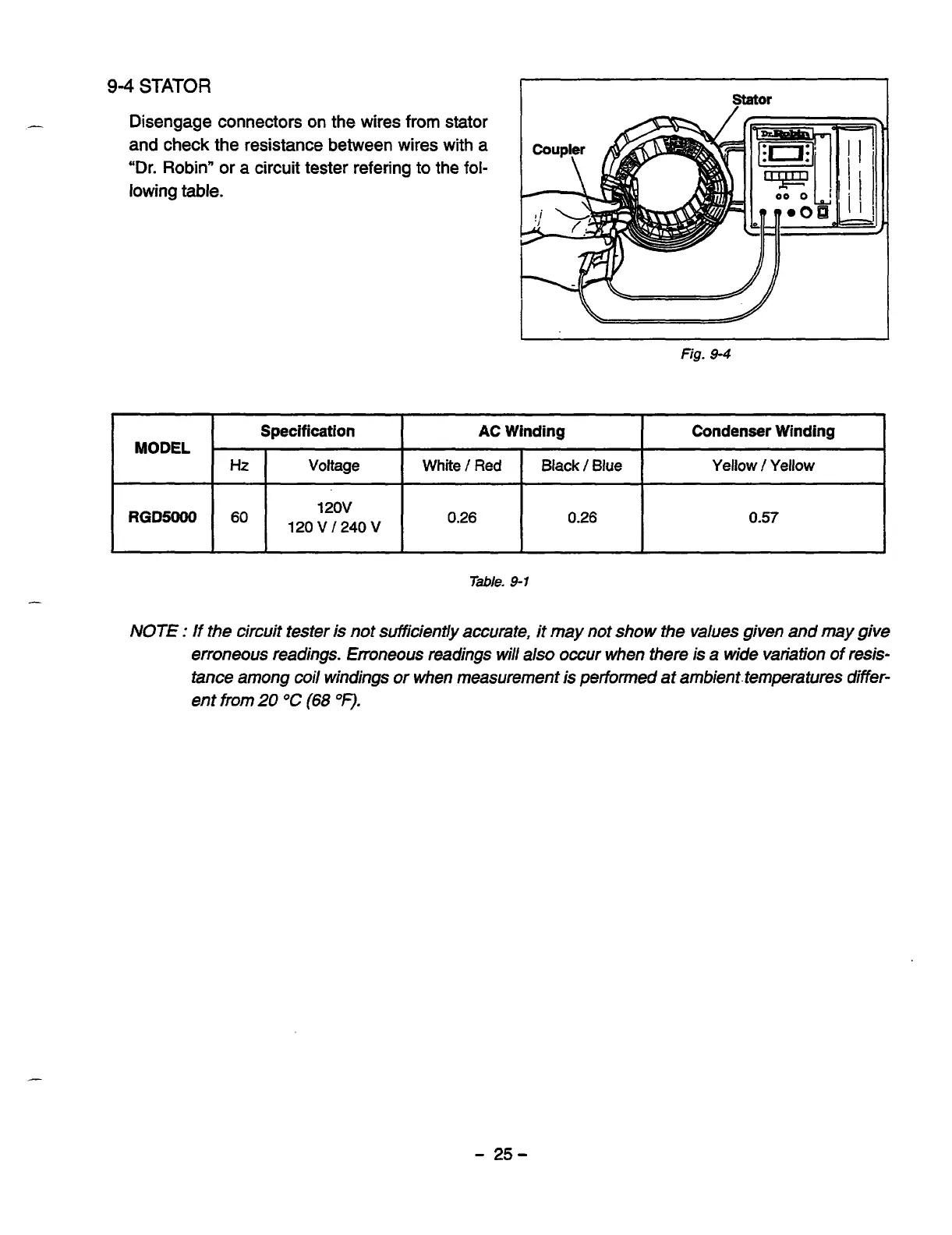

9-4 STATOR
i I
Disengage connectors on the wires from stator
and check the resistance between wires with a
"Dr. Robin" or a circuit tester refering to the
fol-
lowing table.
u
Fig. 9-4
Specification
Condenser Winding
AC Winding
MODEL
Hz
Yellow / Yellow Black / Blue White / Red
Voltage
120v
RGD5000
120 V / 240 V
6o
0.26 0.57 0.26
Tale. 9-1
NOTE : If the circuit tester is not sufficiently accurate, it may not show the values given and may give
erroneous readings.
Erroneous readings will also occur when there is a wide variation of resis-
tance among coil windings or when measurement is performed at ambienf.temperafures differ-
ent from
20 OC (68 OF).
- 25-
