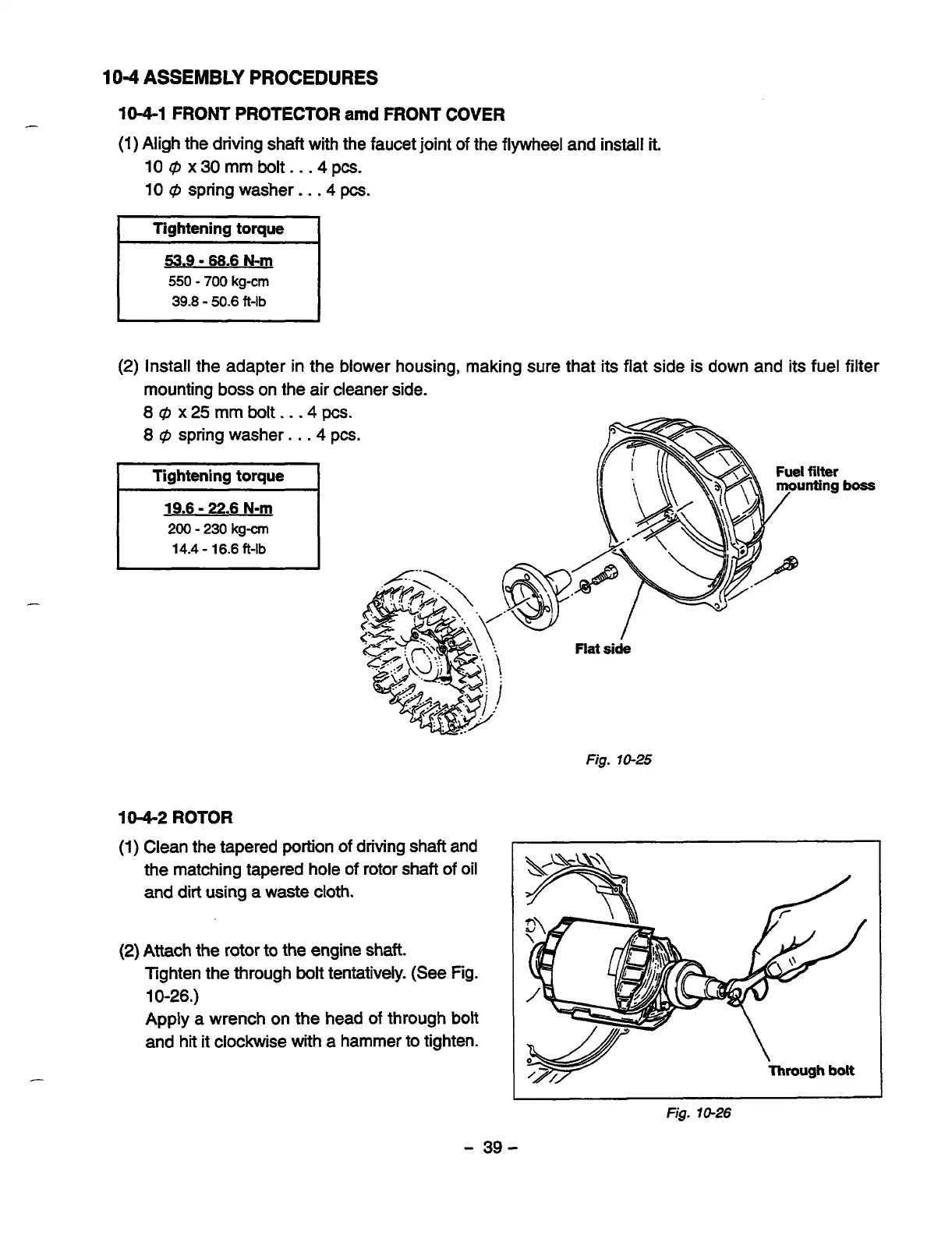

104 ASSEMBLY PROCEDURES
10-4-1 FRONT PROTECTOR amd FRONT COVER
(1) Aligh the driving shaft with the faucet joint of the flywheel and install it.
lO@x30mrnbolt ... 4pcs.
10 # spring washer. . .4 pcs.
L
9 - 68.6 N-m
550 - 700 kg-cm
39.8 - 50.6 ft-lb
(2) Install the adapter in the blower housing, making sure that its flat side is down and its fuel filter
mounting boss on the air cleaner side.
8# x25mmbolt ... 4pcs.
8 # spring washer. . .4 pcs.
filter
nting
200 - 230 kg-
14.4 - 16.6 ft-lb
boss
10-4-2 ROTOR
(1) Clean the tapered portion of driving shaft and
the matching tapered hole of rotor shaft of oil
and dirt using a waste cloth.
(2) Attach the rotor to the engine shaft.
Tighten the through bolt tentatively. (See Fig.
Apply a wrench on the head of through bolt
and hit it clockwise with a hammer to tighten.
10-26.)
