11

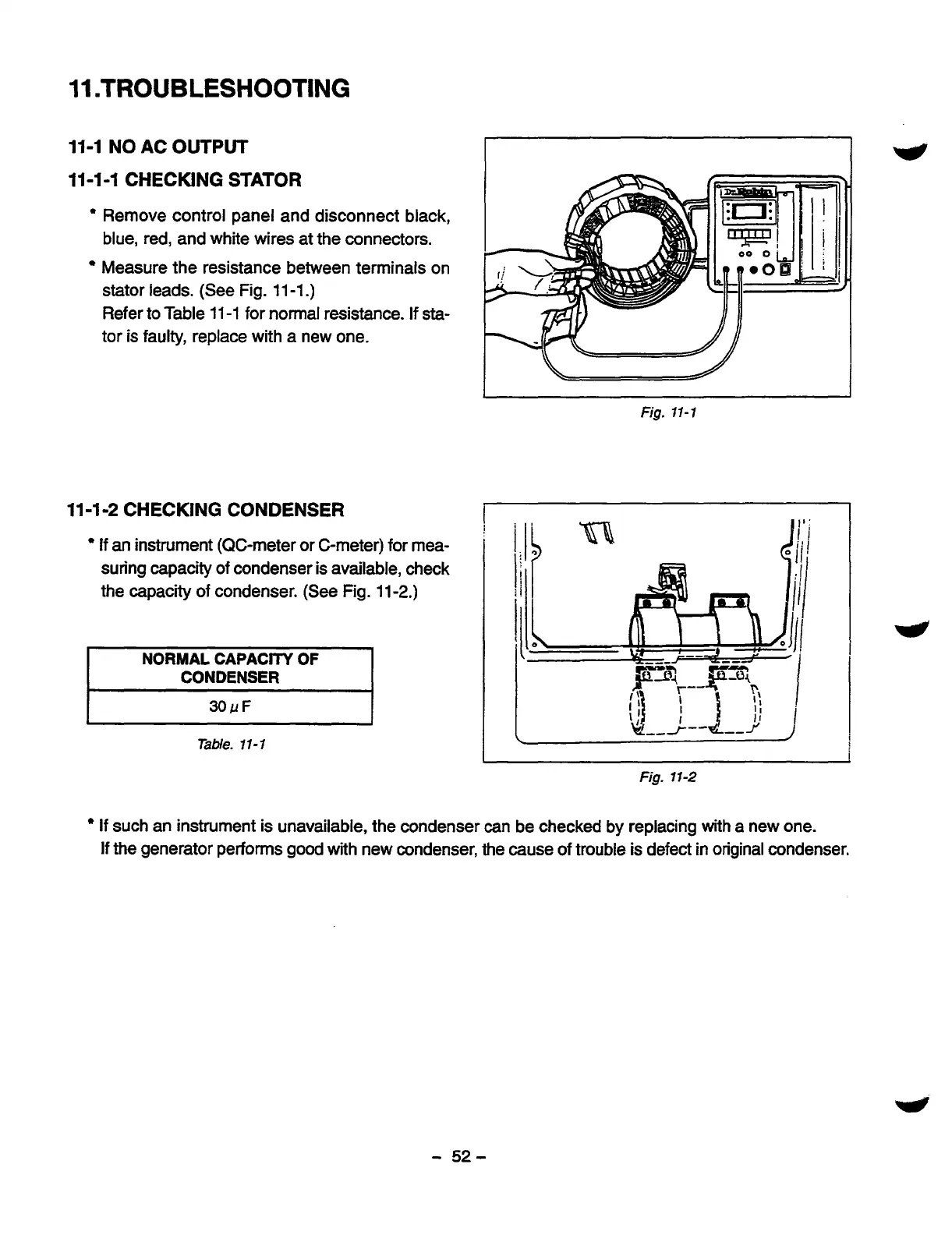

.TROUBLESHOOTING
11-1
NO
AC
OUTPUT
I-
ll
-1-1
CHECKING
STATOR
Remove control panel and disconnect black,
blue, red, and white wires at the connectors.
Measure the resistance between terminals on
stator leads. (See Fig.
11-1
.)
Refer to Table
11
-1
for normal resistance.
If
sta-
tor is faulty, replace with a new one.
11-1-2
CHECKING CONDENSER
If an instrument (QC-meter or C-meter) for mea-
suring capacity
of
condenser is available, check
the capacity of condenser. (See Fig.
11
-2.)
NORMAL CAPACITY
OF
CONDENSER
Table.
11
-
1
Fig.
11-1
Fig.
11-2
If
such an instrument is unavailable, the condenser
can
be checked
by
replacing with
a
new one.
If
the generator performs good with new condenser, the cause of trouble is defect in original condenser.
-
