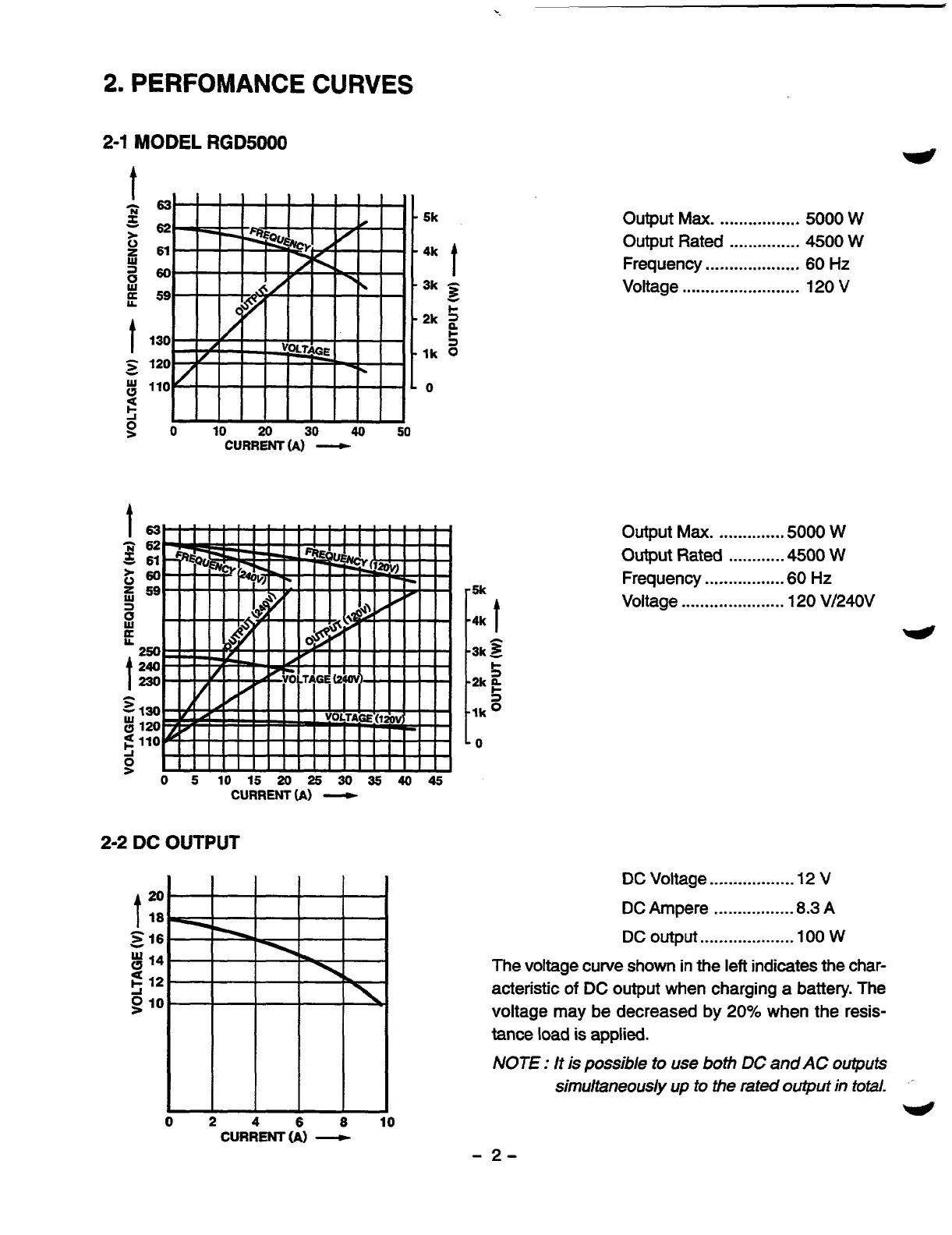

2. PERFOMANCE CURVES
2-1 MODEL RGD5000
t
-63
62
61
P
zi
E
-
*
=60
Y
K 59
1 130
s: 120
-
g 110
2
h
3
0 10 20 30 40 50
5k
4k t
-
2k 2
c
3
c
lk 0
0
CURRENTO -
2-2 DC OUTPUT
- = I6
Lu
14
12
g IO
0246810
CURRENT(A) -
Output Max. ................. 5000 W
Output Rated ............... 4500 W
Frequency .................... 60 Hz
Voltage ......................... 120 V
Output Max. ..............
5000 W
Output Rated ............
4500 W
Frequency .................
60 Hz
Voltage ...................... 120 Vl24OV
DC Voltage .................. 12 V
DC Ampere ................. 8.3 A
DC output .................... 100 W
The voltage cuwe shown in the left indicates the char-
acteristic
of DC output when charging a battery. The
voltage may be decreased by 20%
when the resis-
tance load
is applied.
NOTE
: It is possible to use both DC and AC outputs
simultaneously up to the rated output in total.
*
- 2-
