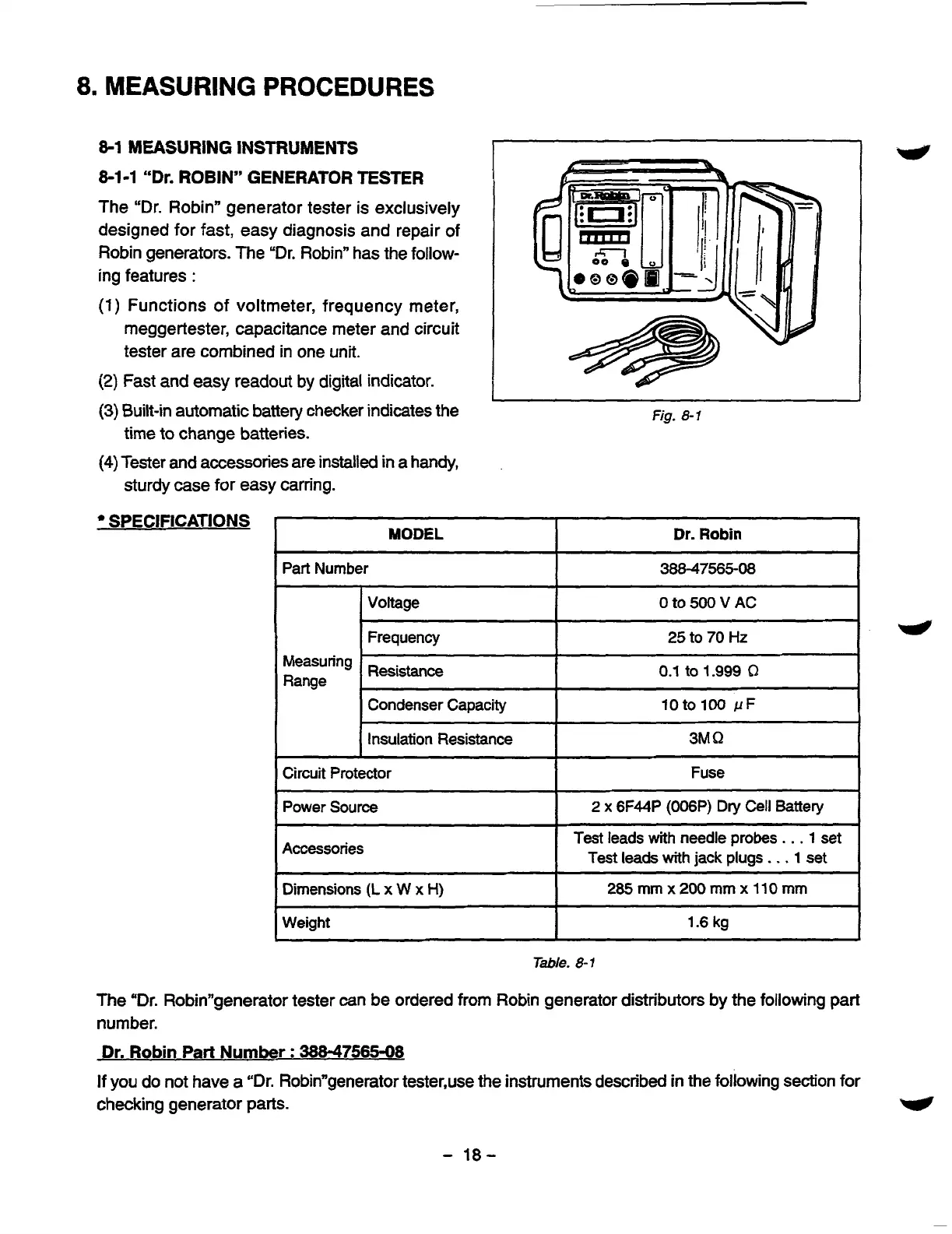

8.
MEASURING PROCEDURES
8-1
MEASURING INSTRUMENTS
8-1-1
“Dr.
ROBIN” GENERATOR TESTER
The “Dr. Robin” generator tester is exclusively
designed for fast, easy diagnosis and repair of
Robin generators.
The
“Dr. Robin” has the follow-
ing features
:
(1)
Functions of voltmeter, frequency meter,
meggertester, capacitance meter and circuit
tester are combined in one
unit.
(2)
Fast and easy readout
by
digital indicator.
(3)
Built-in automatic battery checker indicates the
time to change batteries.
sturdy case for easy carring.
(4)
Tester
and
accessories are installed
in
a handy,
SPECIFICATIONS
w
Fig.
8-1
MODEL
Dr.
Robin
Part Number
388-47565-08
Voltage Oto500VAC
1
25
to
70
Hz
~ ~~ ~
Measuring
Range
Resistance
0.1
to
1.999
Q
I
Condenser Capacity
I
10to100
pF
Power Source
2
x
6F44P
(006P)
Dry
Cell
Battery
Accessories
Dimensions
(L
x
W
x
H)
285
mm
x
200
mm
x
110
mm
Weight
1.6
kg
Test leads
with
needle
probes . . .
1
set
Test
leads
with
jack plugs
.
.
,
1 set
Table.
8-1
The “Dr. Robinngenerator tester can be ordered from Robin generator distributors by the following
part
number.
Dr.
Robin
Part
Number
:
38847565-08
If
you
do not have a “Dr. Robinngenerator tester,use the instruments described in the following section for
checking generator parts.
-
18-
