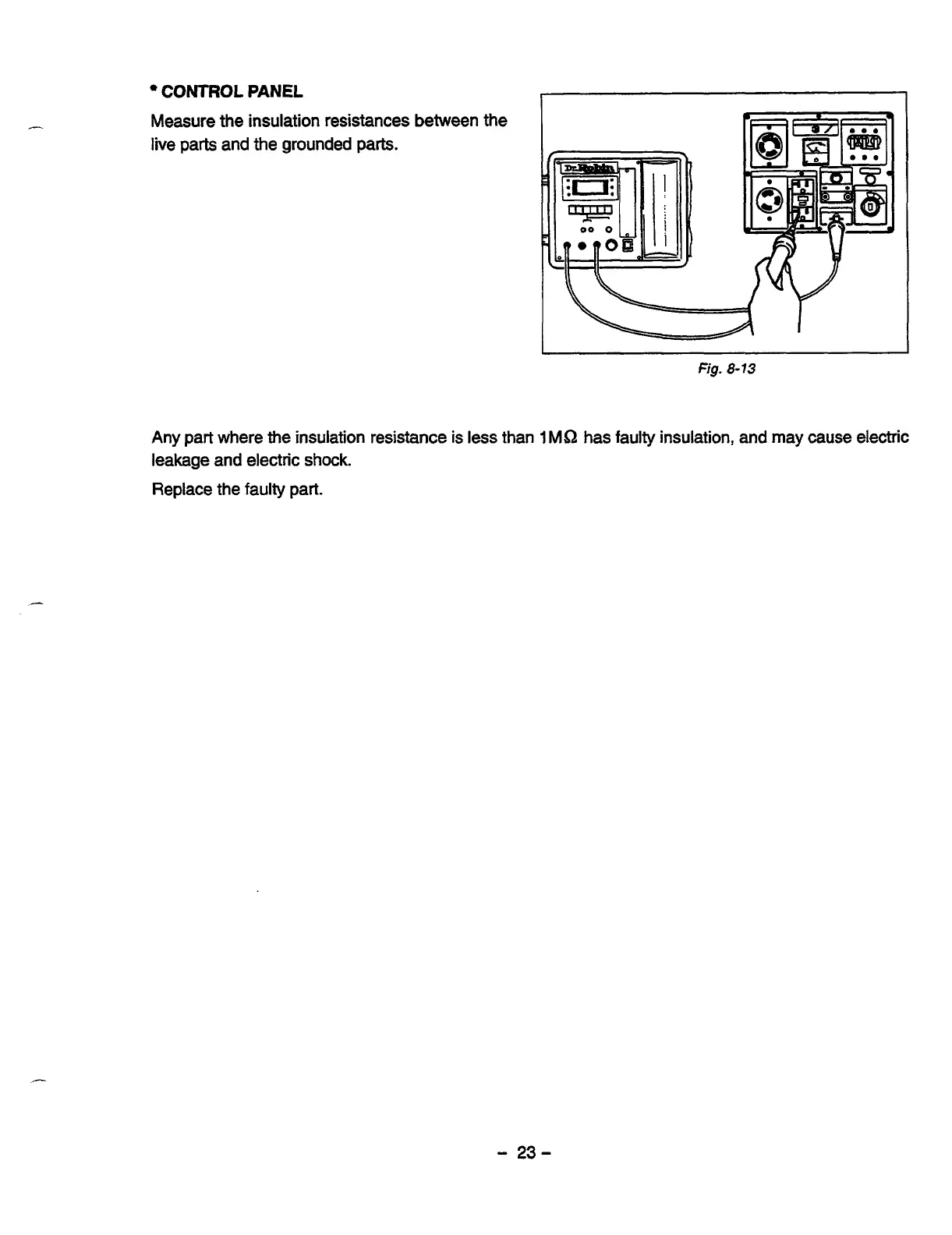

CONTROL
PANEL
Measure the insulation resistances between the
live parts and the grounded parts.
=4
I
fig.
8-13
Any part where the insulation resistance
is
less than
1
MQ
has
faulty insulation,
and
may cause electric
leakage and electric shock.
Replace the faulty part.
-
23-
25
27
Table of Contents
Default Chapter
2
Table of Contents
2
1 Specifications
4
2 Perfomance Curves
5
Model Rgd5000
5
DC Output
5
3 Features
6
4 General Description
7
External View
7
Control Panel
8
LOCATION of SERIAL NUMBER and SPECIFICATION NUMBER
9
5 Construction and Function
10
Construction
10
Function
10
Generator Operation
14
6 Safety Precautions
17
8 Measuring Procedures
21
Measuring Instruments
21
Ac Output Measuring
24
DC Output Measuring
24
Measuring Insulation Resistance
25
9 Checking Functional Members
27
Voltmeter
27
Ac Receptacles
27
No-Fuse Breaker
27
Stator
28
Rotor Assembly
29
Condenser
30
Diode Rectifier
30
10 Disassembly and Assembly
32
PREPARATION and PRECAUTIONS
32
SPECIAL TOOLS for DISASSEMBLY and ASSEMBLY
32
Assembly Procedures
42
Troubleshooting
55
No Ac Output
55
Range of Applications
58
4
Based on 1 rating
