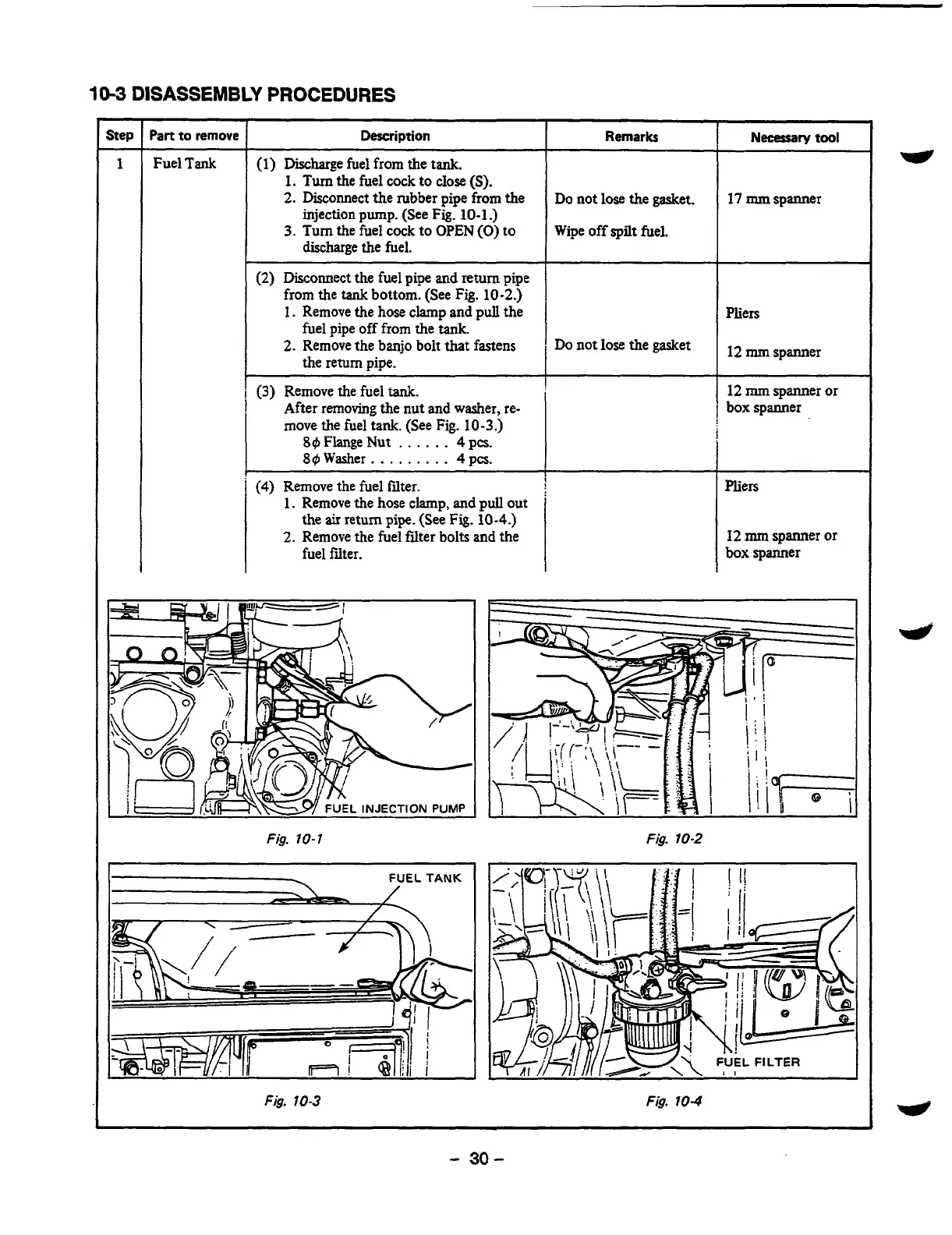

10-3 DISASSEMBLY PROCEDURES
7
Step
1
-
Part to remove
Fuel Tank
~~
Description
Necessary tool
Remarks
(1) Discharge fuel from the tank.
1. Turn the fuel cock to close (S).
2. Disconnect the rubber pipe from the
discharge the fuel.
Wipe off spilt fuel.
3. Turn the fuel cock to OPEN (0) to
injection pump. (See Fig. 10-1.)
17 mm spanner
Do not lose the gasket.
(2) Disconnect the fuel pipe and return pipe
from the
tank bottom. (See Fig. 10-2.)
1. Remove the hose clamp and pull the
12 spanner
Do not lose the gasket
2. Remove the banjo bolt that fastens
Pliers
(3) Remove the fuel tank.
12 mm spanner or
After removing the nut and washer, re-
i box spanner
move the fuel tank. (See
Fig. 10-3.)
89 Flange Nut 4 pcs.
89Washer.
........ 4 pcs.
fuel pipe off from the
tank.
the return pipe.
:
......
I
(4) Remove the fuel fiter. Pliers
1. Remove the hose clamp, and pull out
the
air return pipe. (See Fig. 10-4.)
2. Remove the fuel filter bolts and the
box spanner
fuel fiter.
12
mm spanner or
Fig. 10- 1 F& 10-2
-I
Fig. 10-3 Fig. 10-4
- 30-
