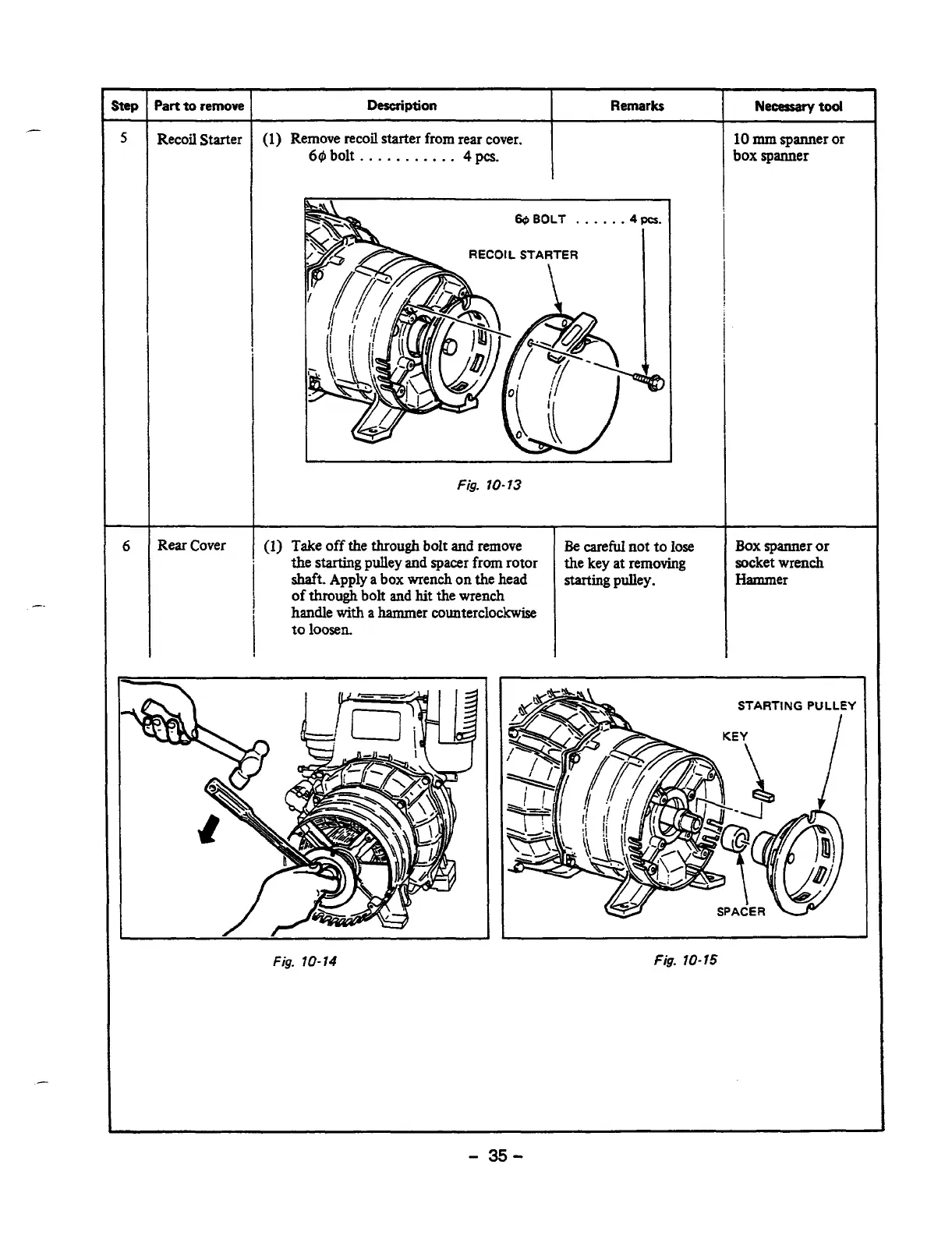

Robin RGD500 User Manual

Part to remove
Recoil Starter
-
6 Rear Cover
Description Remarks
(1) Remove recoil starter from rear cover.
69 bolt . . . . . . . . . . . 4 pes.
1
Fig. 10-13
1
(1) Take off the through bolt and remove Be careful not to lose
the
starting pulley and spacer from rotor the key at removing
shaft. Apply a box wrench on the head starting pulley.
of through bolt
and hit the wrench
handle
with a hammer counterclockwise
I !
toloosen
I
f
Fig. 10-14
Necessary tool
10 mm spanner or
box spanner
Box spanner or
socket wrench
Hammer
Fig. 10-15
- 35-
