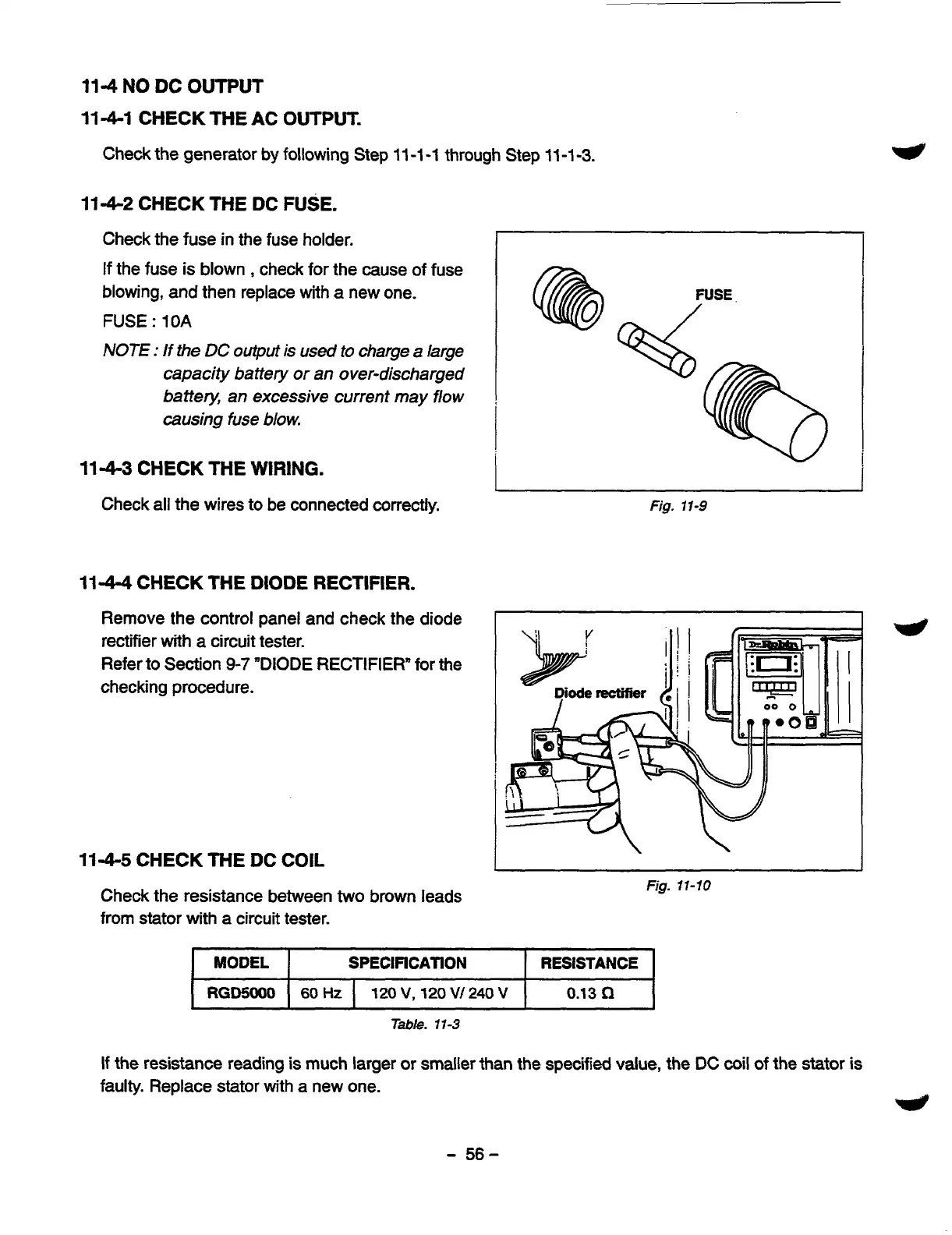

114
NO
DC
OUTPUT
1141 CHECK THE AC OUTPUT.
Check the generator
by
following Step
11
-1
-1
through Step
11 -1
-3.
1142 CHECK THE DC
FUSE.
Check the fuse in the fuse holder.
If the fuse is blown
,
check for the cause of fuse
blowing,
and
then replace with
a
new one.
FUSE
:
10A
NOTE
:
If
the
DC
output
is
used
to
charge a large
capacity battery or an over-discharged
battev, an excessive current may
flow
causing
fuse
blow.
1143 CHECK THE
WIRING.
Check all the wires to be connected correctly.
1144 CHECK THE DIODE RECTIFIER.
Remove the control panel and check the diode
rectifier
with
a circuit tester.
Refer to Section
9-7
"DIODE
RECTIFIER" for
the
checking procedure.
1145 CHECK
THE
DC COIL
I
Check the resistance between
two
brown leads
from stator with a circuit tester.
Fig.
11-70
MODEL
RESISTANCE
SPECIFICATION
RGD5000
0.13
Q
60
Hz
120
V,
120
V/
240
V
-
Table.
11-3
If
the resistance reading is much larger or smaller than the specified value, the
DC
coil of the stator is
faulty. Replace stator with a new one.
*
-
56-
