13
87. Identify and fit reinforcing channel (No.64, ID Chart) to
side and roof glazing bar using previously inserted bolts.
88.Fit eaves joint plates (No. 65, ID Chart) using short bolts.
89.Fit square section reinforcing frame (No. 66, ID Chart)
using M6 x 35mm bolts (No. 67, ID Chart).
90. Assemble the extensions using established procedure.
91.Offer up extension to main building and secure with
short bolts.
Your greenhouse is now ready to be secured in position
and glazed.
PARTITIONS
Partitions may be fitted at any glazing bar position in
the greenhouse. All that is requir
ed is to fit special
roof-end and corner glazing bars in lieu of the
conventional glazing bar, taking care to face the way
round required. The special roofend and corner
glazing bars are provided with a slot to allow the
ridge, gutter and base rail to pass through. If however
the partition is required on a joint between a main
building and extension module, the reinforcing frame
normally fitted between two buildings is no longer
used. It is imperative in this situation that the partition
faces the main building. (See diagram).
92.Build up partition as a plain end after deciding on the
floor position. (See page 8 for door assembly).
METHOD OF ERECTION: ROYALE
Royale 8ft model single door
93.Clad as for plain end. Because the door is plain (no
handle or lock fitted), it can be made to slide in either
direction. After deciding which way you prefer, glaze
the gable end, leaving the two top shapes. Fit single
header to track (inner and outer) and position on top
of door posts. Secure with attachment plates using a
special double one between the two. You can then
complete the glazing not forgetting the ‘Z’ trim. Make
up the door drilling two 6mm holes for the handles in
the side required.
NB. Door can be fitted in either middle bay.

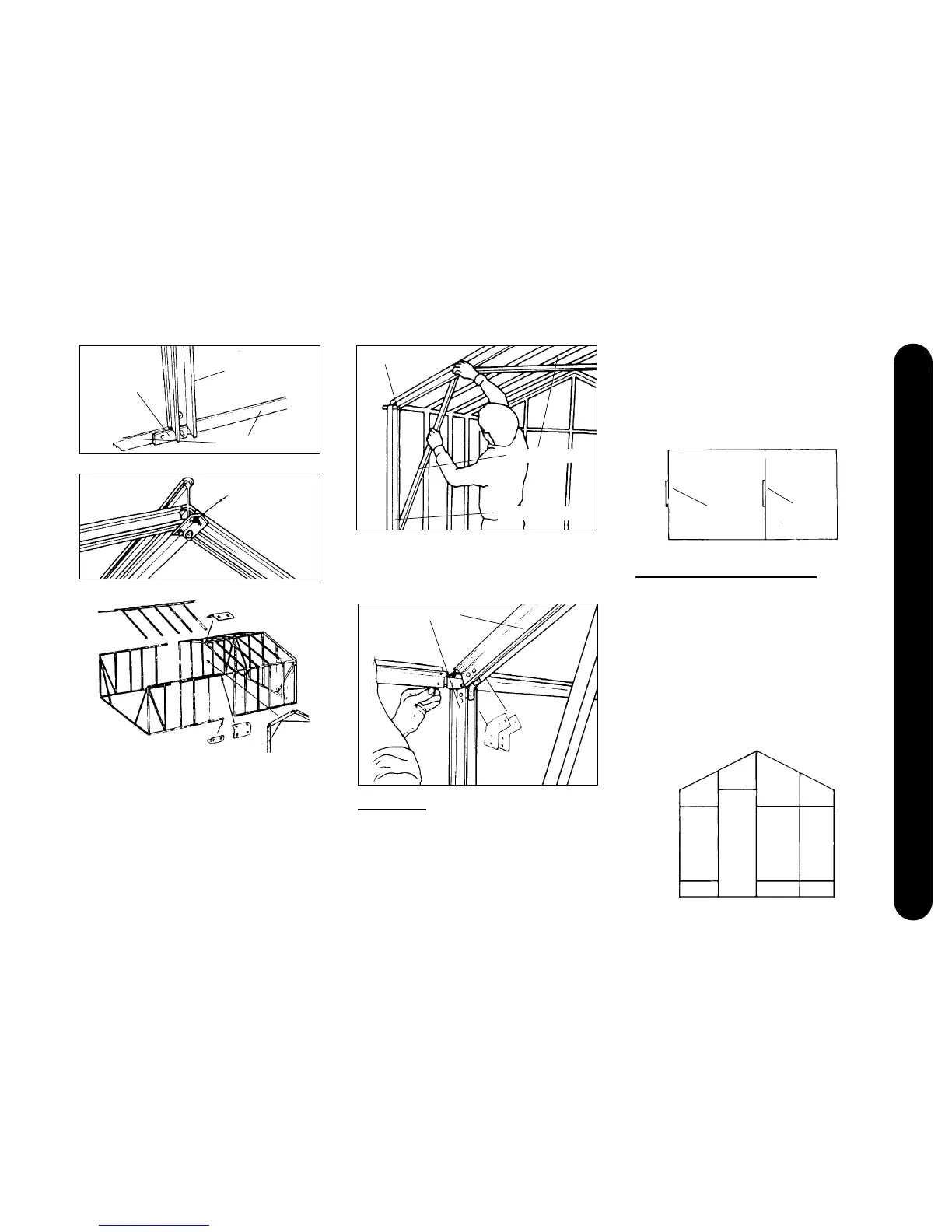

Extensions & Partitions
Ridge joint plate
Eaves joint plates
Reinforcing frame
Reinforcing channel
Reinforcing channel
Eaves joint
plates
Main module
Door Door
Extension
Base rail
joint plate
Side base rails
reinforcing
channel
Shape
A
Shape
A
610
X
1374
610
X
1374
610
X
1374
Shape
D
Shape
I
610 x 305
610 x 305
610x305
