LOUVRE INSTALLATION
D361 Louvre Kit
INSTALLATION
1 Screw self-tapping screws through holes in the top
and bottom cill members into the ‘C’ groove of the
side jambs to form a complete frame.
2 From outside the greenhouse, fit the frame in place,
fixing into position using the plastic bar caps and
screws.
3 Open the louvre and slide glass blades into position
from inside the greenhouse. To avoid excessive
movement of glass, bend the retaining clips so that
the louvre blade is firmly gripped.
Louvre Installation Instructions

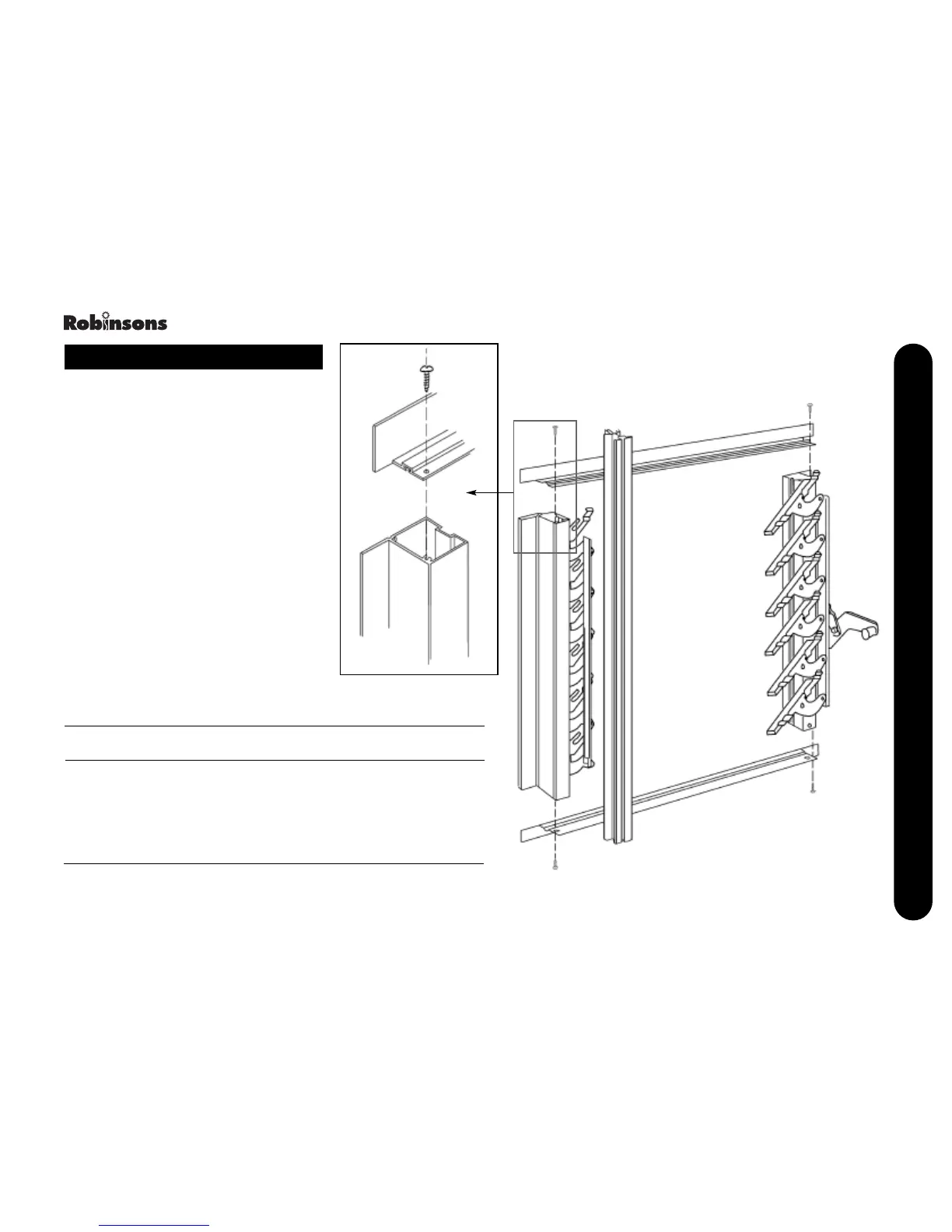

Exploded View
No.6 x 12 screws
Top cill
Left hand Glazing Bar
Left hand
Side Jamb
Right hand
Side Jamb
Right hand Glazing bar
(not shown but as left
hand bar)
Bottom cill
CONTENTS OF KIT
Part No. Description No. Required
- Instructions one
D168 Louvre jamb set one
D166 Louvre side member two
D165 Louvre top/bottom (rubber fitted) one (pair)
D362 Louvre smalls pack consisting of:
FS 6013 N0.6 x 12 self-tapping screws four
D729 T/G Louvre glass - 100 x 525mm (4mm thick) six
