10 SLAT STAGING ASSEMBLY INSTRUCTIONS
10-Slat - 37” · 94cm Deep Shelf
May be fixed to aluminium greenhouse glazing bars or
direct to a wall. Extra support is supplied for this
staging, It is fixed to the side glazing bar
and hooked
into the
side
of the
staging. This
should be done at
each end of the staging.
Greenhouse Fixing
Using the nut groove in aluminium glazing bars at
approx. 2ft (60cm) centres. Use the appropriate cleat as
indicated.
ONE
Fix the wall cleats using cropped-
head bolts (ensuring that
they are correctly fully
engaged in the nut
groove) or using wall
plugs and
screws as
appropriate.
Ensure
adjacent brackets
are level.
TWO
Fix the horizontal
brackets ensuring
the flanges close off
the ends of the
slats. Secure the top
end of the tubular
brace to the single
hole near the end
of the bracket.
Position and fix the
lower end of the
brace so that the
bracket is level.
Fixing into greenhouse
corners where there is no
nut groove
The glass must be removed
prior to drilling 7mm holes
in the glazing bar to accept
the offset cleat and tubular
brace. This will provide
clearance for typical
greenhouse bracing. In rare
cases it may be necessary
to shorten the length of the slats using a hacksaw.
THREE
Secure slats to
the horizontal
brackets as
shown. The
bolt heads
slot into the
central groove
in the
underside of
each slat.
Feed in extra
bolts, one for
each end and one for the centre.
FOUR
The central
horizontal bracket is
mounted with flat
top on to which the
slats are fixed. The
second of each
pair of holes is only
used for joining slats
(see below). Once all the
slats have been assembled,
check for squareness and then securely tighten all nuts
with a 10mm spanner or nut driver.
Joining two
sections of staging
The offset cleat at
the join has to be
replaced with small
intermediate cleat.
The horizontal
bracket is then
turned over so that
the flat top
supports the end of
the two sets of slats. Secure each slat with a bolt.

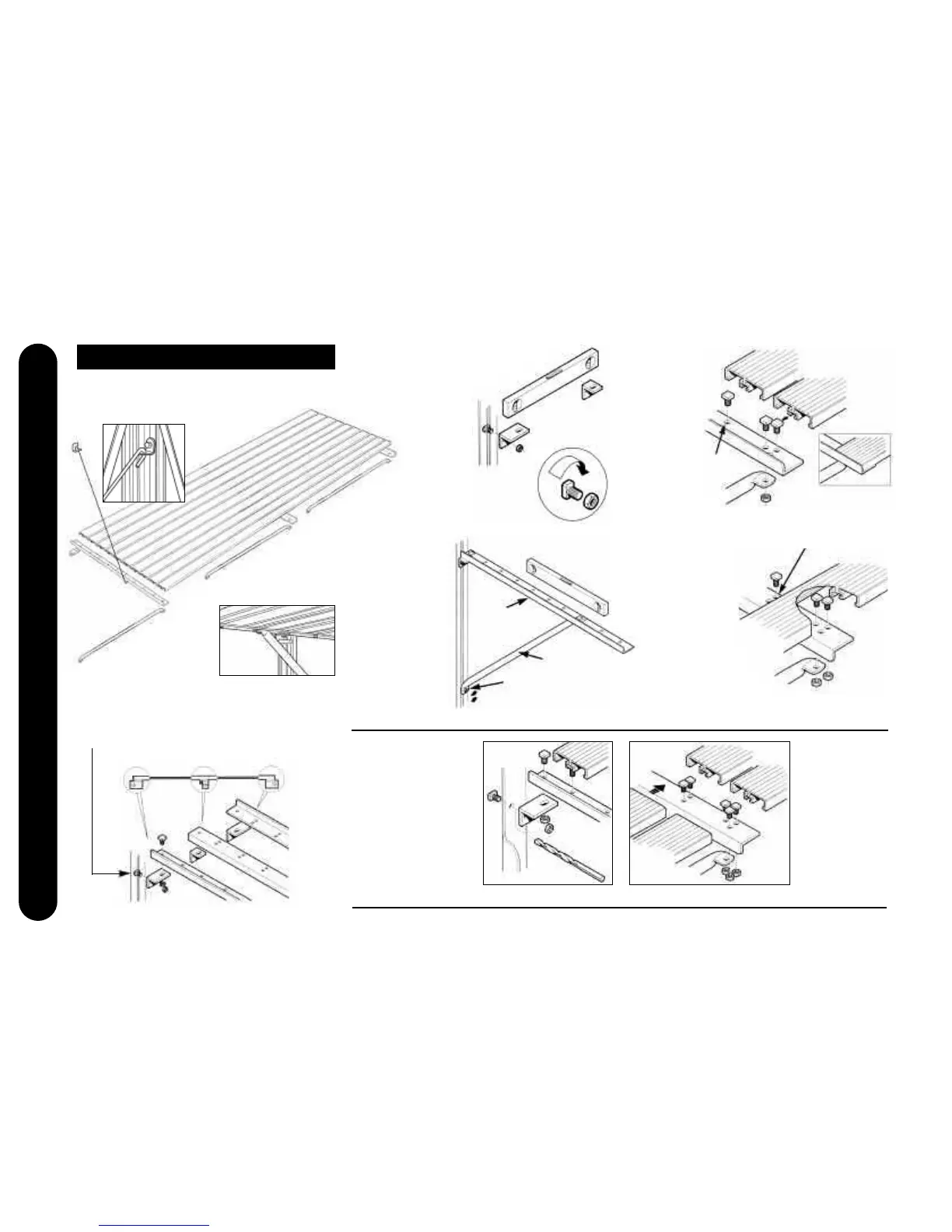

Exploded View
Cropped-head bolt.
The head must be
turned to engage
before tightening.
Horizontal
bracket
Tubular
brace
Cropped-head
bolt
Use one hole
Use one hole
