3 SLAT STAGING ASSEMBLY INSTRUCTIONS
3-Slat - 11” · 28cm Deep Shelf
May be fixed to aluminium greenhouse glazing bars or
direct to a wall.
ONE
Fix the horizontal
brackets to aluminium
greenhouse glazing
bars spaced at approx.
2ft (60cm) centres
using cropped-head
bolts. Ensure these
are correctly engaged
in the nut groove
before tightening.
Ensure adjacent
brackets are level.
Temporarily secure the
top of each tubular
brace to the end of
the horizontal bracket.
Position and fix the
lower end of each
brace so that the
bracket is level.
TWO
Feed bolts as required into central groove on
underside of slat.
Bolt requirement:
Front slat - 1 long bolt each end, plus 2 long bolts for
each mid-bracket.
Other slats - 1 short bolt for each bracket.
Secure each slat in turn starting from one end (see
detail A). On front slat ensure that the long bolts go
through the tubular braces.
A short bolt (beyond end of slat) completes fixing of
outer braces.
THREE
Joining two sections
The shelf may be easily extended as required by
joining slats on one
bracket.
FOUR
At ends of runs
Push end bungs
into slat to
finish.
Remove cut
out, with sharp
knife, on bung for
front slat to clear bolt
head.

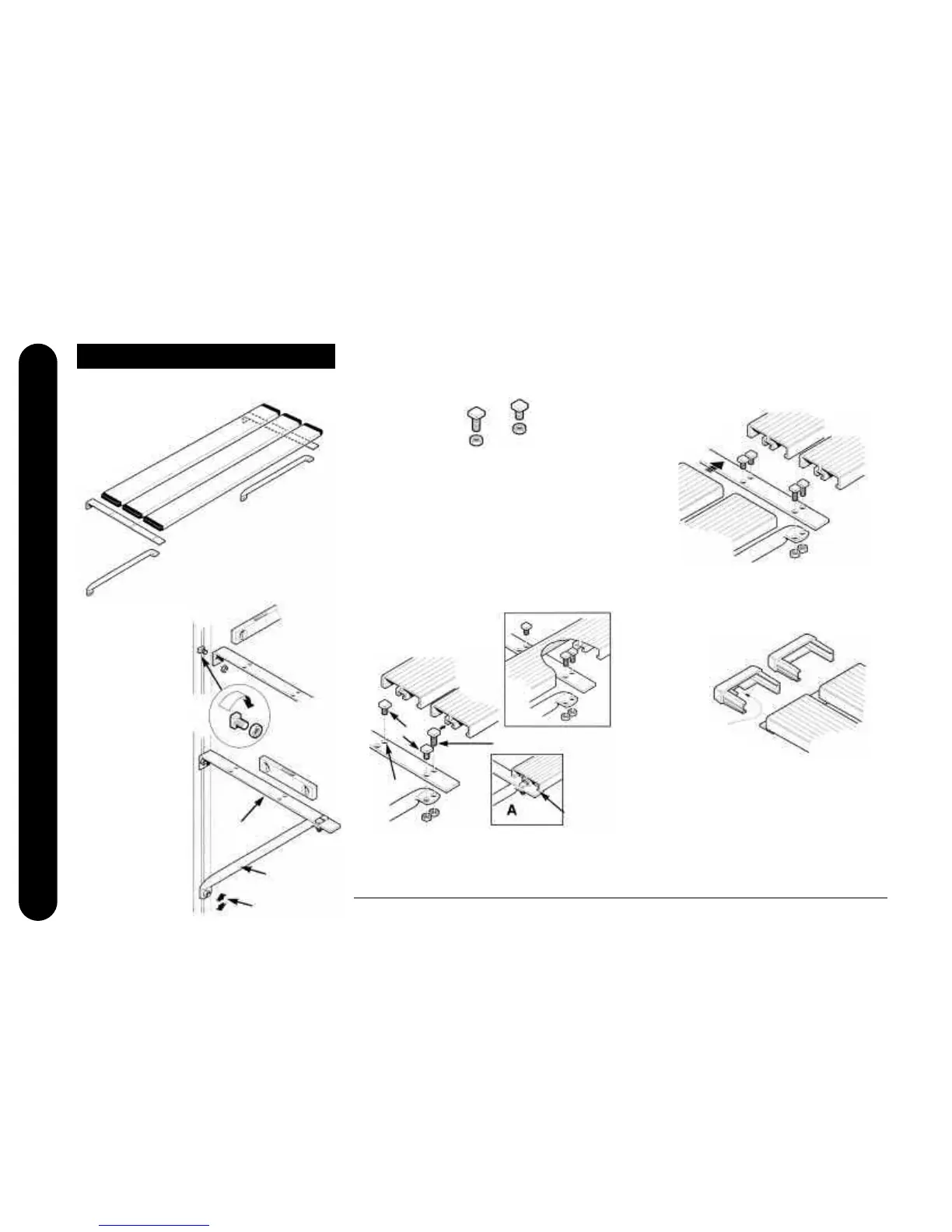

Exploded View
Cropped-head
bolt. The head
must be turned
to engage before
tightening
Horizontal
bracket
Use one hole
Long bolt
Long bolt
M6 x 15mm
Short bolt
M6 x
10mm
Short bolt
Tubular
brace
Cropped-head bolt
